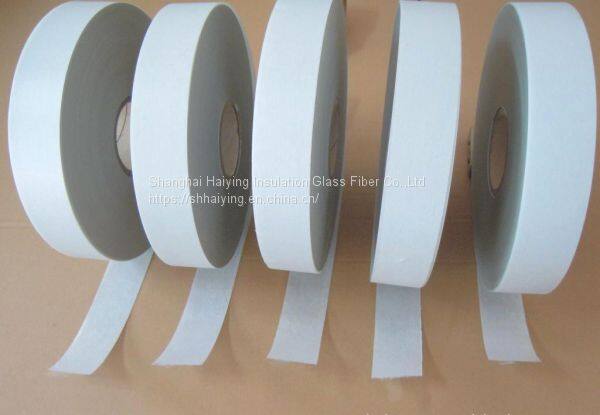

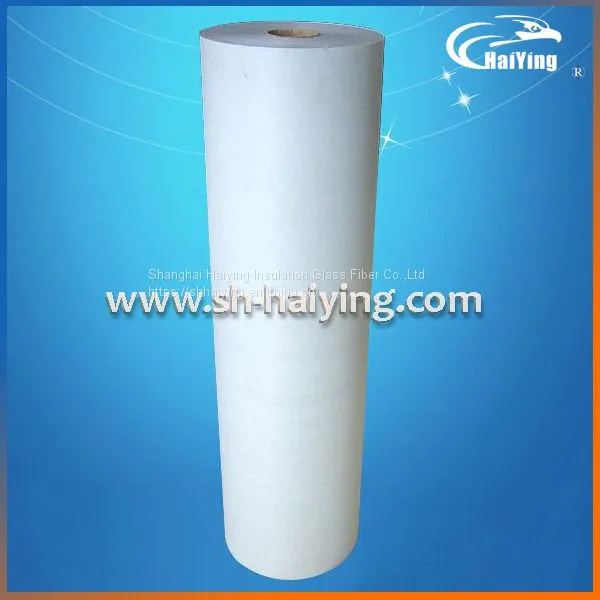

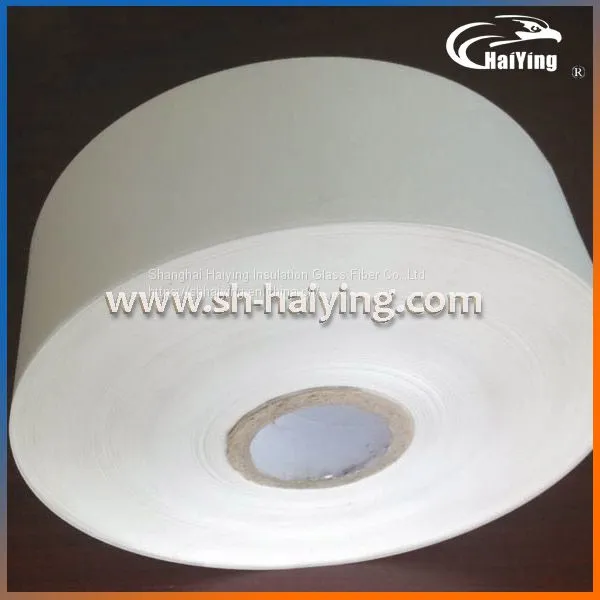

DMD-Dacron fabric/Polyester film/Dacron fabric
combination insulation material
Structure:
DMD consists of 6020 transparent polyester film or 6021 milky polyester film,covered on both sides with dacron non-woven fabric. The adhesive is acid-free and heat-resistant.
Properties:
DMD has excellent electrical and mechanical properties. Thanks to its smooth surface DMD can be easily processed on automatic machines. The impregnation (saturation) with a high grade varnish improves the thermal stability of the combination.
Application:
DMD is used as slot- and phase- insulation for low voltage motors or as interlayer insulation for transformers.

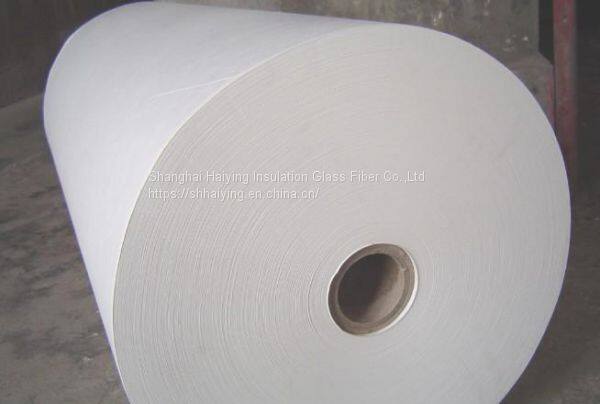

Supply:
Inner core: 76 mm.
Weight/Roll: 50KGS to 100KGS
Width: die-cut different width upon customer's demand.
Color: white
Storage:
We recommend to storage in dry atmosphere with no dust.
Technical Data:
| Properties | Units | Value | ||||||||
| Thickness | mm | 0.13 | 0.15 | 0.18 | 0.20 | 0.23 | 0.30 | 0.35 | 0.45 | |
| Tolerance | mm | ±0.013 | ±0.015 | ±0.018 | ±0.02 | ±0.02 | ±0.03 | ±0.03 | ±0.04 | |
| Weight | g/m2 | 145±15 | 190±20 | 220±20 | 260±25 | 280±25 | 350±35 | 425±40 | 560±50 | |
| Tensile strength | MD No Bending | N/10mm | >=90 | >=110 | >=140 | >=160 | >=200 | >=300 | >=350 | >=400 |
| MD After Bending | N/10mm | >=80 | >=90 | >=105 | >=120 | >=150 | >=200 | >=300 | >=350 | |
| TD No Bending | N/10mm | >=80 | >=90 | >=105 | >=120 | >=150 | >=200 | >=300 | >=350 | |
| TD After Bending | N/10mm | >=60 | >=70 | >=90 | >=100 | >=120 | >=150 | >=200 | >=250 | |
| Elongation | MD No Bending | % | >=20% | |||||||
| TD No Bending | % | >=40% | ||||||||
| Breakdown voltage | KV | >=4 | >=6 | >=7 | >=9 | >=10 | >=15 | >=18 | >=22 | |
| Bonding Strength (room temperature) | / | No delamination | ||||||||
| Bonding Strength ( 155±2ºC 10minutes) | / | No delamination, No Bubble | ||||||||
