Specifications
CO2 Laser Cutter for Polyester FilmCo2 RF laser
Laser power: 30W,55W,70W
Servo motor,Ball screw

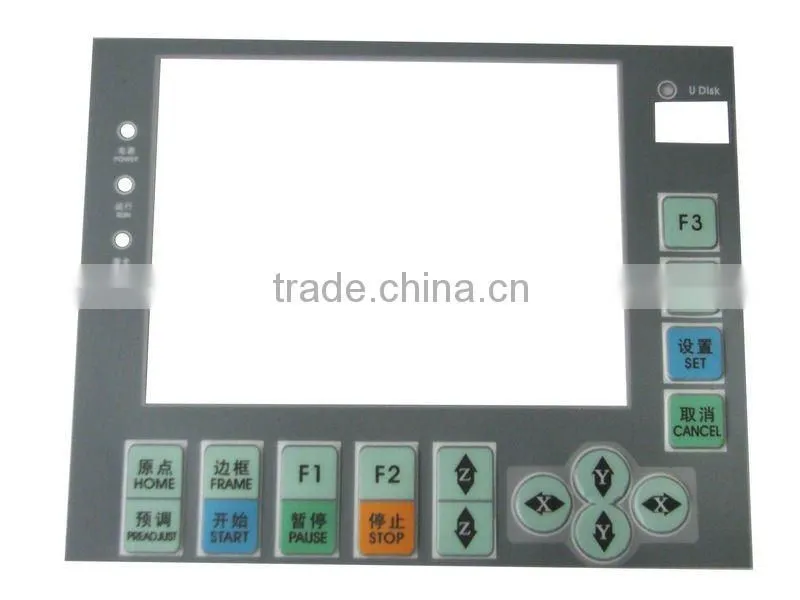

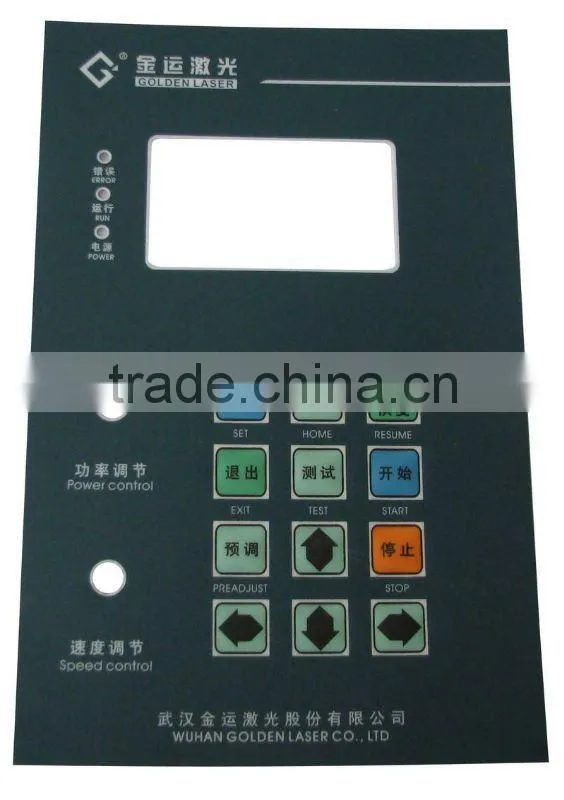

Cutting switch membrane
CO2 Laser Cutter for Polyester Film
JMSJG-8550 High Precision Laser Cutting Machine | |
Application | |
|

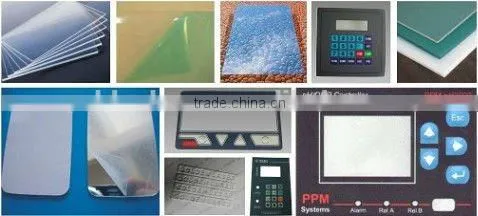

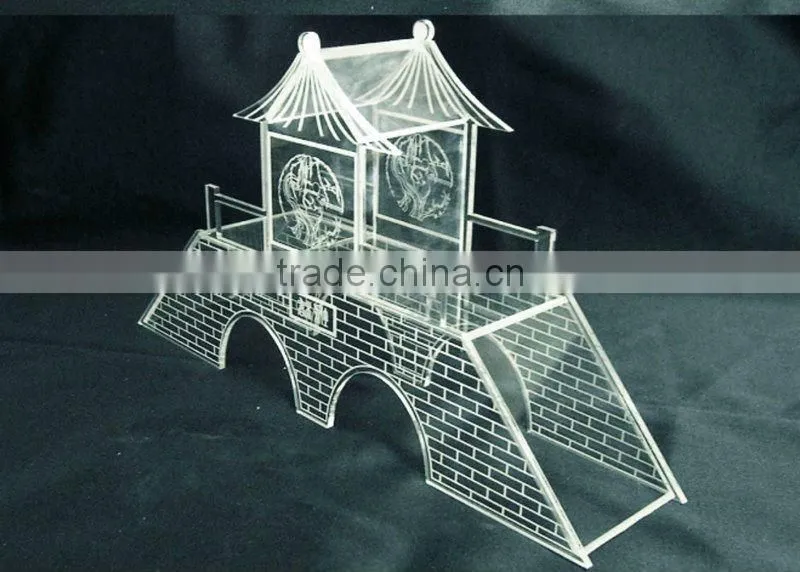

Applicable Materials: Cutting Non-metal materials such as polyester film, PC film (Polycarbonate Film), Membrane Panels, PET, PS, ET, acrylic, wood, veneer, paper, etc. Applicable Industries: non-metal materials cutting industry, such as advertising, crafts, switch membrane, membrane panels, models, etc. | |
Machine Features | |
|
1) With steel girder structure, resistance to deformation ability, stable and durable performance.
2) Precision ball screw driving system and servo motor system ensure high cutting precision.
3) CO2 RF metal laser tube, high quality laser beam, stable power and long working life. Low use-cost, maintenance-free and high efficiency.
4) Zinc-iron honeycomb working table (Strip panel working table optional), with funneling exhaust system, a very good air suction system. Complete exhaust and filtering of cutting emissions possible.
5) Smart nesting function enhances utilization rate of processing material.
6) 5 inches LCD CNC system, online and offline control optional, easy to use. | |
Main Technical Parameter | |
Laser Type: |
CO2 RF metal laser tube |
Laser Power: |
30W / 55W (Air Cooling) / 70W (Water Cooling) |
Working Area: |
850mm×500mm |
Working Table: |
Zinc-iron honeycomb working table |
Cutting Speed: |
Adjustable |
Repeating Positioning Accuracy: |
±0.1mm |
Cooling System: |
Constant temperature water chiller |
Motion System: |
Servo motor, Ball screw driving system, Offline motion control system |
Power supply: |
AC110V-220V 50/60Hz |
Format Support: |
AI, BMP, PLT, DXF, DST, etc. |
Standard collocation: |
Mini air compressor, 550W exhaust system |
Optional collocation: |
50W CO2 DC glass laser tube, Strip panel working table |
|
Working area and laser power can be customized as your requirement. | |
