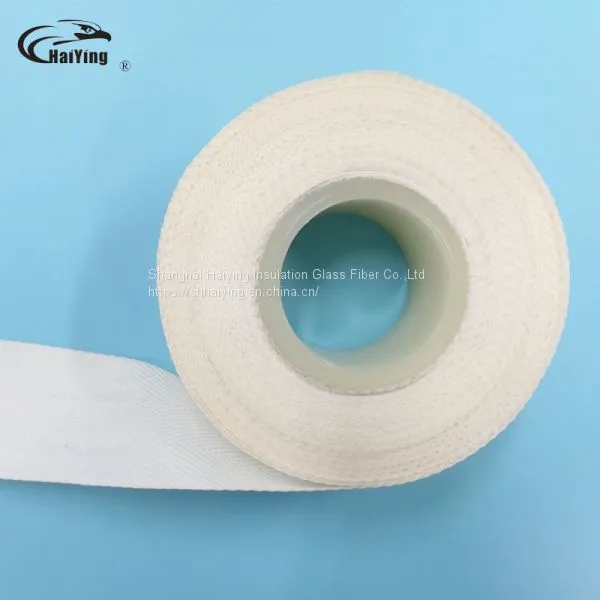

Polyester heat shrink tape is woven with polyester yarn. The tape has the advantages of heat resistance,insulation and heat shrink.
This tape is widely used in both warp and filling direction of these selvage edge tapes. Very sharp corners and compound curves can be wound without buckling and puckering. A very tight wrap is obtained since this tape shrinks in both the longitudinal and transverse direction. It is the ideal insulating binding materials for manufacturing and repairing of electrical machinery, transformer and so on.
Specification of polyester plain woven tape
| Item | Yarn (D*strand) |
Construction (ends/cm) |
Breaking strength (N/10*100mm) |
Width(mm) | Thickness (mm) |
||
| Warp | Weft | Warp | Weft | ||||
| HYDD100-25 | 167D | 167D | 27±2 | 15±1 | ≥100 | 25±2 | 0.1±0.01 |
| HYDD100-50 | 167D | 167D | 27±2 | 15±1 | ≥100 | 50±2 | 0.1±0.01 |
| HYDD180-25 | 167D*2 | 167D*2 | 27±2 | 15±2 | ≥200 | 25±2 | 0.18±0.018 |
| HYDD180-50 | 167D*2 | 167D*2 | 27±2 | 15±2 | ≥200 | 50±2 | 0.18±0.018 |
*Special specification are available upon request.
*Remark: Polyester yarn can be shrunk with the application of a heat gun, in an oven or autoclave, or they may be shrunk during the dip and bake cycle. The rate of shrinkage can reach 20%.
