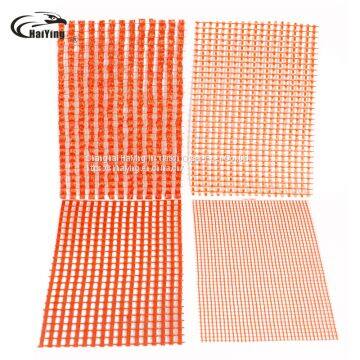

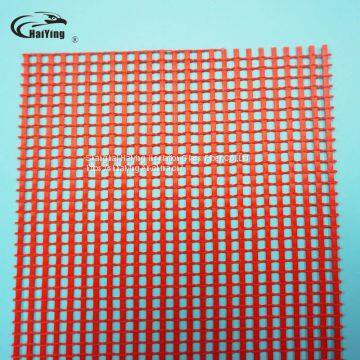

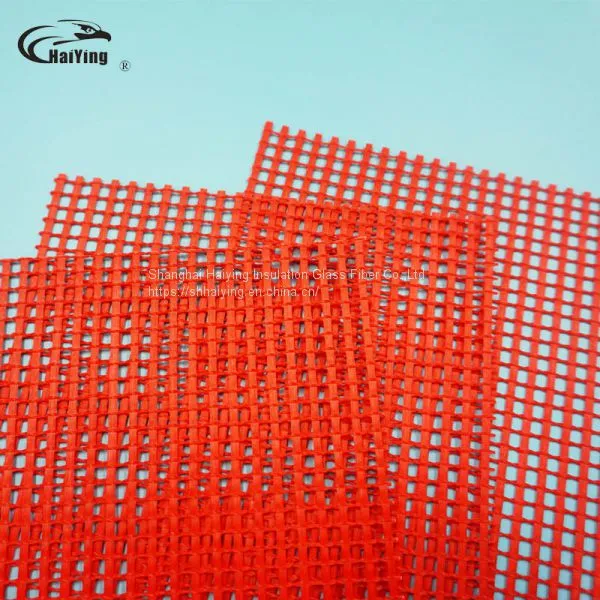

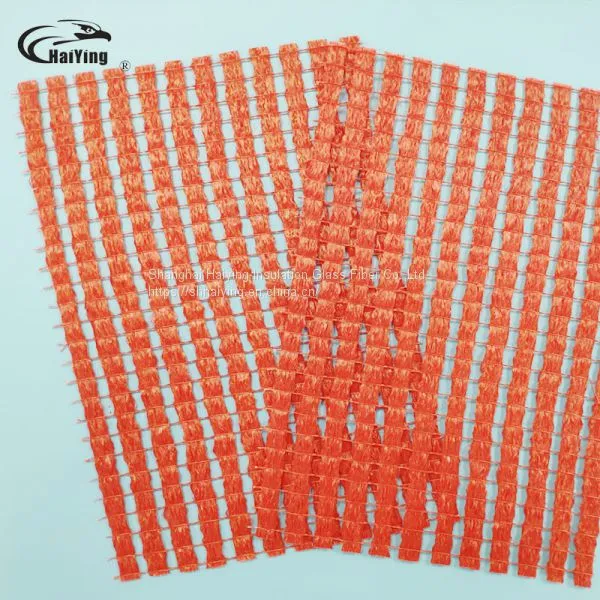

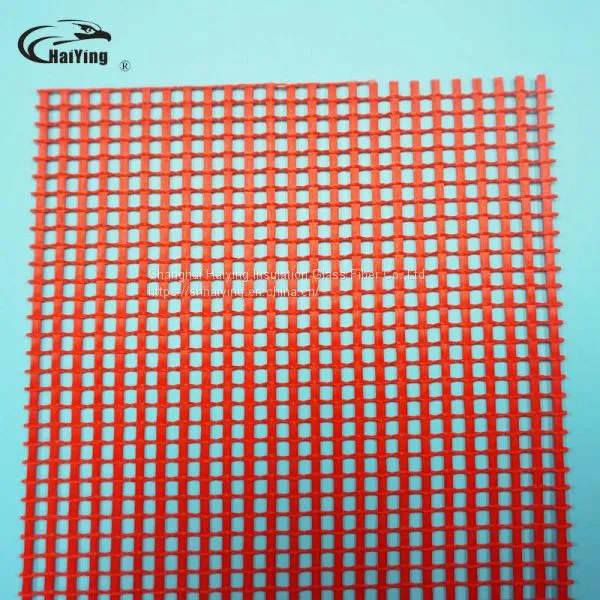

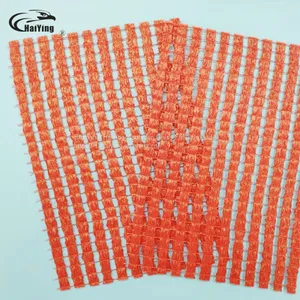

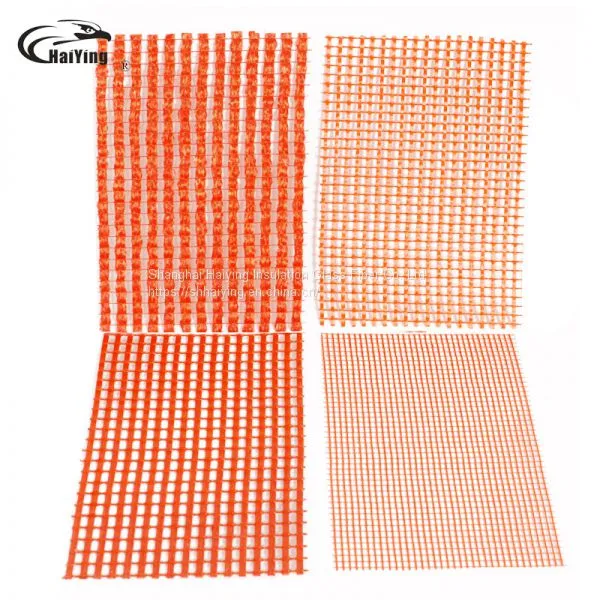

Epoxy Resin Impregnated Glass Fiber Mesh for Transformer
- 1000000 Square Meter / Square Meters per Month
- Shanghai
- T/T L/C D/P D/A Other
- 7 days
You May Like
Product Details
| Brand Name | HAIYING | Place of Origin | China | |
| Model Number | 50354 |
Product Description
Epoxy Resin Impregnated Glass Fiber Mesh For Transformer
"Haiying" Epoxy Resin Impregnated Glass Fiber Mesh is a kind of insulation reinforcing material. it is interwoven by high strength non-alkali fiberglass, then impregnating in the epoxy resin mixture, and through high temperature curing process treatment. This product exhibits excellent electrical properties, good thermal resistance of F class as well as high mechanical properties at elevated operating temperatures.
This Glass Fiber Mesh is an excellent reinforcing material. It is widely used for electrical reinforcing insulation in transformers, reactors, and other electrical machines and appliances.
Properties:
| Thermal class | - | F(155 ºC) |
| Resin content | % | 12-20 |
| Rate of sorption | % | ≤8 |
| Tensile strength | N | ≥4000(2.0mmThick) |
| Breakdown voltage(along the surface) | KV | ≥18 |
| Insulation resistance(along the surface) | Ω | ≥1×1013 |
Specification:
| Item | Thickness(mm) | Width(mm) | Package(M/Roll) |
| 50454 | 0.40±0.05 | 1000 | 100 |
| 50654 | 0.60±0.1 | 1000 | 100 |
| 51275 | 1.2±0.2 | 1200 | 50 |
| 51554 | 1.5±0.2 | 1000 | 50 |
| 51654 | 1.6±0.2 | 1000 | 50 |
| 51954 | 2.0±0.2 | 1000/1200 | 50 |
| 52098 | 2.0±0.2 | 1000/1200 | 50 |
| 52454 | 2.4±0.3 | 1000 | 40 |
Storage:
* Please put the product in the dry and ventilated place.
* Don't open up the package if you don't use it in time for avoiding soiled the product so as to ensure the insulation.
*Special specification and package are availabe upon request
