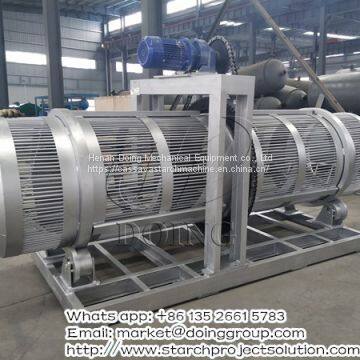

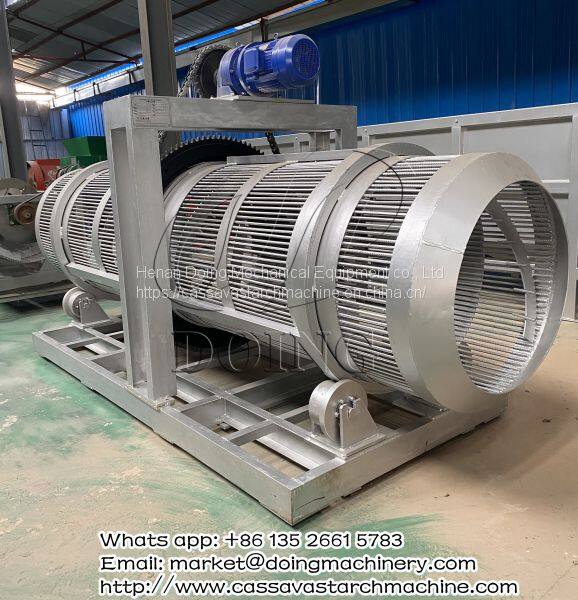

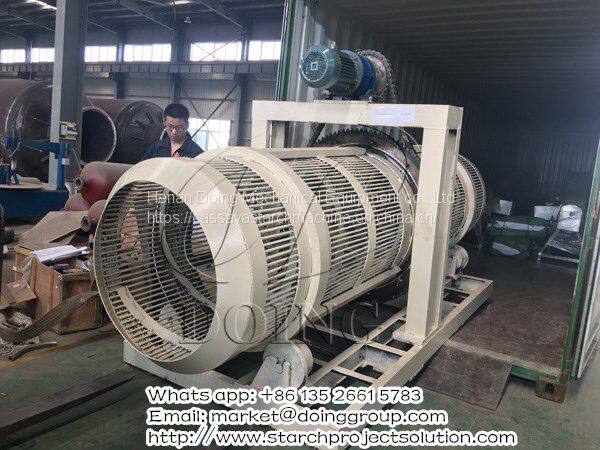

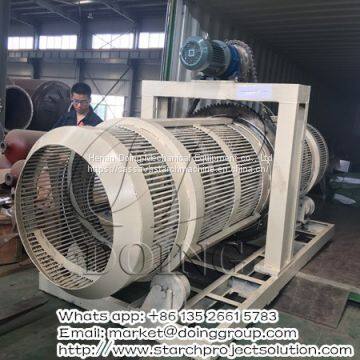

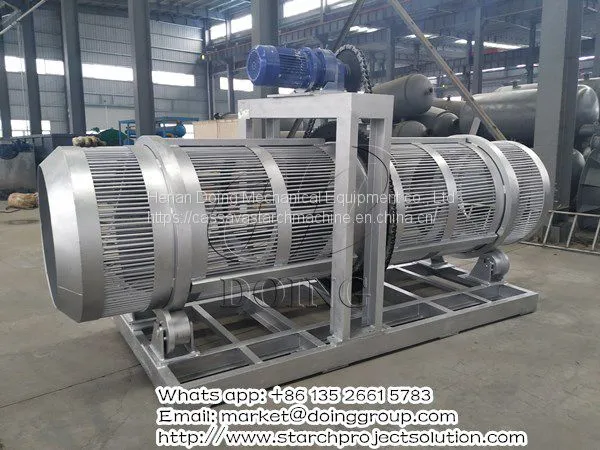

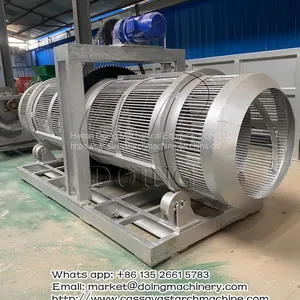

The sample introduction of dry sieve
Dry sieve widely used in impurities removal for starch production plant. It is the first step in the cleaning steps of cassava products processing process. In this step, it needn’t water. It use special design to push the raw material forward to clean raw material. Not only the cleaning effect is good, and will not damage the raw materials.
The working principle of dry sieve
It adopts multiple inner spirals structure design, through continuous stable rotation to push raw material moving forward. Due to its special design, the raw material is pushed forward after entering the dry sieve. During the process of pushing forward, the raw material will rub against the inner spirals of the dry sieve, so as to remove the impurities attached on the surface of the raw material.
The Technical parameters of dry sieve
Model |
Capacity (t/h) |
Cage diameter (mm) |
Speed (r/min) |
Roller length (mm) |
Power (kw) |
Dimension (m) |
Weight (kg) |
DYGS100 |
10-15 |
Φ1000 |
18 |
4000 |
5.5 |
40×2.2×1.5 |
2800 |
DYGS140 |
20-30 |
Φ1400 |
18 |
6000 |
11 |
6.0×2.35×1.78 |
3500 |
The advantages of dry sieve
1. Reasonable rotating speed: Because the dry sieve speed is reasonable, dry sieve overall smoothly running, so the raw materials will not be damaged.
2. The parameters are adjustable: Appropriate parameters design of the equipment could be adjusted based on raw materials features. Therefore, a single equipment can meet a variety of requirements.
3. Simple structure, easy maintenance: The structure of the dry sieve is simple, the inside and outside can be seen at a glance, so it is easy for targeted maintenance.
4. Low power consumption: The dry sieve consumes very little power, so it saves production cost.
