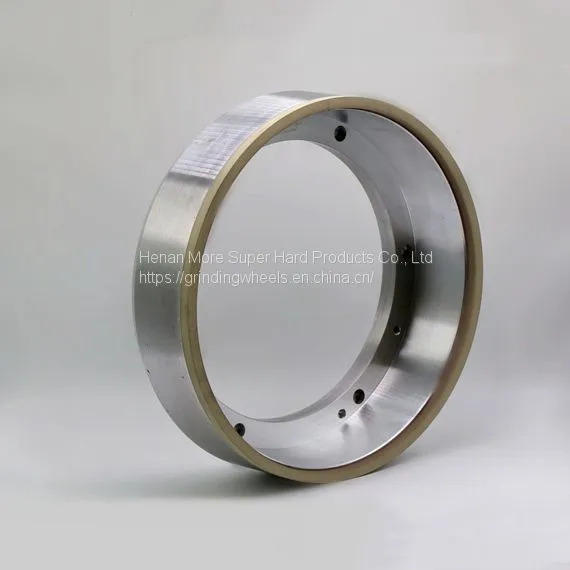

Peripheral Grinding of CBN Inserts - Vit Diamond Wheel
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
6A2T
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Grinding Wheel for Punch MachineUS$ 1 - 50MOQ: 1 Piece -
Precision Ceramic Grinding - Cylindrical Diamond WheelUS$ 1 - 50MOQ: 1 Piece
-
Bruting Girdling Natural Diamond - Ceramic Diamond WheelUS$ 1 - 50MOQ: 1 Piece
-
Crankshaft Grinding - Vit Cbn WheelUS$ 1 - 50MOQ: 1 Piece
-
Camshaft Grinding - Vit Cbn WheelUS$ 1 - 50MOQ: 1 Piece
Brand Name
moresuperhard
Place of Origin
China
Model Number
6A2T
Size
11A2-Ø200-W10-X10-H40
Type
Abrasive Disc
Peripheral Grinding of CBN Inserts - Vit diamond wheel
► Grinding Indexable inserts (tungsten carbide inserts, ceramic inserts, CBN inserts)
► Model: 6A2T, 6A2M, 11A2B, 12A2T
► Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.
Peripheral Diamond Grinding wheels are used for indexable inserts grinding.
Application Of Peripheral Diamond Grinding Wheels
Mainly used for precise edge grinding of indexable inserts (such as tungsten carbide inserts, ceramic inserts, CBN inserts).
Materials of workpiece: tungsten carbide, ceramics, metal ceramic PCD/ PCBN inserts, etc.
AGATHON:
400 Series: 400 PENTA, 400COMBI, 400SEMI, 400PERI.
350 Series: 350T B, 350COMBI
250 Series: PA250
WENDT:
400 Series: WAC715, WAC735
350 Series: WAM336
WAIDA
AP460E
Specification, Drawing, Case
| Model | Suitable Machine | D(mm) | H(mm) | W(mm) | T(mm) | X(mm) |
| WAIDA:AP460E | 200 | 60 | 6,8,10,12 | 45 | 6 | |
| Wendt:400 Series | 400 | 336 | 6,8,10,12,15 | 39 | 6 | |
| Agathon:350 Series | 350 | 200 | 6,8,10,12,15 | 27 | 6 | |
| Agathon:400 Series | 400 | 340 | 6,8,10,12,15 | 28 | 6 | |
| 6A2H | EWAG WS Series Coborn |
150 | 40 | 4 6 10 15 20 | 40 | 5 6 8 10 |
| 2A2T | WENDT WCD | 350 | 310 | 5 10 17.5 | 45 | 6 |
| Other size can be produced according to customers’ requirement | ||||||
|
Vitrified bond Diamond Wheel for PCD Peripheral Grinding | |
|
Wheel size： |
11A2-Ø200-W10-X10-H40 |
|
Wheel grit： |
D16 C125 |
| Wheel speed： |
12M/S |
|
Coolant： |
Oil |
|
Machine： |
EWAG Compact line |
|
Press: |
feed on pressure at 130-140 Nm |
| Work life： |
0.007mm/plate |
