CCD 50000rpm/min 680mm360mm50mm PCB Router

FOB Price

USD $1000 - $10000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YUSHUNLI		Place of Origin	China
Model Number	YSVC-1200

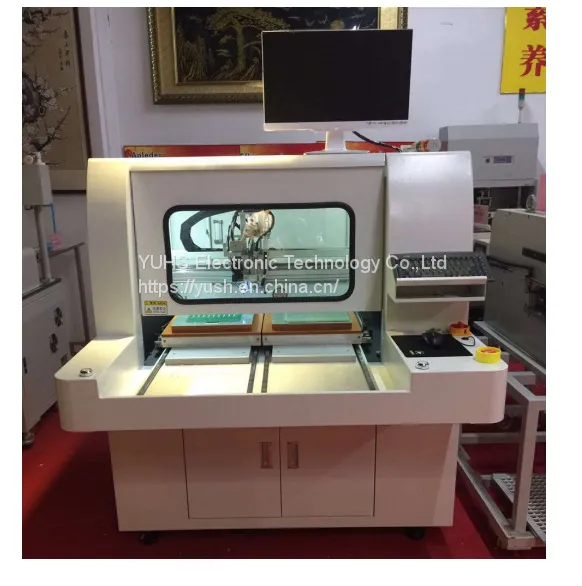

CCD 50000rpm/min 680mm*360mm*50mm PCB Router

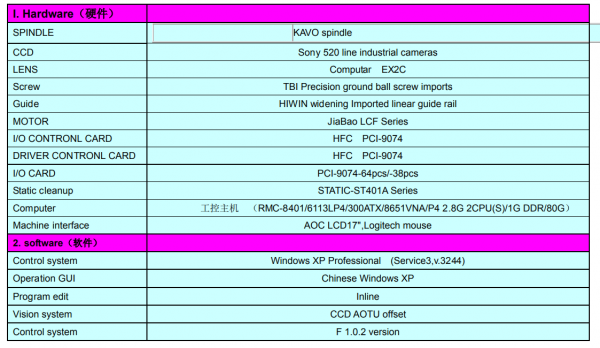

1. YSVC-1200Machine Parts List

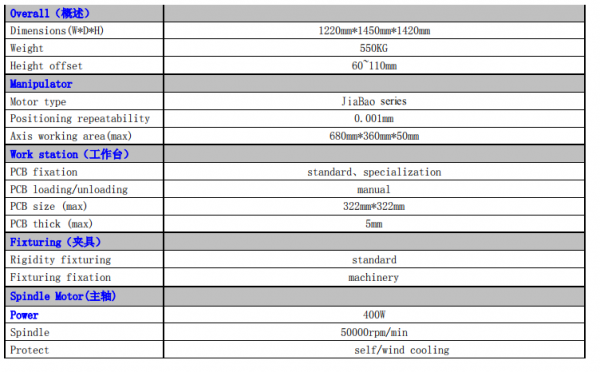

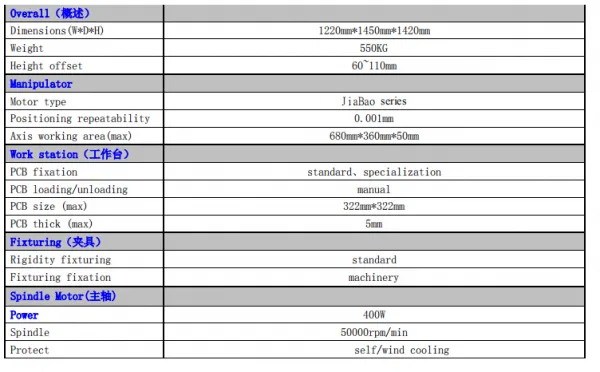

2. Performance Parameters

3. Function Description

1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.

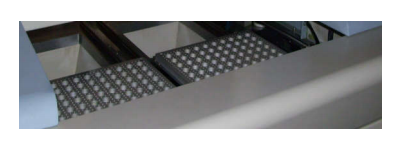

2.Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity

3.AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary

mistake before cutting

4.routng bit automatically lift and shift to next programmed point then cutting to extend the life time

of routing bit.

5. safety door industry design.

6. CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.

YUHS Electronic Technology Co.,Ltd: Contact namesunny
Chat Now; Phone86-18476810780; AddressChang'an Town, Dongguan, Guangdong
