FPC/PCB 355nm wavelength 10W UV Laser Cutting Machine
With Perfect CAM interface, it supports the mainstream of the drilling and milling file format; man-machine interface is friendly; optical path is sealed, and it also has stable and reliable integration of compact structure; with modular electronic control system, it’s easy for maintenance.
Used in the procession of the soft and hard combination board (R-F PCBA), including the soft board, soft and hard combination board, which greatly improve the equipment adaptability and lower the price.
FPC UV laser cutting machine application
1.Used in cutting a variety of flexible circuit board materials and cover film, clean and free carbonization;cutting rigid material With high quality, high speed, the thickness of up to 1mm (0.04 ").
2.Because the UV light is through decomposition and vaporization rather than melting , almost no burrs left after processing.
3.Thermal effect is small, no stratification but after cutting, the cutting edge is precise and smooth, and the sidewall is steep. Can cut a variety of substrate materials, such as silicon, ceramics, glass, etc ;
4.Various functional film of precision etching forming.

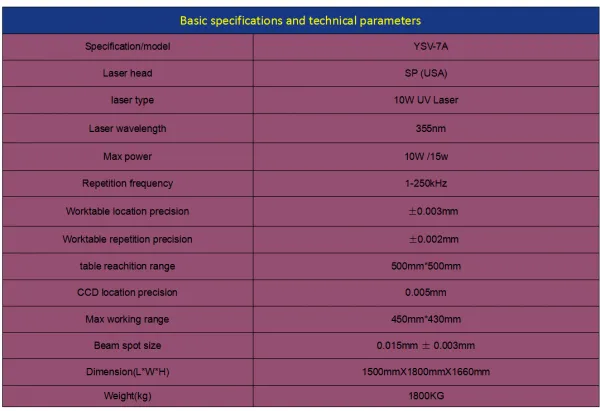

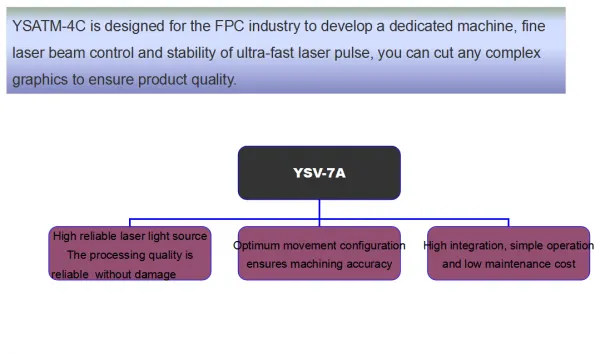

YSV-7A Product feature
1.After cutting the edges are neat and smooth
Don’t produce burrs, there will be no dust / particles residue
high precision, especially for small arc and other fine cutting
high precision, especially for small arc and other fine cutting
2.Effectively reduce the molding failure rate
A composite workpiece with a variety of materials and a combination of different thicknesses can be cut once
The laser head can automatically adjust the height, easy to handle double-sided surface-mounted FPC.
