2 Iron Heads Soldering Machine For LED Soft Strip Light/LED Cutting Machine
US$ 1000 - 4000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YUSHUNLI
Place of Origin:
China
Model Number:
PCX-800
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Soldering Machine For Led Soft Strip LightUS$ 1000 - 4000MOQ: 1 Set -
700 X 800 X 950mm 0.05mm Precision Hot Bar Soldering Machine Automatic Soldering RobotUS$ 1000 - 10000MOQ: 1 Set
-
LED Soft Strip Soldering Machine , Multiple Iron Head Double Platform Soldering EquipmentUS$ 1000 - 10000MOQ: 1 Set
-
Stencil PCB Semi Auto 320*400mm Solder Paste PrinterUS$ 1000 - 5800MOQ: 1 Set
-
90L Battery Type Industrial Vacuum CleanerUS$ 300 - 700MOQ: 1 Set
Brand Name
YUSHUNLI
Place of Origin
China
Model Number
PCX-800
soldering machine for LED soft strip light
Product Brief:
PCX-800LEDSoft light strip plate soldering machine is a dedicated automatic welding equipment for 5 meter LED strip welding,According to the characteristics of LED equipment 5 meters depth of humanization design,engaged in a variety of different solder joints instead of manual soldering work, solve the manual welding of weld solder joint is not uniform, and other phenomena, and compatible with a variety of types of LED soft strip size of welding, simple operation and high practicability, quality stability, greatly enhance the efficiency.
First, product advantages:
1.Simple programming, operation control box mobile head position.
2.Welding speed, high efficiency, a solder machine can save 5-6 people
3.Save tin wire, good consistency of solder joint
4.High power heating controller ensures the stability of continuous welding
The utility model relates to a double head fine tuning welding gun structure, which is convenient for regulating
the welding torch spacing and synchronous operation
5.Multi axis manipulator, advanced motion control algorithm, to improve the kinematic positioning accuracy and
repeatability accuracy
6.According to the professional design of the lamp batten, it is convenient for manual feeding and feeding
7.Production efficiency: 1800-2000 metres /H.
9,It can replace the manual process and optimize the quality control.
10,Improve efficiency, save manpower, simple operation, new staff can achieve the welding effect of skilled workers
Two, scope of application:
LED soft light plate soldering machine application range: suitable for LED monochromatic light, 5050RGB lamp string, lamp belt, lamp strip and other products

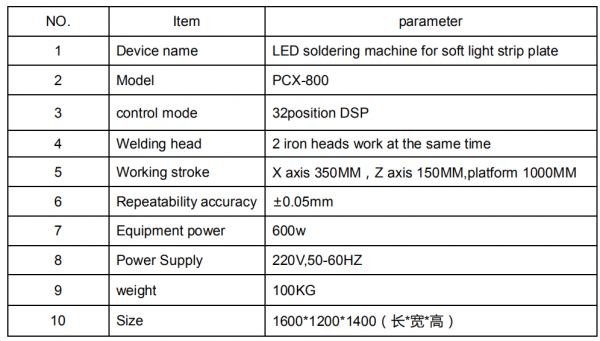

Three, technical parameters:

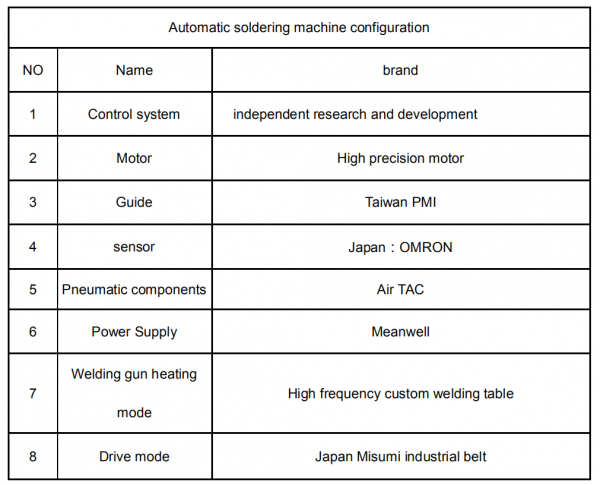

Technical parameter configuration:
