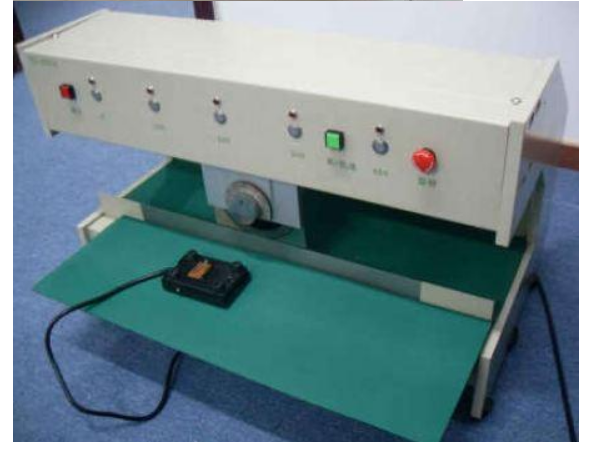

High Speed PCB Separator PCB V Cut Machine 110V AC 960 X 560 X 750mm (Model :YSV-1A)
PCB Separator Specification:
| Model No | YSV-1A |
| Machine Dimension | 960*560*750 mm |
| Transfer Belt | none |
| Material of Blade | SHK-9 high speed steel |
| Cutting Speed | 0-1000 mm / s |
| Cutting Thickness | 0.8-3.5 mm |
| Voltage | 220VAC / 110VAC |
| Weight | 89kg |
PCB Separator Feature:
1. One cutting span is 0-460mm/pcb .
2. Cutting blade speed are 2 ype: 500mm/s & 300mm/s.
3. Operate platform adjusting range from 0 to 50mm.
4. Flexible setting design. i.e. micro adjust the upper and lower blade to fit some kinds of thickness of PCB.
5. As per the length of PCB, free setting stop point.
6. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
7. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job.Dedicated.
to high strength cutting, and excellent toughness, able to cut metal board.
PCB Separator Application:
Aluminum base board
Copper substrate
V-CUT Line FR4 board
Glass fiber board
V-CUT LED light bar panel
V-CUTPCB circuit board
Demo exhibitions:
Wooden package:
