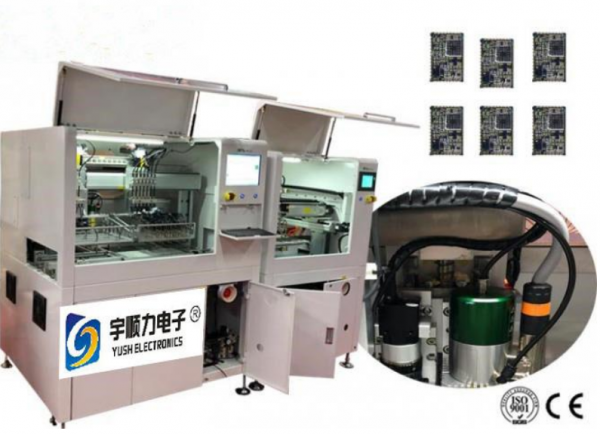

Automated In-line PCB Routers (Model:YSATM-4C)
Features:
• In-Line Automatic PCB Separator can loading, Cutting , unloading automatically, meet the needs of automatic factory.
• It can adjust width and receive PC board automatically. Meanwhile, it can identify the finished PCB board and waste automatically after cutting, save labor costs.
• Equip high-speed CCD with automatic vision alignment system at set, great improve the precision of cutting and operation efficiency.
• Use high-speed main shaft to cut PCB, less cutting stress, high precision, and apply to any form of PCB.
• Dual tables motion could carry out PCB cutting and placing at the same time, improve operation efficiency.
Advantages:
1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.
2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.
3. Avoid using blunt or fold, produced by mechanical stress.
4. Suitable for the finished plate arc and line cutting.
5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.
Specification Parameters:
01. X, Y cutting speed: 0 ~100mm/s
02. Machine Repeat Accuracy: ± 0.01mm
03. X, Y1,Y2 ,Z Control Methods: Industrial IPC and PC
04. X, Y1,Y2 ,Z Drive Mode: AC Fiber Optic Servo Motor
05. Machine Operation and Data Storage: PC System
06. Cutting accuracy: ± 0.05mm
07. Spindle speed: Max 100000pm
08. Host voltage: 220V 1ψ 50 / 60HZ
09. Air pressure supply: above 4.5kg/cm2
10. Power Consumption: 3KVA
11. Dust Collection: Upper Dust Collection 2HP
12. Dust collector voltage: 380V 3ψ
13. Upper dust collector size: :L650*W400*H1350mm
DEMO Exhibitions:
