0.6~5.0mm 0.7Mpa Pneumatic PCB Depaneling Machine
USD $1000 - $4000
/ Set
1 Set(Min.Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
You May Like
-
0.5Mpa~ 0.7Mpa Pneumatic Stencil Cleaning machine for solder paste stencil glue cooper/rubber stencil
-
0.4-6.0mm Thickness Automated In-line PCB Routers YSVC-450 For FR4, CEM1, CEM3
-
2 iron heads Soldering Machine For LED Soft Strip Light/LED Cutting Machine
-
Stencil PCB Semi Auto 320*400mm Solder Paste Printer
-
90L Battery type industrial vacuum cleaner
-
Soldering Machine For Led Soft Strip Light
Product Details
| Brand Name | YUSHUNLI | Place of Origin | China | |
| Model Number | YSVC-2 |
Product Description

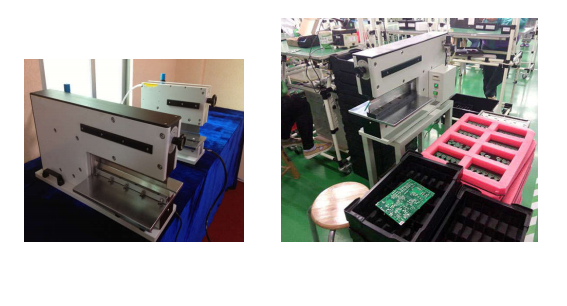

0.6~5.0mm 0.7Mpa Pneumatic PCB Depaneling Machine
Feature:
●Separates boards up to 3.5mm thick;
●Shears boards safely with parts as close as 0.5mm to the score line,including
ceramic capacitors;
●Operator foolproof! Panels cannot be inserted into the knives except on the
score line;
●Pneumatically driven;
●Handles high components up to70mm;
●Bow waves that can occur with round knives are avoided;
●Easy adjusting of distance between knives.
● Adjust blades to PCB score line using rotary knob.
● Boards are separated without bending or breaking.
● Safe for use with flexible and thin (to 0.5mm) PCBs.
● Smooth, quiet pneumatic-powered unit with foot -pedal activation.
● Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion.
● Can be used with aluminum and other substrates, including substrates with metal inner layers.
Specifications:
Machine drawing:
Machine video reference URL:
/watch?v=07Gl10z1xIg
/watch?v=AJMoFzCl-8c
/watch?v=JWDAggG3wUI YSVC-200
PACKAGE PHOTO:
