PCD PCBN CVD Tools Grinding Wheel
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MORESUPERHARD
Place of Origin:
China
Model Number:
6A2
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou
Delivery Detail:
7 days
Related Products
-
6A2 Resin Diamond Cup Grinding Wheel for CBN ToolsUS$ 1 - 50MOQ: 1 Piece -
Metal Diamond Cup Wheel for PCD Tools Superfinish GrindingUS$ 1 - 50MOQ: 1 Piece
-
Peripheral Grinding of CBN Inserts - Vit Diamond WheelUS$ 1 - 50MOQ: 1 Piece
-
Grinding Wheel for Punch MachineUS$ 1 - 50MOQ: 1 Piece
-
Precision Ceramic Grinding - Cylindrical Diamond WheelUS$ 1 - 50MOQ: 1 Piece
Brand Name
MORESUPERHARD
Place of Origin
China
Model Number
6A2

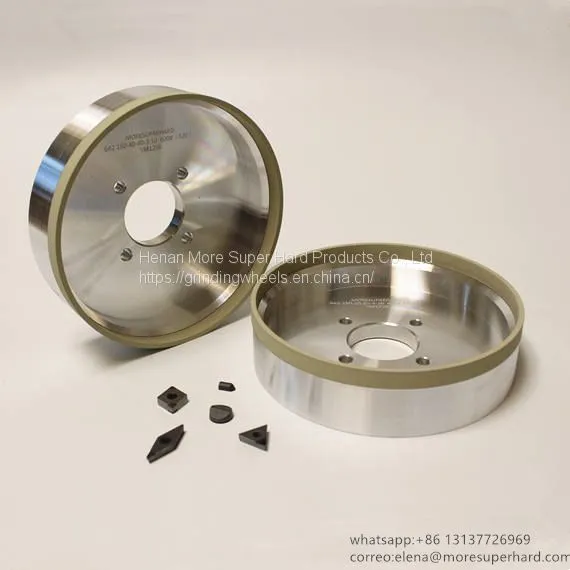

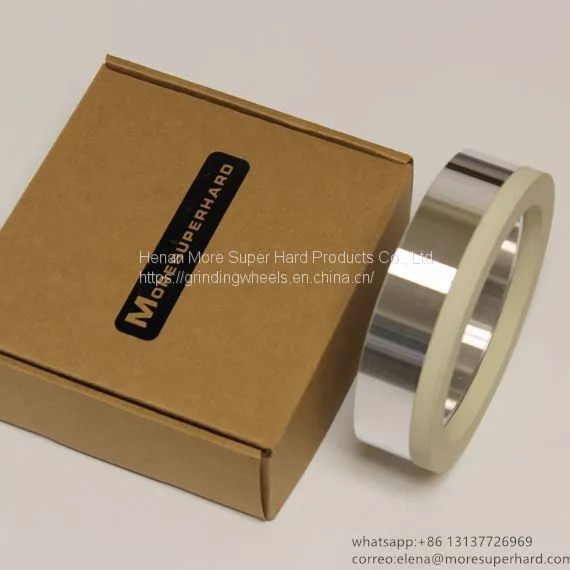

PCD PCBN CVD Tools Grinding Wheel
► Grinding, regrind pcd, pcbn, cvd tools
► Bonded: vitrified bond, resin bond, metal bond
► Width: 3mm - 20mm
► Up to #5000 for super finish
► Cutting-edge chipping
► Provide dressing wheel to dress PCD grinding wheel

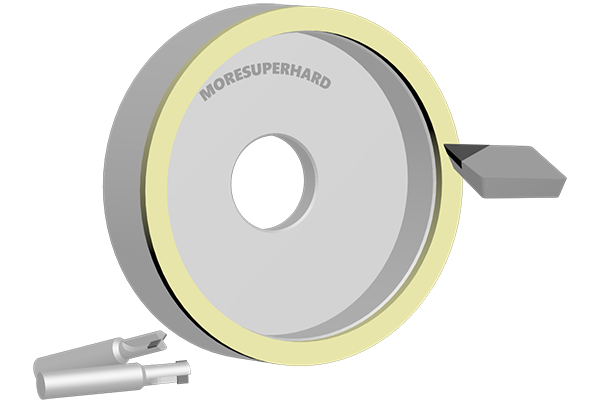

PCD Tools, PCBN Tools, CVD Tools Grinding
More SuperHard Products devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding. Vitrified diamond grinding wheels for grinding PCD & PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc
Grain size selection of vitrified diamond grinding wheel
► W40(500# D35) W28(D20) Rough Grinding.
► W20 (800# -1000#, D20) Universal Grinding.
► W10 (1500# D15A) W7 (2000# D15B) Finish Grinding.
► W5 (3000# D7) W3.5 (4000# D3) Super Finish Grinding.
Grain size selection of vitrified diamond grinding wheel
► W40(500# D35) W28(D20) Rough Grinding.
► W20 (800# -1000#, D20) Universal Grinding.
► W10 (1500# D15A) W7 (2000# D15B) Finish Grinding.
► W5 (3000# D7) W3.5 (4000# D3) Super Finish Grinding.
Specification, Drawing, Case
| Model | D(mm) | T (mm) | H (mm) | W (mm) | X (mm) |
| 6A2 / 11A2 | 150 | 40 | 32 40 | 3 5 10 15 20 | 10 |
| 125 | 40 | 32 40 | 3 5 10 | 10 | |
| 100 | 40 | 32 40 | 3 5 10 20 | 10 | |
| Grit: 325/400, W40 (500#), W28 (600#), W20 (800#), W10 (1500#), W5 (3000#), W3 (5000#) | |||||
Application Example: PCD Inserts Grinding Vitrified Bond Diamond Grinding Wheel
| Grinding machine | EWAG EasyGrind |
| Coolant | Emulsion |
| Workpiece | PCD insert (brazed, include carbide ) |
| Grinding Parameters | |
| Feed Rate | Vf = 2mm/min |
| Stock | 0.3mm |
| Cutting Speed | Vc=15m/s |
| Advantage | |
| 1, 35%-time savings 2, 20% working life time increase 3, Chipping | |
Suitable PCD Grinding Machines: COBORN,EWAG, Anca, FARMAN,MYTECH
