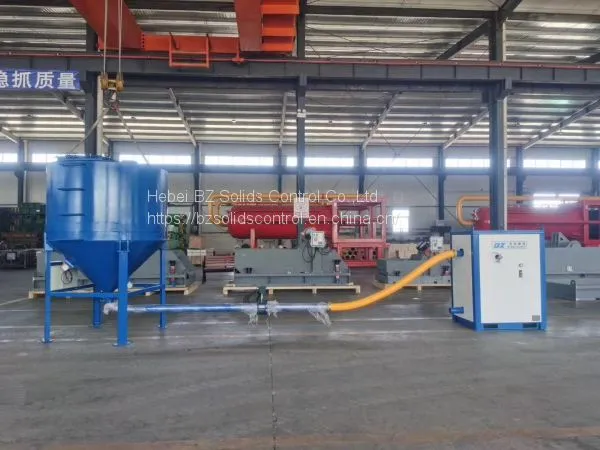

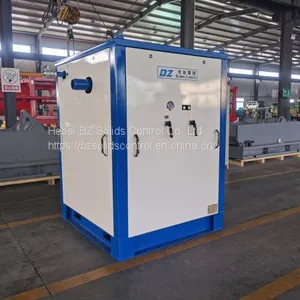

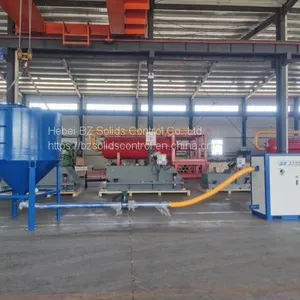

Vacuum Solids Convey Pump
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Port of Shipment:
Xingang, Tianjin
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
BZ vacuum solids convey pump is a kind of high load strong suction conveyor,also known as negative pressure solid conveyor or vacuum slurry pump.
Equipped with efficient venturi device under the action of strong turbulence which can produce high vacuum suction. It can transport efficiently pure solid materials(sand,gravel,etc.) and other high density,high viscosity materials.
Unique design allows it to work in most tough environment,with low maintenance rate. No wear and tear parts, low maintenance cost .Compact structure,easy to transport and install.
| Model | BZVP-40 | BZVP-20 |
| Max Capacity | 40m³/h | 20m³/h |
| Inlet/Outlet Size | 4 "(114mm) | 3 "(89mm) |
| Vacuum Degree | 85Kpa/25 inch HG（Mercury Column） | |
| Max Suction Distance | 50m | |
| Max Discharge Distance | 1000m | 500m |
| Max Solids Content | 100% | |
| Max Solids Size | 75mm | 50mm |
| Pressure Request | 550Kpa-785Kpa (80-114PSI) | 550Kpa-690Kpa (80-100PSI) |
| Air Demand | 17m³/min | 8m³/min |
| Dimension | 1578×1440×2030mm | 1200×800×1470mm |
| Weight | 1200kg | 360kg |
· Recovery and treatment of drilling cuttings, mud and waste slurry
· Clean mud pit, bottom of mud tank and bilge of transport vessel
· Recovery and treatment of hazardous waste
· Treatment of oily sludge
· Material transportation of bulk tanks and silos
· Transportation of sand, fine sand and fracturing sand, powdery materials, animal excrement, etc.
Featrues:
Featrues:
. 25”Hg vacuum degree suction & discharge ability, can suck slurry containing 50mm+ or 75mm+ solids from 50m+ away and deliver the same up to 1000m+
. Pump any materials, liquid, solids&liquid mixture, powder, even 100% solids
. 100% air operated, could be used safely at IECex zones
. Meeting European required anti-explosion directive, machinery directive and pressure vessal directive
. No wear and tear parts, low maintenance cost
. Compact structure,easy to transport and install
. No wear and tear parts, low maintenance cost
. Compact structure,easy to transport and install
