Help CenterShale Shaker
Related Products

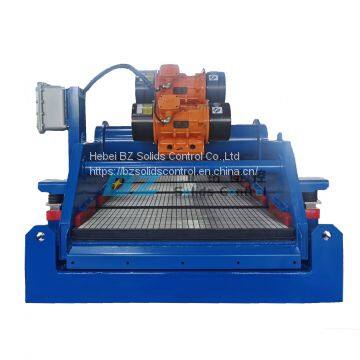

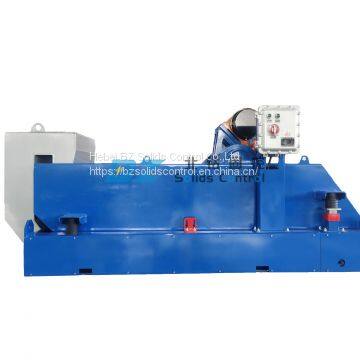

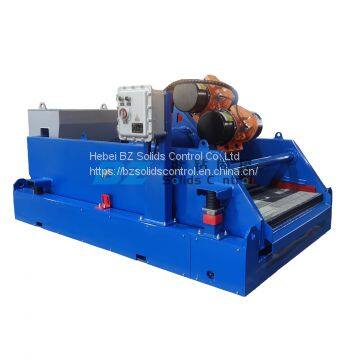

BZ smart shale shaker is the first-phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud recycling system. Shale shaker decides the performance of whole solids control system.
BZ solids control can design and produce double shakers and triplicate shakers on single skid according to clients’ requirements and supply relevant connecting manifold according to different industry applications. BZ shale shaker has advantages of smart control, high G force, wide screen area, compact structure and adjustable deck angle.
Shale shaker is used in many industries such as oil and gas drilling, coal bed methane( CBM ), horizontal directional drilling ( HDD ), diamond drilling, water well drilling ., etc
BZS Shale Shaker Specification
| Model | BZS752 | BZS583 | BZS584 | BZS585 | BZS586 | |
| Vibration mode | Liner Motion | |||||
| Capacity | 60m³/h | 120m³/h | 140m³/h | 165m³/h | 180m³/h | |
| Motor | 2×0.8KW | 2×2.2KW | 2×2.2KW | 2×2.2+1×1.3KW | 2×2.2KW | |
| Screen Qty(pcs) | 2 | 3 | 4 | 5 | 6 | |
| Screen Size | 750×900mm | 585×1165mm | 585×1165mm | 585×1165mm | Up：750×900mm Down：585×1165mm |
|
| Adjustable G Force | ≤7.5G(Adjustable) | |||||
| Vibration Amplitude | 4.5～6.0mm | 4.5～6.0mm | 4.5～6.0mm | 4.5-6.3mm | 4.5-6.3mm | |
| Deck Angle | 0～+2° | -1～+5° | ||||
| Noise | ||||||
| EX Standard | ExdIIBt4/IECEX/A-TEX | |||||
| Weight | 900kg | 1380kg | 1530kg | 1778kg | 1630kg | |
| Dimension | 1659×1321×1040mm | 2415×1978×1415mm | 3004×1978×1415mm | 3597×1978×1415mm | 3004×1978×1415mm | |
| Remark | Above capacity amount is just for reference, will be different depending on mesh number and mud conditions. | |||||
· Shale shaker bottom deck is made of stainless steel, long service life
· Heat treatment on complete shale shaker deck for high G force operation
· Pretensioned shale shaker screen for fast screen replacement
. Flexible feeding types including weir feeding, top feeding, and hopper feeding are available
· Famous brand vibration motors : IEC Ex, ATEX and UL certified
· Electrical components: SIEMENS or Schneider
