Desander
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
BZ
Place of Origin:
China
Model Number:
BZCS
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
BZ
Place of Origin
China
Model Number
BZCS
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Certification
ISO
Condition
New

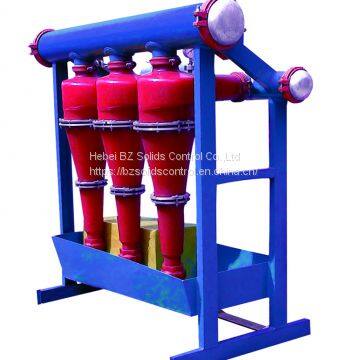

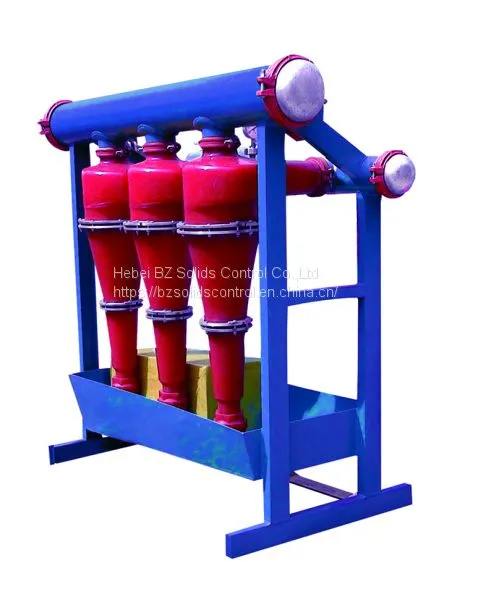

Desander is the second phase solids control equipment to recover drilling fluid, separating drilling cuttings in 45-75μm. According to diameter of hydrocyclones, it is divided into Desander and Desilter. Usually the cone diameter is more than 6″is called Desander, and used as the second-control equipment in drilling operation. 8 "and 10" cones desander are mostly used to separate solid-phase particle size 45-75μm in the drilling fluids.
Drilling fluid is being feeded into desander cone at the horizontal inlet at pressure, the pressure and weight make solids particles moving beside cone wall and drop down, fluids with fine particles will be pressed on top and overflow away through pipeline.
Most common cone diameter is 10 inch. Cone quantity is decided by treatment capacity request. An underflow shale shaker is optional.
BZCS Desander Specification
| Model | BZCS200-1S/2S | BZCS250-1S/2S | BZCS300-1S/2S |
| Capacity | 60 / 120m³/h | 120 / 240m³/h | 240 / 360m³/h |
| Desander Size | 8inch | 10inch | 12inch |
| Desander Qty(pcs) | 1 / 2 | ||
| Working Pressure | 0.25-0.4MPa | ||
| Particle Size | 45um-75um | ||
| Shaker | BZS60 | BZS752 | |
| EX standard | ExdIIBt4/IECEX/A-TEX | ||
| Dimension | 1510X1160X2000mm | 1510X1360X2250mm | 1820X1660X1810mm |
Features:
· 100% Polyurethane(PU) Material for desander cones with longer using life
· High separation efficiency, 45-75um drilling cuttings can be separated
. Quantity fo hydrocyclones can be adjusted by different treatment capacity request
· Compact design with small footprint
· Different size of shale shaker are optional
. Spraying nozzle design of cone outlet, no block problem
· Famous brand vibration motors : IEC Ex, ATEX and UL certified
· Electrical components: SIEMENS, Schneider
