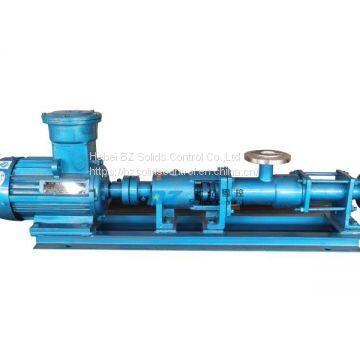

Screw pump is usually used to feed centrifuge. Including screw shaft (rotor) and screw shaft bushing (stator). By a special geometry shape of the this two parts, they form pressurize capacity separately. In a result, fluid flows along with shaft, inner flow speed is slow, capacity remains and pressure is steady, no vortex and agitating generated.
BZ screw pump's flow rate can be adjusted, a wide range of different type and viscosity liquid can be transported.
Screw pump application range: PAM, PAC dosing, all kinds of sludge and water transport, filter press, centrifuge feed pump, transmission oil, oil-water mixture, all kinds of thick starch, edible oil, honey, syrup, a variety of food transportation, medicine, daily chemical industry such as viscous slurry, emulsion, soft paste material conveying, lime, lime, coal water slurry, etc.
BZYZ Submersible Slurry Pump Specification
| Model | Capacity | Lift | Motor | Speed | inlet | Outlet | EX Standard | Weight | Dimension |
| BZG10-040 | 10m³/h | 0.3Mpa | 4kw | 244RPM | DN80 | DN80 | ExdIIBt4/IECEX/ A-TEX | 245kg | 2245x320x550mm |
| BZG20-055 | 20m³/h | 5.5kw | 210RPM | 320kg | 2450x340x562mm | ||||
| BZG30-075 | 30m³/h | 7.5kw | 258RPM | DN100 | DN100 | 385kg | 2761x370x600mm | ||
| BZG40-110 | 40m³/h | 11kw | 252RPM | 450kg | 3270x370x665mm | ||||
| BZG50-110 | 50m³/h | 273RPM | DN125 | DN125 | 608kg | 3790x400x782mm | |||
| BZG60-150 | 60m³/h | 15kw | 225RPM | 649kg | 3320x550x740mm | ||||
| BZG70-220 | 70m³/h | 22kw | 230RPM | DN150 | DN150 | 875kg | 3740x420x785mm | ||
| BZG80-220 | 80m³/h | 283RPM | 875kg | 3740x420x785mm | |||||
| BZG90-220 | 90m³/h | 30kw | 215RPM | 910kg | 3850x440x785mm |
Features:
· A wide range of different type and viscosity liquid can be transported, including high viscosity and hard suspension of waste slurry
. Rotation speed can be adjusted, to meet different materials pumping demand
. High suctoin and discharge ability
. Even continuous flow, small vibration, low noise
· Long operational life with reliable performance.
. Rotation speed can be adjusted, to meet different materials pumping demand
. High suctoin and discharge ability
. Even continuous flow, small vibration, low noise
· Long operational life with reliable performance.
