Mud Cleaner
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
BZ
Place of Origin:
China
Model Number:
BZQJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
BZ
Place of Origin
China
Model Number
BZQJ
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Certification
ISO
Condition
New

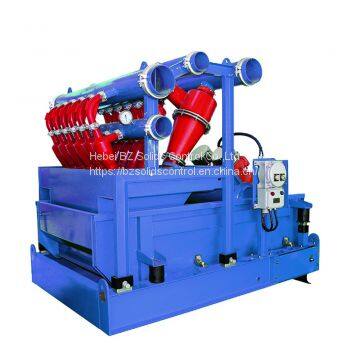

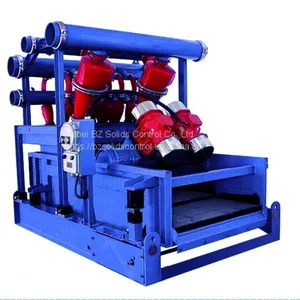

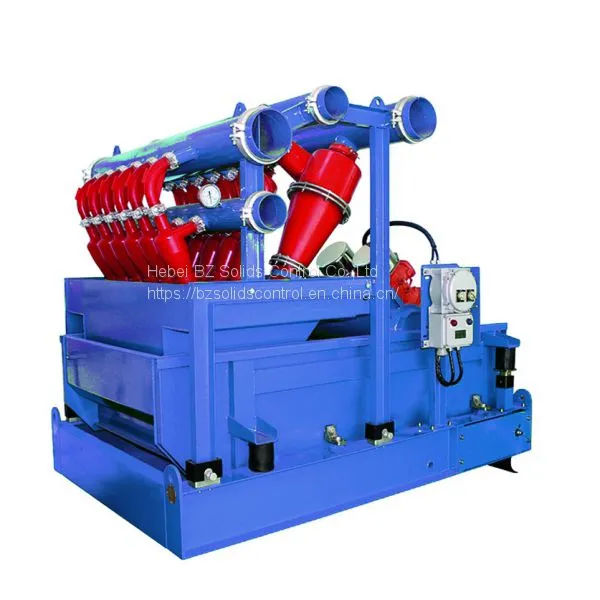

Mud cleaner is a combination of desander, desilter and shale shaker. It is the second and third phase solids control equipment. Mainly to separate solids in 15-75μm. BZ mud cleaner has the advantages of compact structure, less space needed, powerful treatment capacity. It is an ideal equipment in drilling mud recycling. Be widely used in oil and gas drilling fluid recycling, HDD&TBM mud recycling and other solids&liquid separation industries.
BZQJ Mud Cleaner Specification
| Model | BZQJ583-1S8N | BZQJ583-2S12N | BZQJ583-3S16N | BZQJ584-2S12N | BZQJ584-3S16N |
| Capacity | 120m³/h | 240m³/h | 360m³/h | 240m³/h | 360m³/h |
| Desander Size | 10inch | ||||
| Desander Qty(pcs) | 1 | 2 | 3 | 2 | 3 |
| Desilter Size | 4inch | ||||
| Desilter Qty(pcs) | 8 | 12 | 16 | 12 | 16 |
| Working Pressure | 0.25～0.4MPa | ||||
| Particle Size | 15～45μm | ||||
| Shaker Model | BZS583 | BZS584 | |||
| EX Standard | ExdIIBt4/IECEX/A-TEX | ||||
| Weight | 2010kg | 2285kg | 2380kg | 2485kg | 2660kg |
| Dimension | 2410×1978×2147mm | 2410×1978×2147mm | 2410×1978×2147mm | 3004×1978×2147mm | 3004×1978×2147mm |
Features:
· 100% Polyurethane(PU) material for desander cones with longer service life
· High separation efficiency, 15-75um drilling cuttings can be separated
· Desander, desilter and shale shaker 3 in 1, compact structure with small footprint
. Quantity fo hydrocyclones can be adjusted by different applications
· Different size of underflow shale shakers are optional
. Spraying nozzle design of cone outlet, no block problem
· Famous brand vibration motors : IEC Ex, ATEX and UL certified
· Electrical components: SIEMENS, Schneider
