BZ vacuum suction device is a device working together with shale shakers to reduce drilling waste and recycle more drilling fluids.

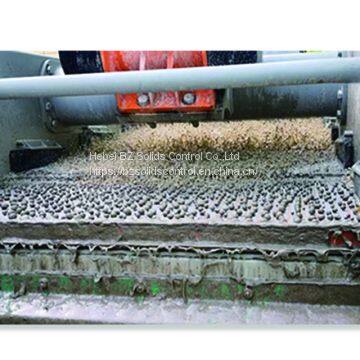

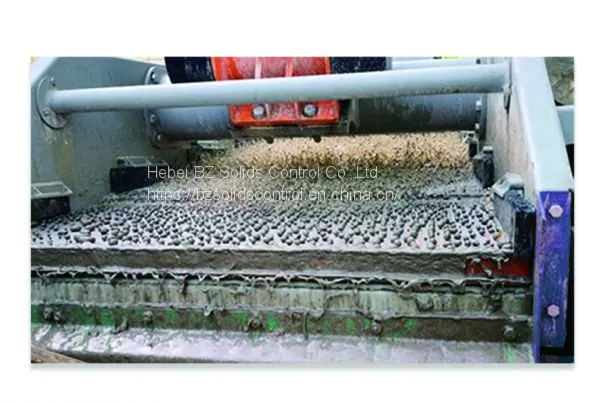

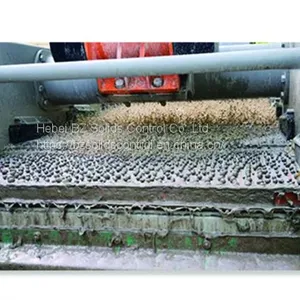

A suction pan is installed under the last screen of shale shakers. A suction hose is connected with vacuum device. Compressed air from air compressor is required to create vacuum suction on the last screen, pulling additional fluid off the cuttings by 20%-30%. In a result, maximizing the volume of recovered drilling fluids and geting dryer cuttings. Saving money on drilling fluid and drilling waste management.
| Model | FBZS583 | FBZS584 |
| Vibration mode | Liner Motion | |
| Capacity | ≤140m³/h | ≤170m³/h |
| Motor | 2×2.2KW | |
| Screen Qty(pcs) | 3 | 4 |
| Screen Size | 585×1165mm | 585×1165mm |
| Adjustable G Force | ≤7.5G | |
| Vibration Amplitude | 4.5～6.0mm | |
| Deck Angle | -1°~5° | |
| Supply Air Pressure | 0.7-1.0Mpa | |
| Air Capacity Required | 4.5m³/min | |
| Recovery Effciency | 30%-50% | |
| EX Standard | ExdIIBt4/IECEX/A-TEX | |
| Weight | 1420kg | 1570kg |
| Dimension | 2140×1978×1415mm | 3004×1978×1415mm |
| Remark | No electrical, air operated, adjustable suction time | |
· Widely be applicated on OBM, SBM, and WBM treatment. Recovering more drilling fluid and reducing drilling waste
. Be suitable to treat high viscosity drilling fluid, drilling waste and oil sludge
· Both onshore and offshore application
· Less foot print and easy installation without welding
· Finer shaker screen can be used to improve solids control efficiency
· No electric power required, be suitable to work in hazardous areas
. One vacuum device can be connectted with 3 shale shakers mostly
· Suction and discharge time is adjustable according to different drilling conditions
