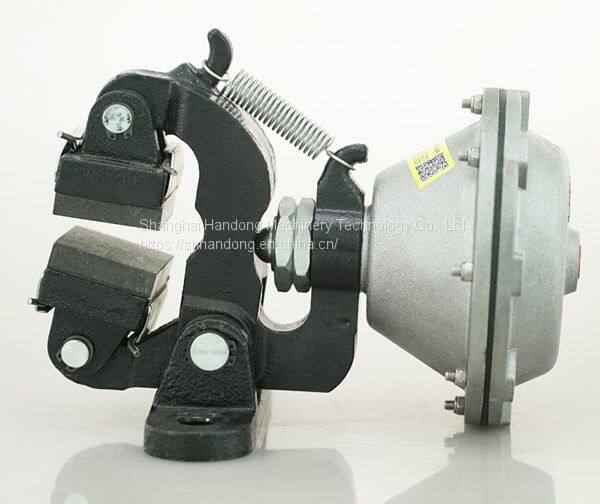

DBG Vertical Mounted Pneumatic Caliper Disc Brake With Air Cylinder Head

DBG vertical mounted caliper disc brake with air cylinder head

DBG vertical mounted pneumatic brake is a straight friction type brake, it is a kind of brake for clamping braking disk panel. DBG air brake is normal releasing brake. That is to say when there is no air supply, brake is released, two pieces of friction pads separated; after supplying air source into air chamber, piston pushed friction pads forward and clamped steel disc for braking. For this straight brake, friction pads and air cylinder head is in the same place.

DBG brake is a kind of vertical caliper disc brake with air cylinder head. There are three size of air cylinder heads available: 3#, 4# and 5#. And this straight air brake is suitable for braking disk thickness is 10mm and 20mm. So its model includes DBG103, DBG104, DBG105 and DBG203, DBG204, DBG205.

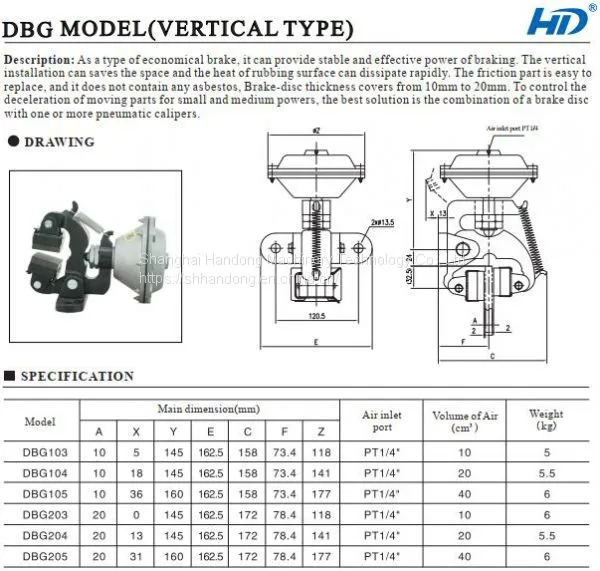

This DBG pneumatic caliper disc brake is a vertical installation brake. Brake is equiped with different size of air cylinder head, so it produces braking force is different, too. Pneumatic cylinder head larger, its contain air volume is larger, so brake generates braking force is higher, too. Following is the detail technical data for your reference:

There are six models of it: DBG103, DBG104,DBG105, DBG203,DBG204,DBG205.The DBG103, DBG104,DBG105 three models air caliper disc brake is suitable for braking disc thickness is 10mm braking. And DBG203, DBG204, DBG205 three models pneumatic caliper disc brakes are suitable for 20mm braking disc thickness plate. Although their braking disc thickness is different, while their braking force is the same.

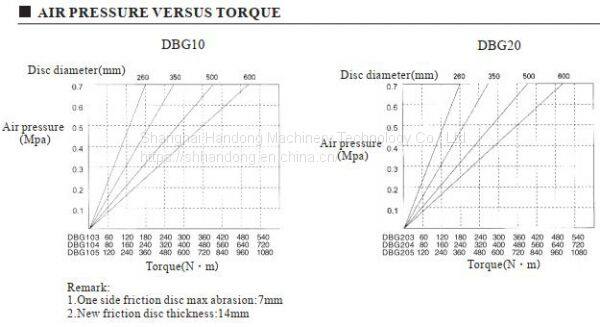

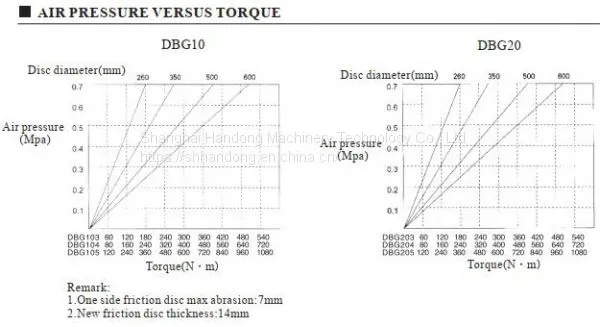

This air caliper disc brake is widely used in all kinds of working machinery, packing and printing machinery, rubber tire machinery, wire machinery, paper making machinery, stretch-wire machinery, stranding machinery, winding machine, trimming shears machinery, unwind machine, orientation machinery, tension controller and etc. Braking power can be adjusted via pressure regulating valve.

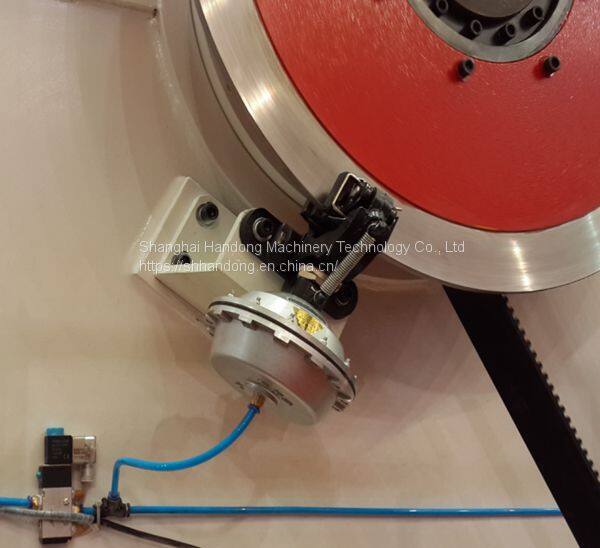

As above client usage case, this DBG-105 vertical caliper disc brake is used for clamping steel disk for stopping. After supplying air pressure, two friction pads forward and touch the disk. Through adjusting air pressure to regulate brake's braking force accordingly.
