DBH385 good performance horizontal brake Made in China

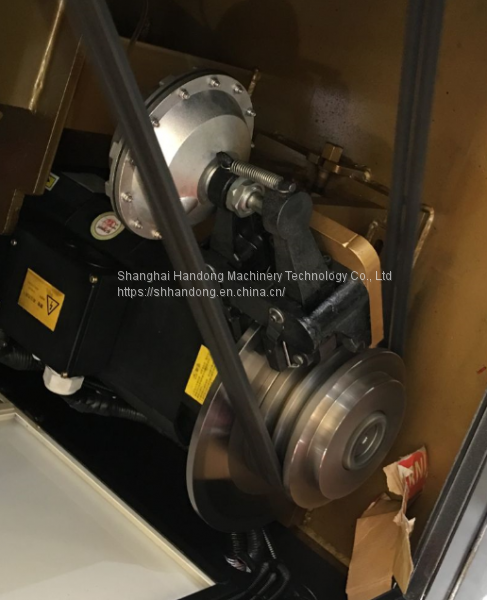

DBH385 Horizontal caliper disc brake is air engagement brake. When not supply air source, brake is released, after inputting air source, springs compressed and clamped steel plate for stopping. There are three models of brake DBH383, DBH384, DBH385 are suitable for steel plate thickness is 38mm. It can transmit high toruqe, reached to 2000N.m.
Handong company is a professional and outstanding manufacturer in Shanghai, China. It is a hot sell products, stock products will be sold fastly. If produce, delivery time is within 3 working days. As the producer, so we can make sure the products quality, delivery time and after-sales service for each customer.
For the brake DBH383, DBH384, DBH385, their structure and function is the same with DBH103, DBH104, DBH105; DBH203, DBH204, DBH205. The only difference is their braking steel disk thickness. Customers can choose a suitable type as their braking steel plate's outer circle thickness, steel plate's diameter and braking force needed. If not sure, you can consult us, we will offer you a professional solution.
Compared with DBG vertical mounted caliper disc brake, DBH is a kind of horizontal mounted air friction caliper disc brake, its braking power is nearly twice of DBG brake. Air brake DBH383, DBH384, DBH385 are also has left "L" and right "R" two types. "L" means it moves the air power source to enter from left side, "R" means it moves the air power source t enter from right side.
Following is the technical data of it for your reference:
DBH383, DBH384, DBH385 are suitable for braking steel disc thickness is 38mm. From above table we can understand that their braking force is the same with DBH10 and DBH20. Such as 600mm braking disc diameter, DBH385 braking force is 2000N.m, DBH104 and DBH204 braking force is also 2000N.m. So we can acknowledge that braking steel disk thickness has nothing to do with braking force.
DBH horizontal air friction brake is widely applied in working machinery, construction machinery, steel rolling machinery, stretch-wire machinery, stranding machinery, winding machinery, gantry crane, paper making machinery, ship, trimming shears machinery, unwind machinery, orientation machinery, tension controller and etc.
As usually, DBH horizontal caliper disc brake is suitable for 10mm, 20mm and 38mm braking disc. If your braking disc thickness is special, please tell us in advance, then we can make a special one for you. What you need is to tell us your requirement, then we will make the proper brake to satisfy your requirement.
Details of this product, you can search our website: and . Any doubt, you can contact me sqq@sh-handong.com. We will answer the question you doubt, and offer the professional solution for you.
