DBH Horizontal mounted caliper disc brake
DBH pneumatic caliper disc brake is a horizontal type friction brake. Horizontal caliper disc brake can be divided into three types, one is DBH103, DBH104, DBH105; second is DBH203, DBH204, DBH205; the third one is DBH383, DBH384, DBH385. They are named according to their braking disk's thickness and air cylinder head size. For the DBH383, DBH384, DBH385 their braking steel plate thickness is 38mm, it is special.
This air caliper disc brake driven by air pressure, no electric spark, anti-explosion, safe and reliable. Braking force can be adjusted at random, torque range is wide. Good heat dissipation, lining is wear-resistant, two-cut type is easy for replacement. Following is the detail technical data of this DBH air brake for your reference:

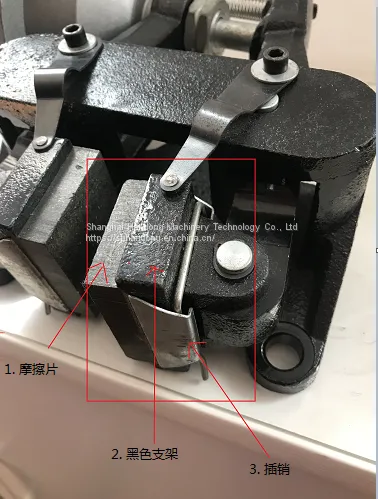

Friction pads of horizontal caliper disc brake is non-asbestos material, it is durable with small noise. Old type friction pads is with screw structure, like Niika. Our new friction pads with spring structure, it is convenient for replacement. The new friction pads is composed of friction linings, torsional spring, small segment three parts. Loose the clamp bolts, taking out friction pads and changed to a new pair frictio pads is enough. It is greatly save exchange time and easier.
It is widely applied in working machinery, construction machinery, steel rolling machinery, stretch-wire machinery, stranding machinery, winding machinery, gantry crane, paper making machinery, ship, trimming shears machinery, unwind machinery, orientation machinery, tension controller and etc.

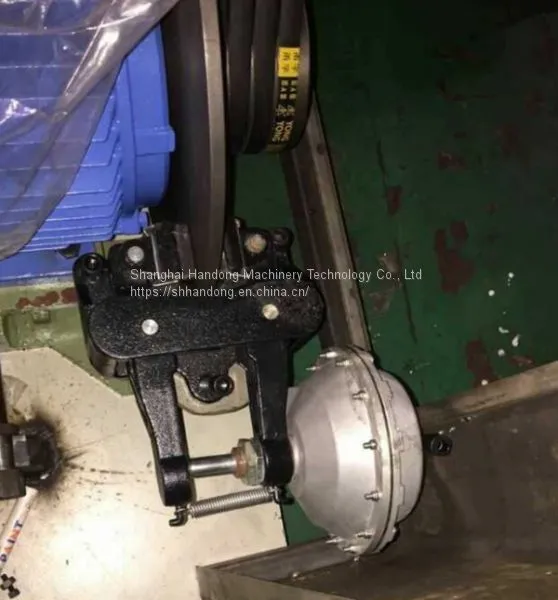

From this case, we can see that this DBH horizontal caliper disc brake is used to brake motor. There is an extend shaft matched with a steel friction plate, through braking this plate to stop motor inertia. With this mode, it is suitable for immediately stop, it is safe and convenient.
