HMC-1A pneumatic caliper disc brake for tire forming machine
HMC-A pneumatic caliper disc brake is a small size clamp brake without air cylinder. It is driven by air pressure, after inputting air source, up and down friction pads clamped for stopping. Its working thoery is similar with other type of pneumatic brake. Handong made air caliper disc brake with superior quality, it is easy operation and good performance.

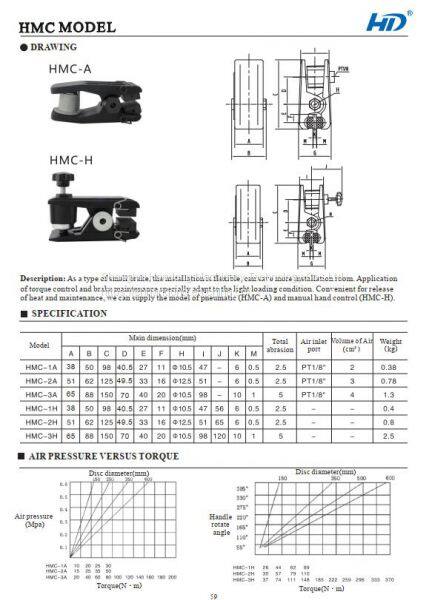

There are some models of it: HMC-1A, HMC-2A, HMC-3A. Following is the detail technical data of this brake for your reference:
From above technical data we can see that HMC-1A, HMC-2A are suitable for 6mm thickness steel plate clamping, and HMC-3A is suitable for 10mm thickness steel plate clamping. This HMC braking force is varied via air pressure and steel plate's diameter. When the braking disc diameter larger, its braking force is higher, too. For example, when steel disc diameter is 250mm, HMC-1A braking force is 28N.m, HMC-2A braking force is 43N.m, HMC-3A braking force is 70N.m.

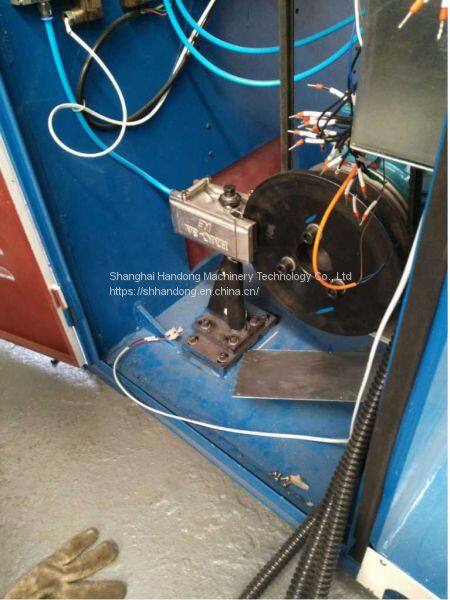

This mini caliper disc brake with small size, it is clamp braking disc, braking disc diameter is more than 150mm, and it can be used some pieces together to increase braking force in a certain time. It is extensive applied for wire and cable machine, wire winch machine, wire winding reels, small vehicles, roll winding and unwinding machine, rubber tire machine, packing and printing machine and so on.
