Roll Forming Machine Color Steel Tile Machine Two Layers 840-850

Hannstar Building Material Company
Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 thumbnail-1
Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 thumbnail-2
Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 thumbnail-3
Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 thumbnail-4
Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 photo-1

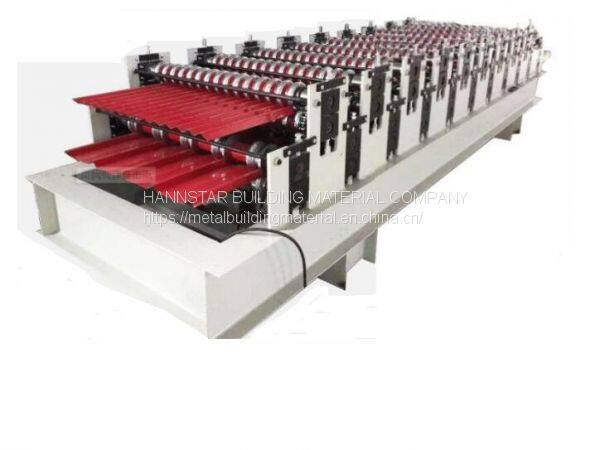

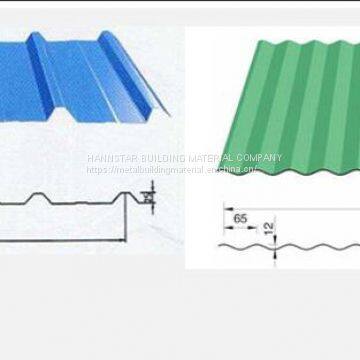

Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 photo-2

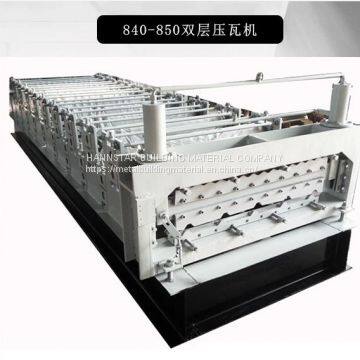

Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 photo-3

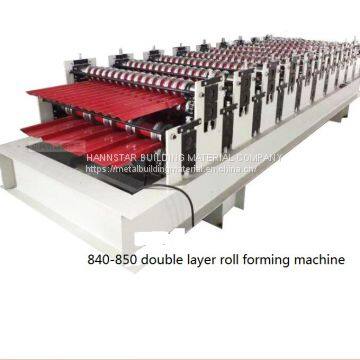

Roll Forming Machine Color Steel Tile Machine Two Layers 840-850 photo-4
US$ 8000 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANNSTAR
Place of Origin:
China
Model Number:
2 layers roll forming machine
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANNSTAR
Place of Origin China
Model Number 2 layers roll forming machine
Use Roof
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight 5000KGS
Dimension(L*W*H) 6500mmx1300mmx1400mm
Production Capacity 8-12M/min
Condition New
Voltage 220V, 110V
Power(W) 4KW
Type Tile Forming Machine
Tile Type Colored Glaze Steel

Roll forming machine 2 layers machine

Main technical parameter

1). Main Motor Power: 5.5kw
2). Hydraulic Station Power:4KW
3). Hydraulic Oil Pump: CB-E310
4). Sprocket: P-25.4
5). Roller Station: 14
6). Yield Strength: 32MPa
7). Diameter of Principal Axis:  95mm(a key way is in the axle so that the roller can be   tight in the axle)
8). Material of Roller: 45#steel hard chrome plating
9). Processing Speed: 8-12m/min
10). Thickness: 0.3-0.8mm
11). Installation Dimension (L*W*H): 7m*1.6m*1.4m
12). Material of Blade: Cr12
13). Coil Width: 1000mm
14). Cover Width: 1050mm
15). Total Weight:  5.5T
16). Equipment Parts:  forming machine, hydraulic cutter(30mm steel board welded ) hydraulic station, PLC , equipment base(GB360channel steel welded)  and linear transducer .

Product Tags: Roll forming machine , arch sheet machine , roof sheet machine , corrugated sheet machine
