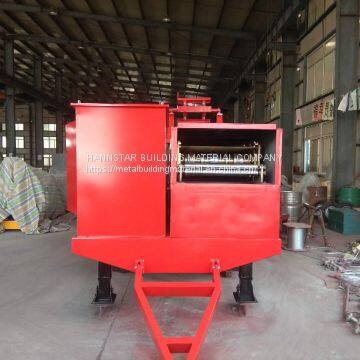

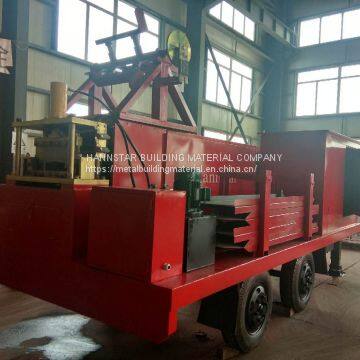

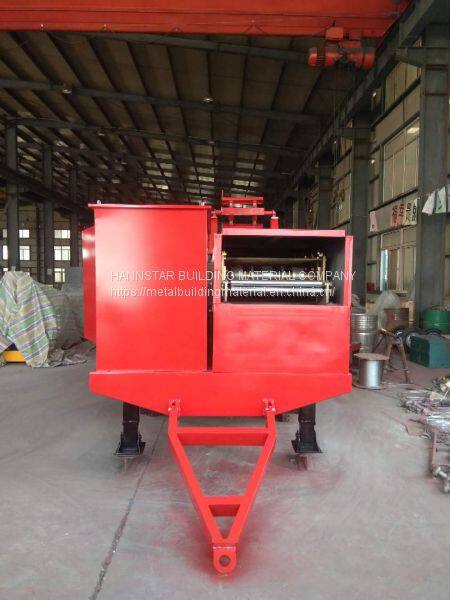

KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator

Hannstar Building Material Company
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator thumbnail-1
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator thumbnail-2
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator thumbnail-3
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator thumbnail-4
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator thumbnail-5
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator photo-1
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator photo-2
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator photo-3
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator photo-4
KR24 Roll Forming Machine Roof Arch Sheet Machine With Trailer and Diesel Generator photo-5
US$ 17000 - 25000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HANNSTAR
Place of Origin:
China
Model Number:
KR24
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANNSTAR
Place of Origin China
Model Number KR24
Use Roof
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 13 months
Weight 5000KGS
Dimension(L*W*H) 5500mmx1900mmx2150mm
Production Capacity 8-15M/min
Condition New
Voltage 220V, 110V
Power(W) 30KW
Type Arching Machine
Tile Type Colored Glaze Steel

Roll forming machine arch sheet machine

Technical parameter of KR24

Main technical parameter

1. Chassis: 250mm U-steel structural steel welding

2. Forming type: chain drive

3. diameter of axle: ￠65mm

4. Chain:16A

5. Forming motor power：5.5kw

6. Forming speed：8-15m/min

7. Forming rollers：12 steps

8. Roller material：45#steel, coated hard chrome

9. Thickness of coated hard chrome：0.05mm

10. Hydraulic station motor：3kw

11. Hydraulic oil pump：gear pump

12. Cutting type：hydroform cutter

13. Material of cutting part：Cr12,heat treatment HRC58°-60°

14. Thickness of coils：0.5-1.3mm

15. Length scale precision：±2mm

1. Transducer: YASKAWA

2. Controlling system: PLC ,touch screen

3. Power:220V 60HZ 3 phase

4. Diesel generator: 30KW

5. Size：5500mmx1900mmx2150mm(With trailer)

6. Feeding width: 610mm

7. Finished width:461.3mm

8. Weight:5 tons

Product Tags: Roll forming machine , arch sheet machine , roof sheet machine , corrugated sheet machine
