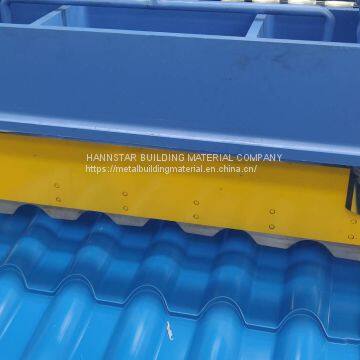

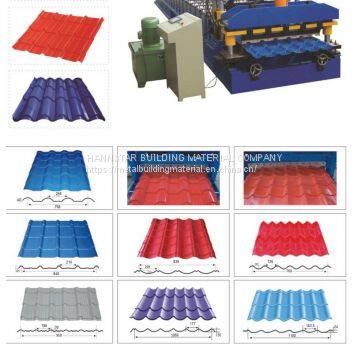

Roll Forming Machine Color Glazed Tile Machine

Roll forming machine Glazed tile machine

Main technical parameter

1.1 Coil material：color steel,  galvanized steel, Al sheet

1.2 Coil material thickness：0.25mm- 0.6mm

1.3Product effective width：900mm/1000mm

2.Decoiling--feeding---forming---cutting---production

3.1 Inside diameter coil is 450 - 550mm

3.2 Feeding Width is 1200 mm(900mmtile) and 1220mm(1000mm tile)

3.3 Coil load 5 ton

4.1 Shaft material: 45# steel , outer diameter:70mm

4.2 Roller material: #45 steel        The machine frame：350H steel

4.3 Pairs of forming rollers :14/16rollers     Machine stand plate：16mm

4.4 Transmission style

1 inch chain

4.5 Forming speed： 2-3m/min   10-12m/min

4.6 Main motor power：5.5kw

4.7 Voltage:380v,50Hz,3Phase

5.1 Hydraulic Station：1set

5.2 With hydraulic station, motor4KW

5.4 Cutting press 25 ton

5.5Hydraulic cutter

5.6 Blade and mold material: Cr12 steel with quenched treated 60-62℃

5.7Cutting system: advanced hydraulic drive, automatic cutting after

   forming, no distorting or wasting, high level safety factor.

6.1 PLC: Taida

6.2 Automatic length measurement

6.3 Automatic quantity measurement

6.4 Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved

Delivery time: 20-30days after receive the deposit.
