Channel Roll Forming Machine Color

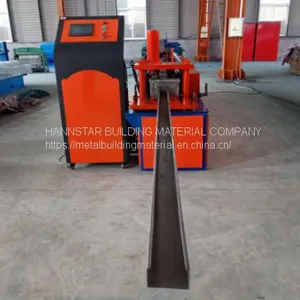

Channel Roll Forming Machine Color thumbnail-1

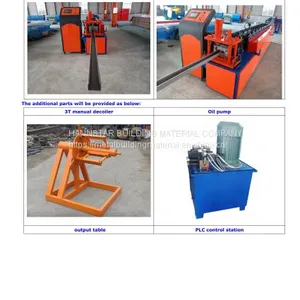

Channel Roll Forming Machine Color thumbnail-2
Channel Roll Forming Machine Color thumbnail-3
Channel Roll Forming Machine Color thumbnail-4
Channel Roll Forming Machine Color thumbnail-5
Channel Roll Forming Machine Color photo-1

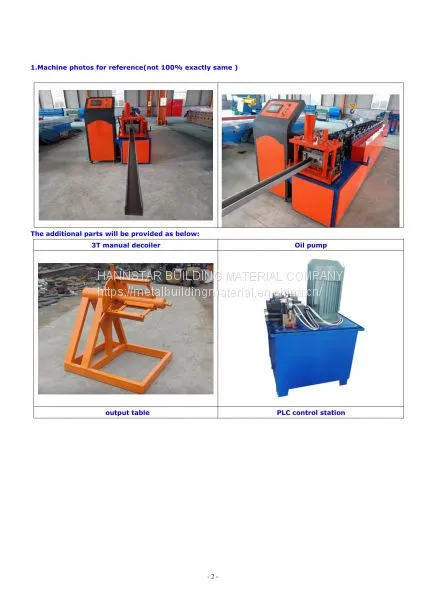

Channel Roll Forming Machine Color photo-2

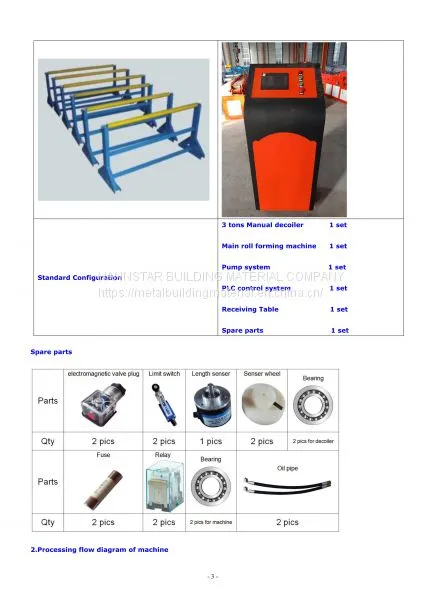

Channel Roll Forming Machine Color photo-3

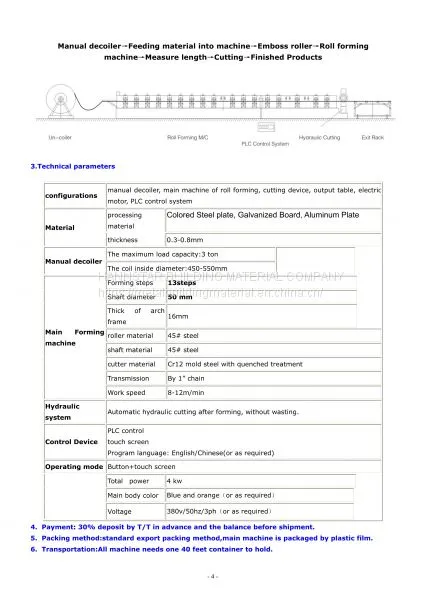

Channel Roll Forming Machine Color photo-4
Channel Roll Forming Machine Color photo-5
US$ 8000 - 11000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANNSTAR
Place of Origin:
China
Model Number:
C channel roll forming machine
Contact Supplier Request Quote Chat Now
Hannstar Building Material Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HANNSTAR
Place of Origin China
Model Number C channel roll forming machine
Use Roof
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight 4000KGS
Production Capacity 8-12M/min
Condition New
Voltage 220V, 110V
Power(W) 4KW
Type Tile Forming Machine
Tile Type Colored Glaze Steel

Channel Roll forming machine


configurations

manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system

Material

processing material

Colored Steel plate, Galvanized Board, Aluminum Plate

thickness

0.3-0.8mm

Manual decoiler

The maximum load capacity:3 ton



The coil inside diameter:450-550mm


Main Forming machine

Forming steps

13steps


Shaft diameter

50 mm


Thick of arch frame

16mm


roller material

45# steel

shaft material

45# steel

cutter material

Cr12 mold steel with quenched treatment

Transmission

By 1” chain

Work speed

8-12m/min

Hydraulic system

Automatic hydraulic cutting after forming, without wasting.

Control Device

PLC control

touch screen

Program language: English/Chinese(or as required)

Operating mode

Button+touch screen

Total  power

4 kw


Main body color

Blue and orange（or as required）


Voltage

380v/50hz/3ph（or as required）


Product Tags: Roll forming machine , arch sheet machine , roof sheet machine , corrugated sheet machine
