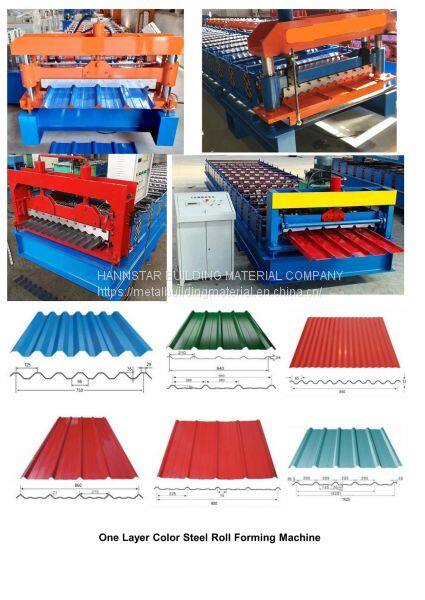

Roll Forming Machine Color Steel Tile Machine One Deck

Name: Roll Forming Machine Color Steel Tile Machine One Deck
Brand: HANNSTAR
SKU: 162696699
Availability: InStock

US$ 6000 - 10000 MOQ: 1 Set

Key Specifications

Brand Name:

HANNSTAR

Place of Origin:

China

Model Number:

900mm roll forming machine

Hannstar Building Material Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

30 days

Brand Name HANNSTAR

Place of Origin China

Model Number 900mm roll forming machine

Use Roof

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Warranty 12 months

Weight 5000KGS

Dimension(L*W*H) 4000mmx1500mmx1200mm

Production Capacity 8-12M/min

Condition New

Voltage 220V, 110V

Power(W) 4KW

Type Tile Forming Machine

Tile Type Colored Glaze Steel

Roll forming machine arch sheet machine

Main technical parameter

configurations	manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
Material	processing material	Colored Steel plate, Galvanized Board, Aluminum Plate
	thickness	0.2mm-0.8mm

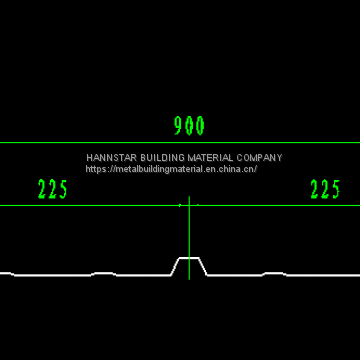

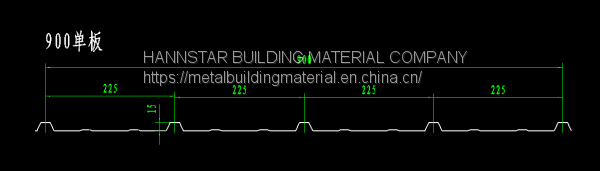

	Efficienty width	900mm
	Coil width	1000mm
Manual decoiler	The maximum load capacity:5 ton			Expand by band
	The coil inside diameter:450-550mm
	Suitable Coil width:1250mm
Main Forming machine	Forming steps		9steps
	Shaft diameter		70 mm
	Thick of arch frame		16mm
	Frame body		High strength steel pipe weld with color steel sheet cover
	roller material		45# steel
	shaft material		45# steel
	cutter material		Cr12 mold steel with quenched treatment
	Transmission		By 1” chain
	Work speed		8-12m/min

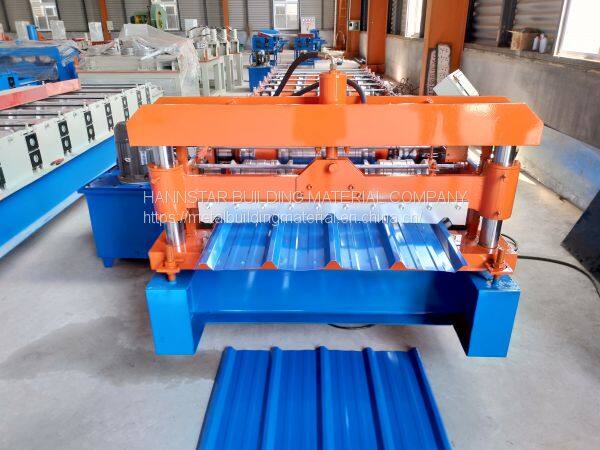

Hydraulic system	Automatic hydraulic cutting after forming, without wasting.

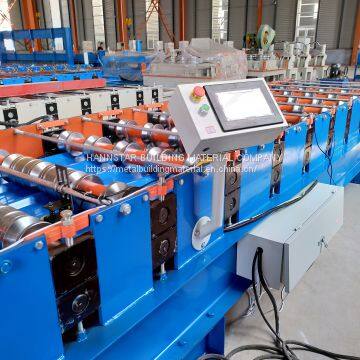

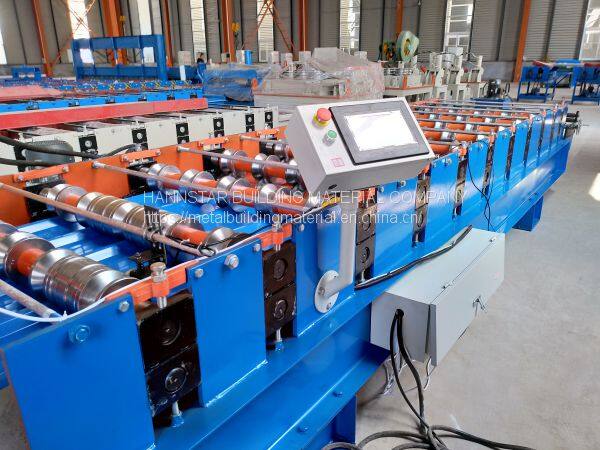

Control Device	PLC control touch screen Program language: English/Chinese(or as required)
Operating mode	Button+touch screen
	Total power	4 kw
	Main body color	Blue and orange（or as required）
	Voltage	380v/50hz/3ph（or as required）
