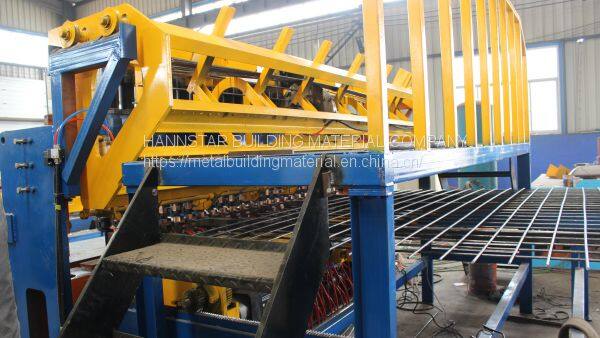

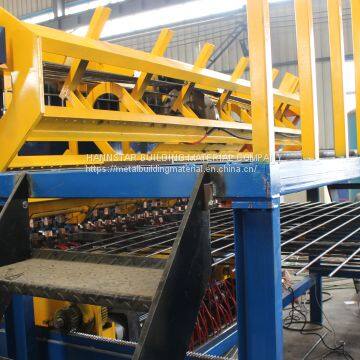

wire mesh welding machine
Ⅰ Machine Characteristics
Main Technologies
● Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen, easy to operate.
● Schneider (France) low-voltage apparatus, Delta (Taiwan) VFD, Meanwell (Taiwan) power supply.
● SMC (Japan) pneumatic components, more stable.
● Welding electrodes are made of pure red copper (upper) and chromised bronze (lower), durable.

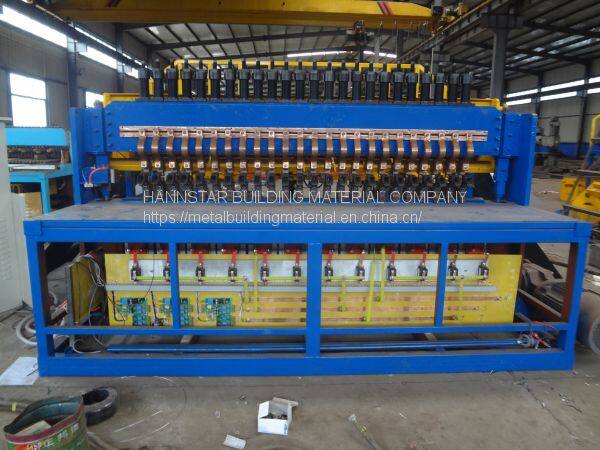

● Casting water-cooling transformers, high efficiency.
● Brake clutch motor&reducer connect the principal axis directly, high stability, (Patent technology.)
● Panasonic (Japan) servo motor for pulling mesh, big power, high precision.
Wire feeding way
The longitude wires and cross wires should be pre-straightened and pre-cut.
● Longitude wire feeding:
The longitude wires should be inserted into slot tunnel (cast iron) manually, or inserted into wire feeding car first, then send by Panasonic (Japan) servo motor, the workers can feed wires when welding, save time.
● Cross wire feeding:
The cross wires are fed from cross wire feeder automatically. The feeder is controlled by step motor and has high capacity, can put a bundle of wires every time.
1.Control panel 2.Inside electric components 3.Slot tunnel device
packing list of wire mesh welding machine
(DP-FP-2400A+)
Including:
1. Main machine, 1set
2. Electric control cabinet, 1set,
3. cross wire platform, 1 set
4. longitude wire sending car, 1 set
5. cross wire hopper
6. Platform om the funnel, 1 set and 2 pcs small ladders
7. Net pulling car, 1 set
8. Net pulling shelf, 1 set
After-Sale service
Ⅰ Installation and training
The seller can send their engineer to buyer’s place for machine installation and worker training. The buyer will be in charge of the expenses.
The buyer will be in charge of the technician’s two-way air tickets, hotel, meals, visa fee, translator and engineer’s salary 100USD per day).
Ⅱ Guarantee time: two years
The guarantee date is two years. If the parts of machine like transformer, motor, circuit board and so on go wrong as the right operation The seller will send the spare parts for free（Easy wear out parts are not included）.
Two years later, the seller can also send engineer to help mending the machine and the buy will pay the charge.
