Home > Products > Roll forming machine > Roll forming machine color steel tile machine double layers with high configuration

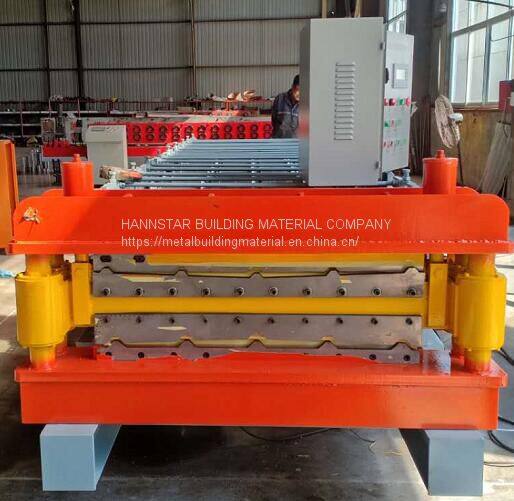

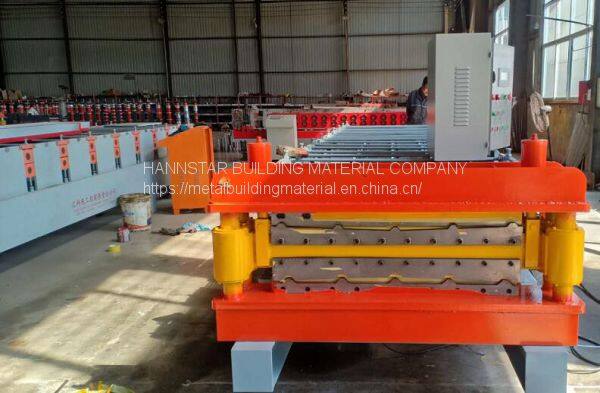

Roll forming machine color steel tile machine double layers with high configuration
- 100 Piece / Pieces per Month
- Tianjin
- T/T Other Cash Escrow
- 30 days
- Roll forming machine color steel tile machine 225-900
- C/Z Roll forming machine color C channel roll forming machine
- channel Roll forming machine color
- Roll forming machine color steel tile machine two layers
- Roll forming machine color steel tile machine single layer
- Roll forming machine color steel tile machine corrugated sheet machine
Product Details
Brand Name: | HANNSTAR | Place of Origin: | China | Model Number: | 2 layers roll forming machine |
Use: | Roof | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 12 months | Weight: | 5000KGS | Dimension(L*W*H): | 7500mmx1300mmx1600mm |
Production Capacity: | 8-12M/min | Condition: | New | Voltage: | 220V, 110V |
Power(W): | 4KW | Type: | Tile Forming Machine | Tile Type: | Colored Glaze Steel |
Product Description

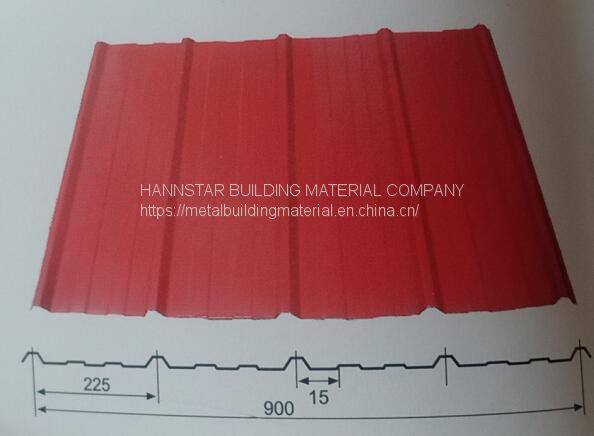

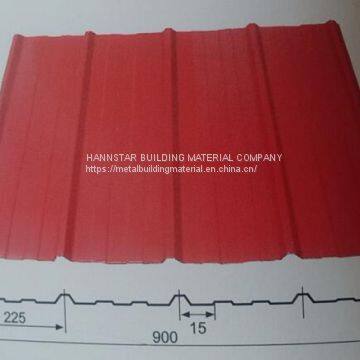

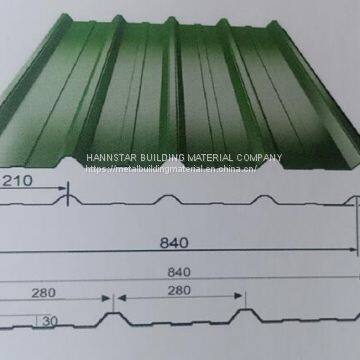

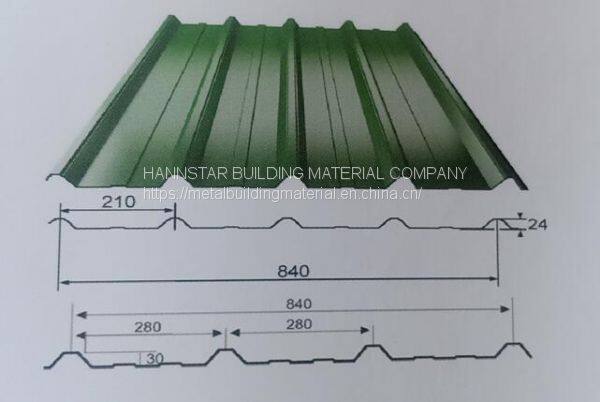

Roll forming machine 2 layers machine840-900
technical parameter | ||
1 |
Decoiler |
1.Bearing: 5T 2.Feeding way: Manual with brake |
2 | Main Forming System
| Roller stations: 11rows/13rows Material of Roller: 45# steel, Hard chromium plating Diameter of main shaft:80mm Chain: 1 inch Thickness of sheet: 0.3-0.8mm Power of main motor: 4kw Forming Speed: 8-12m/minute Side plate thickness: 20mm Equipment base: 300H steel |
3 | Cutting device | Material of blade: CR12, heat treatment HRC60-62 Cutting device: self length, self counting, automatic stop cutting, control length Cutting way: Four guide post shear device |
4 | Hydraulic system | Oil pump station:1set, CB-E310 Motor power of pump station: 3kw |
5 | Electrical System
| PLC and HMI touch Screen made in China Frequency converter: 4kw Automatic length measurement, Automatic quantity measurement Length measurement: Rotary Encoder Power: 380V/50Hz/3PH |
6 | Machine Size | Size( L×W×H): about 7.4m×1.3m×1.6m |
7 | Weight of the production line | Total weight: about 4.2T |
8 | Process of the production line | Decoiler —Forming — Cutting |
9 | Warranty | Delivery Time: 20-25 days Warranty: One year since the machine leave seller's factory |
