Home > Products > Water solenoid valve GOGO > 2 Way Air/ Water/oil Solenoid Valve 220V Normal Open G1 Inch
2 Way Air/ Water/oil Solenoid Valve 220V Normal Open G1 Inch
US$ 16.9 - 22.5
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
PU-20K G3/4 Inch 2 Way Normal Open Air Water Oil Brass Valve Direct Type General Solenoid Valve
-
2 Way Zero Pressure Start Solenoid Valve , 2 Inch Water Solenoid Valve
-
2 Way Brass NC Direct Action Water,air Solenoid Valve 220v/230v
-
GOGO PXC Series 2 Way Orifice 10mm Solenoid Valve Compact Pilot Valve
-
2 Way G11/2 Aluminum Alloy Body Pulse Valve Impulse Solenoid Valve for Using on Dust Collecting
-
2P025-06/08 Plastic Solenoid Valve AC110v 220v DC 24v 12v Solenoid Valve Mini
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | PU-25K | Application | General | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Power | Pneumatic | Port Size | 1/8" 1/4" 3/8" 1/2" | |
| Media | Gas | Temperature of Media | Medium Temperature |
Product Description

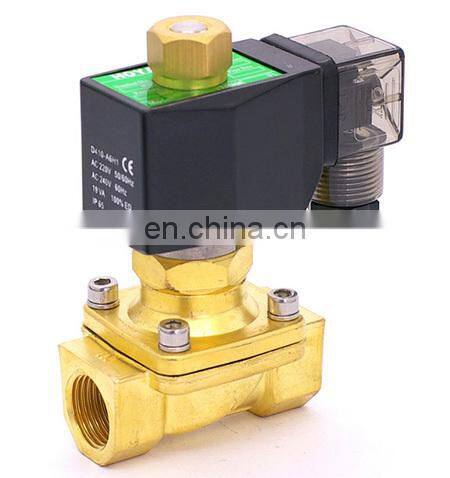

2 way air/ water/oil solenoid valve 220V normal open G1 inch
Specification
PU series solenoid valve
| Model | Tube | Orifice Diameter (mm) | Principium | CV | Body Material | Seal | Work pressure |
| PU-04K | 1/4" | 4 | direct action | 0.58 | bass , Stainless steel | NBR | 0-7BAR |
| PU-10K | 3/8" | 15 | Remove polt kind | 4.6 | 0-7BAR | ||
| PU-15K | 1/2" | 15 | 4.6 | 0-7BAR | |||
| PU-20K | 3/4" | 20 | 8.5 | 0-7BAR | |||
| PU-25K | 1" | 25 | 12 | 0-7BAR | |||
| PU-35K | 1-1/4" | 35 | 26 | 0-7BAR | |||
| PU-40K | 1-1/2" | 35 | 26 | 0-7BAR | |||
| PU-50K | 2" | 50 | 48 | 0-7BAR |
| Pattern : | Two ports two positions | |||||
| Principium: | Pilot kick type | |||||
| Control model: | normally open | |||||
| valve body: | brass ; Stainless steel | |||||
| Diaphragm: | NBR: <80 ° C, EPDM: <12 ° C FKM: <150 ° C; | |||||
| Working pressure: | 0 ~ 7bar | |||||
| Max pressure: | 10bar | |||||
| Voltage: | AC220V AC110V DC12V DC24V | |||||
| Medium: | Aire, agua, agua caliente, aceite ect. | |||||
| Application: | Low pressure large-flow normally air water control system | |||||
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Company Information
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
Skype:live:hunter_1656
