1/4 Inch 10-100bar High Pressure Solenoid Valve SPG-02
US$ 39 - 52
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
High Quality 1/2 '' 2-way Drain Valve With Timer Air Compressor Drain Valve
-
-1bar~+1bar Vacuum Pump Solenoid Valve ZCA-20 24V 220V Brass Vacuum Solenoid Valve
-
DF-150F Large Diameter Large Flow 6 Inch Water Solenoid Valve
-
SPG-01 SUS304 1/2 Inch Water Valve 10-200 Bar High Pressure Solenoid Valve
-
2 Way PX-50 Pilot Diaphragm Normally Closed 2 Inch Water Solenoid Valve
-
2 Way Mini Water Plastic Solenoid Valve 24V 2P025-06 Solenoid Valve
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | SPG-02 | Material | Stainless Steel | |
| Structure | Control | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Pneumatic | |
| Port Size | 1/4" | Media | Gas | |
| Temperature of Media | High Temperature |
Product Description

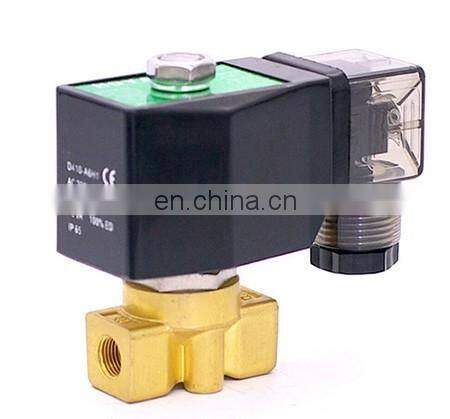

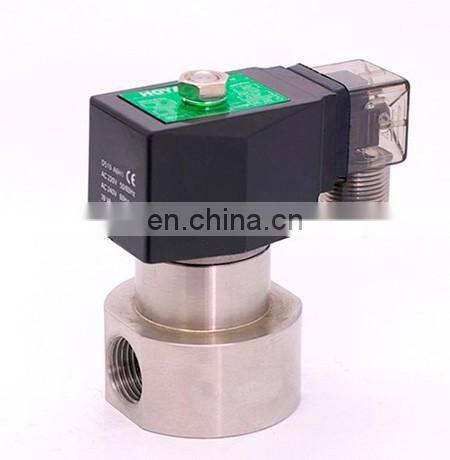

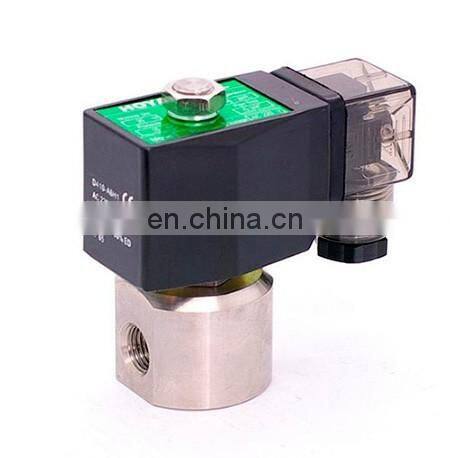

1/4 inch 10-100bar high pressure solenoid valve SPG-02
Specification
SPG series of high pressure solenoid valve
| Model | Tube | Orifice Diameter (Mm) | Pressure (Bar) | CV | Body Material | Seal |
| SPG-01 | 1/4" | 1.2 | 0-200 | 0.05 | SUS304 | Viton |
| SPG-02 | 1/4" | 2 | 0-100 | 0.2 | ||
| SPG-1002 | 1/4" | 10 | 0.5-100 | 1.7 | ||
| SPG-1003 | 3/8" | 10 | 0.5-100 | 1.7 | ||
| SPG-1004 | 1/2" | 10 | 0.5-100 | 1.7 |
| Pattern : | Two ports two positions | |||||
| Principium: | Directly on the type of action | |||||
| Control model: | Normally closed | |||||
| valve body: | Stainless steel | |||||
| Diaphragm: | FKM: <150 ° C; Teflon: <180 ° C | |||||
| Working pressure: | 0 ~ 200bar | |||||
| Max pressure: | 2oobar | |||||
| Voltage: | AC220V AC110V DC12V DC24V | |||||
| Medium: | Air, water, hot water, steam, oil etc. . | |||||
| Application: | high pressure large-flow steam water control system | |||||
Dimensions
| Orifice | Power | ||
| AC | AC | DC | |
| Va | W | W | |
| DN1.2 | 39 | 24 | 30 |
| DN1.5/2.5 | 22 | 12 | 18 |
| DN10 | 39 | 24 | 25 |
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
