2 Way Normally Closed Brass Pilot Structure Solenoid Valve
US$ 15.5 - 19.7
/ Piece
1 Piece(Min. Order)
- T/T Credit Card
You May Like
-
2/2 Way Polot Type Solenoid Valve Normally Open Large Flow and Long Life Brass Valve
-
2/2 Way Normally Closed for Water, Air, Steam, Oil Solenoid Valve 1 Inch
-
2/2 Way 3/8"-2" Brass Direct Acting Solenoid Valve
-
2/3 Way Exhaust Valve Port 3mm 4.5V / 6V DC/ 12V DC/ 24V DC Normally Closed Type Plastic Valve Micro Solenoid
-
3 Way Plastic Solenoid Valve Port 2mm Micro DC6v ,12V ,24V Solenoid Valve
-
Swimming Pools - Brass Normally Closed Electric Solenoid Valves for Water
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | PX-20 | Application | General | |
| Standard or Nonstandard | Standard | |||
| Power | Solenoid | Port Size | 3/4" | |
| Media | Water | Temperature of Media | Normal Temperature |
Product Description

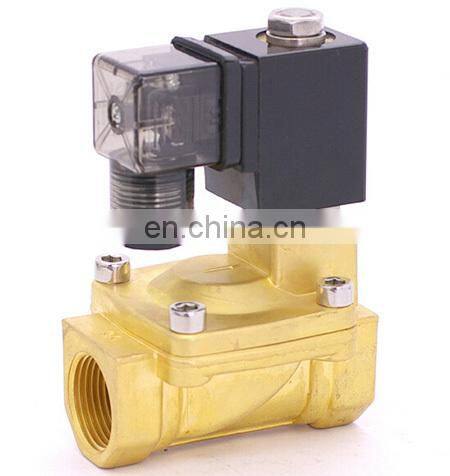

2 way Normally closed Brass Pilot Structure solenoid valve
Specification :
Body material | Brass |
Seal Material | NBR : -5°C~80°C |
Port size | 3/4" |
Port thread | G(standard) |
Orifice | 2.0mm |
Temperature | 0°C to 80 °C |
Medium | Air, water |
Pressure | 0.5-16 bar |
Voltage | DC-12V,24V AC110V,220V/50HZ,
|
Tolerance | ±10% |
Coil | IP 65,100% ED |
CV value | 8.5 |
Power | AC(50Hz) : 20VA / DC :12W |

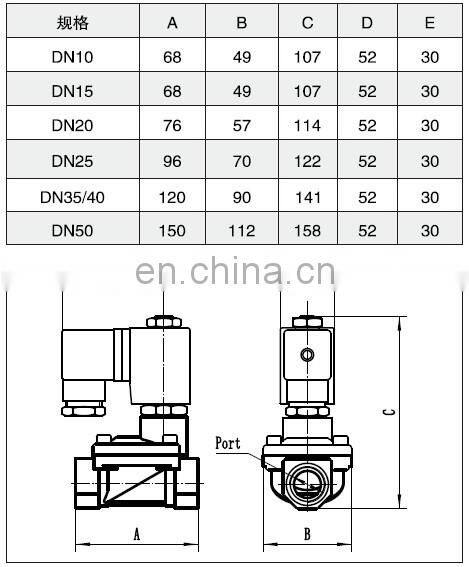

Dimension (mm)
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
