Hot Sell Spring Engagement Air Shaft Gear Brake
- Shanghai
- T/T L/C Credit Card Other Cash
You May Like
-
High Quality Spring Engagement Air Shaft Tooth and Tooth Brake
-
Steel Material Tooth and Tooth Brake Used for Mechanical Arm
-
New Aluminum Material Pneumatic Tooth Brake Used in Manipulator Arm
-
Superior Quality Pneumatic Tooth Brake Used in Robot Hand
-
Superior Quality Negative Tooth Brake Made in China
-
Popular Applied Negative Tooth Brake for Automatic Working Line
Product Details
| Brand Name | Handong HD | Place of Origin | China | |
| Model Number | CBM-10, CBM-20, CBM-40, CBM-60, CBM-120, CBM-200, CBM-400 |
Product Description

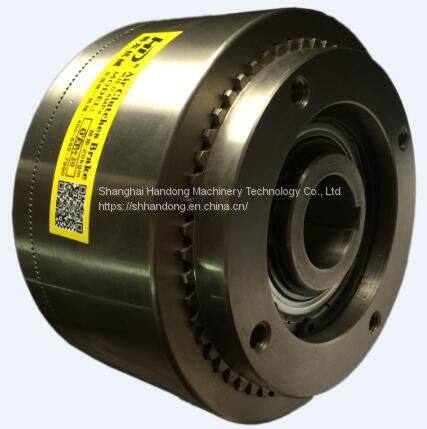

Hot sell spring engagement air shaft gear brake
CBM Air shaft normal braking tooth brake is also a type of spring applied air release brake. It is braked via springs, and released via inputting air pressure. With this character, so this spring engagement brake is usually used for emergency stop or urgent stop situation.

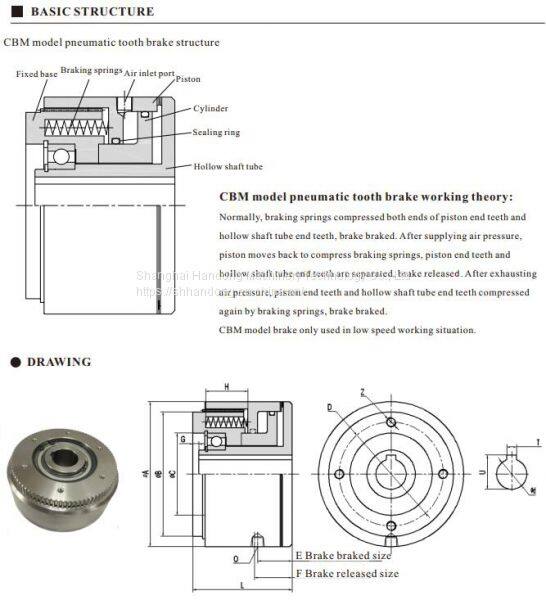

CBM tooth and tooth brake working thoery is similar with HABB spring engagement brake. Normally, braking springs compressed piston end tooth and hollow shaft tube end tooth, brake is in braking status. After supplying air pressure, piston moves towards to and compresses braking springs in the direction of fixed base spline, both ends of tooth separated, brake released.
Following is the main characters of CBM pneumatic tooth brake:
1. Use two ends of tooth engagement for braking, not easy slippage, braking large torque and no damage.
2. Braking and releasing can be finished in constant, can reach exact orientation.
3. Two ends of tooth use special process technology, high strength, good abrasion and long service life.
4. Normal braking design.

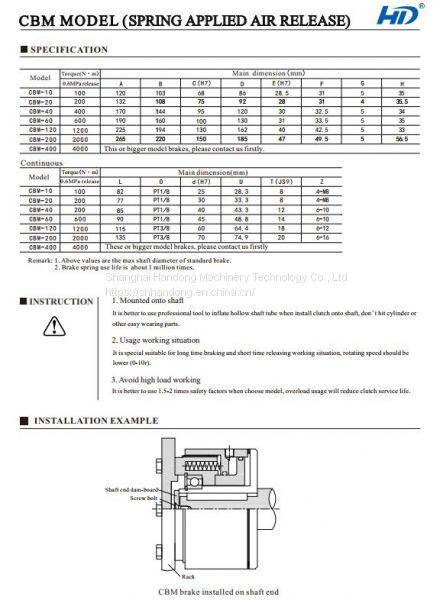

This is a new type of tooth and tooth brake, it is suitable for slow or standstill connecting, fast rotating. Following is the technical data of this brake for your reference:
As above table, we can see that this pneumatic tooth brake is also shaft installation, its bore size is 25-70mm available. CBM brake is a compact size while generate high braking force, it is used for delivery of low-speed motive power, crusher, conveyor, automated machine and etc.
