CX two modulars pneumatic friction brake DBK20.2
DBK250 model combiflex pneumatic friction brake is a caliper disc brake with fan. It is consist of some pieces of DBK10 or DBK20 together. It is good for heat dissipation, and the turbine disc design can reduce heat during rotating, so as to prolong braking pads and brake usage life span. For this DBK20.2 brake, it is composed of two modulars brake together.

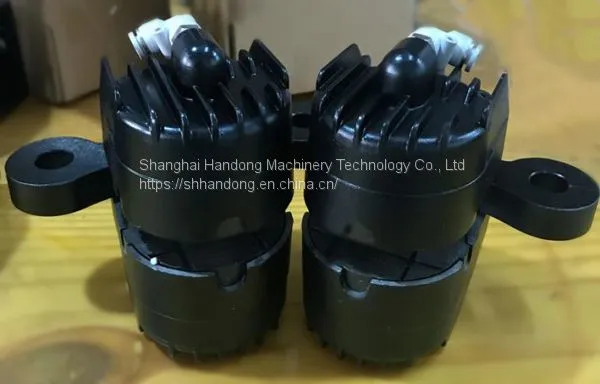

DBK20.2 is two of braking modulars of combiflex fan cooled pneumatic brake, it can be replaced independently and easily if friction pads worn. Its caliper disc brake, friction lining clamp braking disc after supplying air pressure, brake released after exhausting air pressure.
Following is the structure and technical data of this modular brake:
DBK10 and DBK20 are both friction caliper disc brake, so they are used to clamp steel plate for stopping. Their installation is very easy, fixed four installation holes via screws on the workplate is done. They are suitable for braking steel disk diameter is more than 250mm, it is the same with integrated structure DBK250.
