Popular applied negative tooth brake for automatic working line
- 200 Set / Sets per Month
- Shanghai
- T/T L/C Credit Card Other Cash
- CX250 fan cool combiflex pneumatic brake
- Equal RE CX300 large torque integrated structure pneumatic brake
- Pneumatic fan cool multi-disc caliper disc brake
- Pneumatic multiple modulars caliper disc brake for tension control
- Niika DBR256 airr friction brake for corrugated board roll stands
- CX single modular pneumatic brake DBK10
Product Details
Brand Name: | Handong HD | Place of Origin: | China | Model Number: | CBM-10, CBM-20, CBM-40, CBM-60, CBM-120, CBM-200, CBM-400 |
Product Description

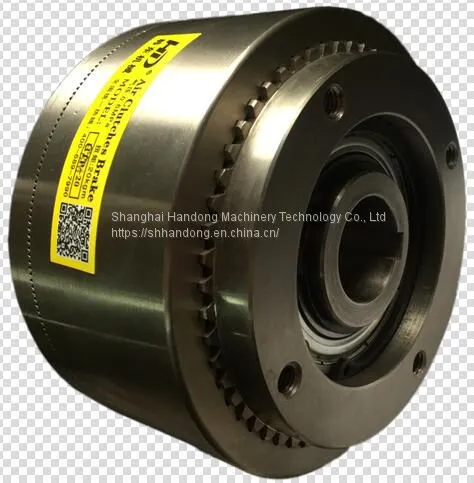

Popular applied negative tooth brake for automatic working line
This CBM pneumatic tooth brake is popular used in mechanical joint part for braking. As it is joint part, it can't bear much load, so brake lighter will be better. Considering this character, our Handong make an update of this brake, we changed steel material to space aluminum material, reduce its weight while increase its working function.
Handong is a professional manufacturer of this pneumatic clutch and brake, we have our R & D team, standard produce schedule, quality test person, dispatch department and after-sales group. So we can make sure each products made to satisfy customer's requirement.
CBM Air shaft normal braking tooth brake is also a type of spring applied air release brake. It is braked via springs, and released via inputting air pressure. With this character, so this spring engagement brake is usually used in mechanical arm, robot joint or arthrosis for joint part braking. Especially out compact brakes can be very precisely positioned and are highly weight-optimized and energy-efficient at the same time.
CBM tooth and tooth brake working thoery is similar with HABB spring engagement brake. Normally, braking springs compressed piston end tooth and hollow shaft tube end tooth, brake is in braking status. After supplying air pressure, piston moves towards to and compresses braking springs in the direction of fixed base spline, both ends of tooth separated, brake released.
CBM normal braking brake is popular used in filling machines, agricultural machines, robotics, container cranes, food technology, ropeways, printing machines, aerospace, textile machines, handling system, robot arm, mechanical arm, joint, arthrosis, aerospace, entry control, marine, packaging machines, extruders, medical technology, wind turbines, amusement rides, mobile machine, machine tools, handling system, test benches, fast-tool application, hybrid systems, pumps and compressors and so on.
In this case, CBM pneumatic spring engaged brake is used in manipulator arm. Normally, this brake is braked, so this working arm is fixed for orientation, when it needs to make manipulator arm moving, supplying air pressure into brake's air chamber, brake release, so this robot arm moving left and right as program set.
