Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > YW Submersible Sewage Not Clogging Centrifugal Pump
YW Submersible Sewage Not Clogging Centrifugal Pump
US$ 650 - 10000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
kenshine-pump
Place of Origin:
China
Model Number:
YW50-20-7-0.75
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
JPWQ,JYWQ Submersible Sewage Pump With Automatic AgitatorUS$ 650 - 10000MOQ: 1 Set -
AS/AV Submersible Sewage Pump With Shred DeviceUS$ 300 - 6000MOQ: 1 Set
-
WQK, Submersible Sewage Pump With Cutting ImpellerUS$ 300 - 6000MOQ: 1 Set
-
QJ,QJP Deep Well Submersible Pump Submersible Multistage PumpUS$ 500 - 6000MOQ: 1 Unit
-
WQB Submersible Sewage Pump Explosion Proof Slurry PumpUS$ 650 - 10000MOQ: 1 Set
Brand Name
kenshine-pump
Place of Origin
China
Model Number
YW50-20-7-0.75
Application
Other, wastewater transfer
Fuel
Other, electric motor
Power
Electric
Usage
Water
Theory
Centrifugal Pump
Standard or Nonstandard
Standard
Structure
Other, submersible vertical
Pressure
Low Pressure
1.YW non-clogging vertical sewage pump waste water submerged pump is used to drain dirty water, waste water, rainwater, and living water in cities containing solid grains and various long fabrics.

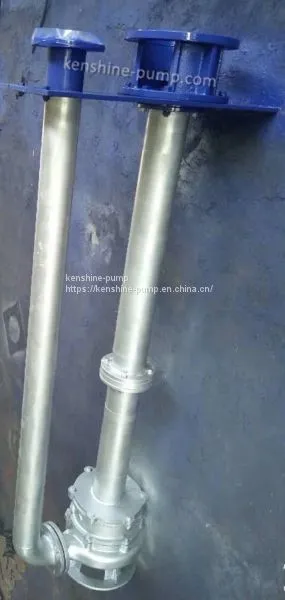

2. It has two models of single pipe and double pipes. Pipes below the fixed plate may be submersible, at least the pump casing at the bottom should be submerged in water.
3. The impeller adopts particular large channel structure, so the drain capacity has been improved greatly.
4. The sewage submerged pump is mainly used for municipal works, industrial buildings, hotels, civil air defense, mines etc. To drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.
| Model | Speed | Power | Efficiency |
| outlet-flow-head | (r/min) | (kw) | (%) |
| (mm)(m3/h)(m) | |||
| 25-8-22-1.1 | 2825 | 1.1 | 38.1 |
| 32-12-15-1.1 | 2825 | 1.1 | 40 |
| 40-15-15-1.5 | 2840 | 1.5 | 42 |
| 40-15-30-2.2 | 2840 | 2.2 | 48 |
| 50-20-7-0.75 | 1390 | 0.75 | 54 |
| 50-10-10-0.75 | 1390 | 0.75 | 56 |
| 50-20-15-1.5 | 2840 | 1.5 | 55 |
| 50-15-25-2.2 | 2840 | 2.2 | 56 |
| 50-18-30-3 | 2880 | 3 | 58 |
| 50-25-32-5.5 | 2900 | 5.5 | 53 |
| 50-20-40-7.5 | 2900 | 7.5 | 55 |
| 65-25-15-2.2 | 2840 | 2.2 | 52 |
| 65-37-13-3 | 2880 | 3 | 55 |
| 65-25-30-4 | 2890 | 4 | 58 |
| 65-30-40-7.5 | 2900 | 7.5 | 56 |
| 65-35-50-11 | 2930 | 11 | 60 |
| 65-35-60-15 | 2930 | 15 | 63 |
| 80-40-7-2.2 | 1420 | 2.2 | 52 |
| 80-43-13-3 | 2880 | 3 | 50 |
| 80-40-15-4 | 2890 | 4 | 57 |
| 80-65-25-7.5 | 2900 | 7.5 | 56 |
| 100-80-10-4 | 1440 | 4 | 62 |
| 100-110-10-5.5 | 1440 | 5.5 | 66 |
| 100-100-15-7.5 | 1440 | 7.5 | 67 |
| 100-85-20-7.5 | 1440 | 7.5 | 68 |
| 100-100-25-11 | 1460 | 11 | 65 |
| 100-100-30-15 | 1460 | 15 | 66 |
| 100-100-35-18.5 | 1470 | 18.5 | 65 |
| 125-130-15-11 | 1460 | 11 | 62 |
| 125-130-20-15 | 1460 | 15 | 63 |
| 150-145-9-7.5 | 1440 | 7.5 | 63 |
| 150-180-15-15 | 1460 | 15 | 65 |
| 150-180-20-18.5 | 1470 | 18.5 | 75 |
| 150-180-25-22 | 1470 | 22 | 76 |
| 150-130-30-22 | 1470 | 22 | 75 |
| 150-180-30-30 | 1470 | 30 | 73 |
| 150-200-30-37 | 1480 | 37 | 70 |
| 200-300-7-11 | 970 | 11 | 73 |
| 200-250-11-15 | 970 | 15 | 74 |
| 200-400-10-22 | 1470 | 22 | 76 |
| 200-400-13-30 | 1470 | 30 | 73 |
| 200-250-15-18.5 | 1470 | 18.5 | 72 |
| 200-300-15-22 | 1470 | 22 | 73 |
| 200-250-22-30 | 1470 | 30 | 71 |
| 200-350-25-37 | 1480 | 37 | 75 |
| 200-400-30-55 | 1480 | 55 | 70 |
| 200-350-40-75 | 980 | 75 | 70 |
| 250-600-9-30 | 980 | 30 | 74 |
| 250-600-12-37 | 1480 | 37 | 78 |
| 250-600-15-45 | 1480 | 45 | 75 |
| 250-600-20-55 | 1480 | 55 | 73 |
| 250-600-25-75 | 1480 | 75 | 73 |
| 250-800-12-45 | 1480 | 45 | 76 |
| 300-500-15-45 | 980 | 45 | 70 |
| 300-800-15-55 | 980 | 55 | 73 |
| 300-600-20-55 | 680 | 55 | 75 |
| 300-800-20-75 | 980 | 75 | 78 |
| 300-950-20-90 | 980 | 90 | 80 |
| 300-1000-25-110 | 980 | 110 | 82 |
| 350-1100-10-55 | 980 | 55 | 84.5 |
| 350-1500-15-90 | 980 | 90 | 82.5 |
| 350-1200-18-90 | 980 | 90 | 83.1 |
| 350-1100-28-132 | 740 | 132 | 86.2 |
| 350-1000-36-160 | 740 | 160 | 78.5 |
| 400-1500-10-75 | 980 | 75 | 82.1 |
| 400-2000-15-132 | 740 | 132 | 85.5 |
| 400-1700-22-160 | 740 | 160 | 82.1 |
| 400-1500-26-160 | 740 | 160 | 86.5 |
| 400-1700-30-200 | 740 | 200 | 83.5 |
| 400-1800-32-250 | 740 | 250 | 82.1 |
| 400-1760-7.5-55 | 540 | 55 | 82.1 |
| 500-2500-10-110 | 740 | 110 | 82 |
| 500-2600-15-160 | 740 | 160 | 83 |
