1KV electric cable easy Tap Insulation Piercing Connectors puncture clamp
Description
Insulation Piercing Connector is used to achieve contact by piercing the insulation of the LV ABC wire of the main distribution line and the insulated copper or aluminum wire of the network cable. Insulation Piercing Connector IPC is manufactured in such a way that it is capable of connecting LV ABC and network connection conductors, whether it is an aluminum conductor or a copper conductor. The elastomeric insert eliminates bimetallic corrosion because it prevents moisture from reaching the point of contact. Contacts are protected by electrical contact grease.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned, Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip glavanized steel, 8.8 grade
Washer, Nut: Hot dip glavanized steel
Fuse nut: Zinc alloy
Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer
| Models | PCT13C 185/35 |
| Main Line(mm2) | 50-185 |
| Service Line (mm2) | 6-35 |
| Bolt No. | 1 |
| Torque (Nm) | 17NM |
| Remarks | ISO to ISO |

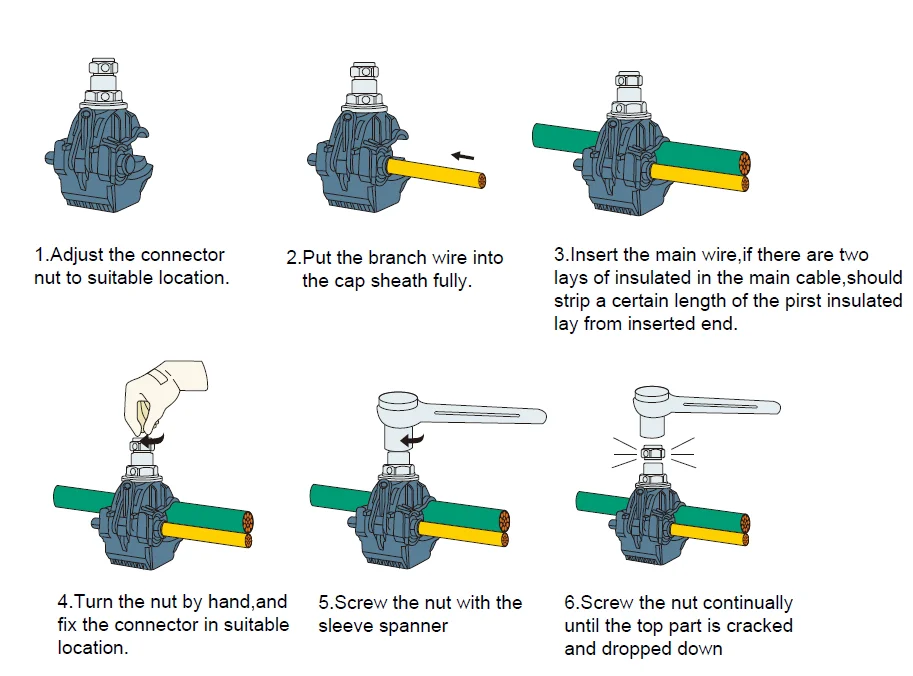

Installation diagram
