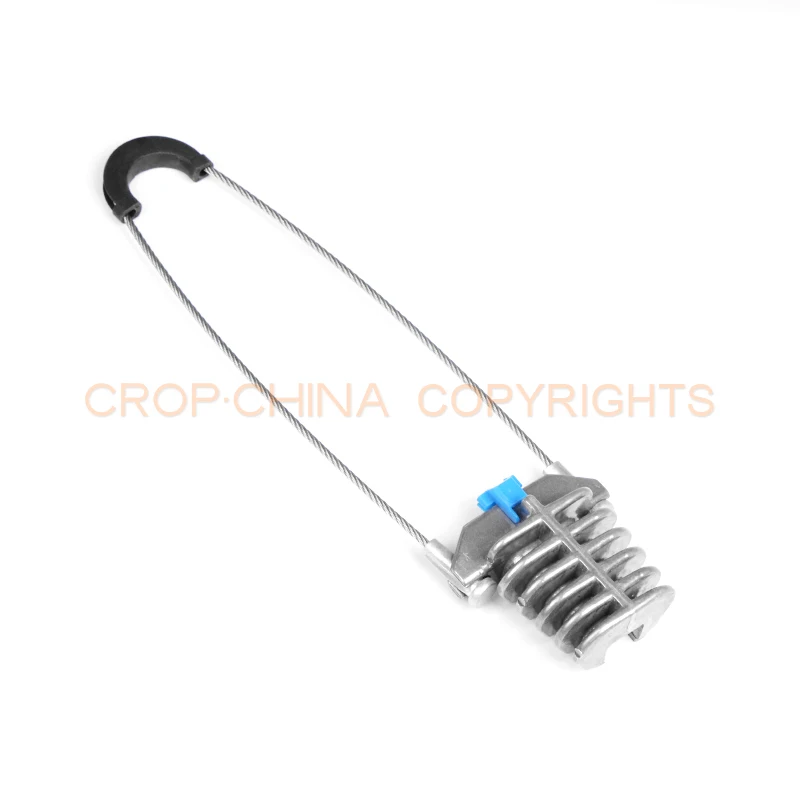

PA-07 Type ADSS Cable Small Compression Dead End Clamp
US$ 0.99 - 7.99
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
CROP
Place of Origin:
China
Model Number:
PA-07
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
7 days
Related Products
-
PA-01 Wedge Anchor Self-Adjusting Insulated Tension Clamp for Aerial ADSS CableUS$ 0.99 - 7.99MOQ: 500 Pieces -
PA Series 8-shaped Cable Aluminum Alloy Anchor ClampUS$ 0.99 - 7.99MOQ: 500 Pieces
-
PA-69 Plastic Anchoring Clamps for Figure-8 Cables,FRP WireUS$ 0.99 - 7.99MOQ: 500 Pieces
-
PA35 PA57 PA69 Anchor Dead End Clamp for Self Support ABC CableUS$ 0.99 - 7.99MOQ: 500 Pieces
-
Special Sizes Adjustable Stainless Steel Banding for Pole and Fix Tension ClampUS$ 0.4 - 0.9MOQ: 600 Meters
Brand Name
CROP
Place of Origin
China
Model Number
PA-07
Material
Other, See Description
Type
Other
PA-07 Type ADSS Cable small compression dead end clamp
Description
For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.

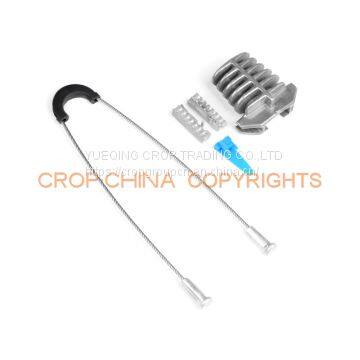

All the parts secured together.
Standard: NFC33-042.
Material
Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).
Features
A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.
| Models | APA-25-* | APA-25-*-500 | APA-50-* | APA-50-*-500 |
| Cable Diameter(mm) | 3~7 | 3~7 | 6~10 | 6~10 |
| Min Tension (daN) | 700 | 700 | 1000 | 1000 |
| L(mm) | 210 | 500 | 210 | 500 |
(*)Add "FA" mean steel rope, add "SS" mean stainless steel rope

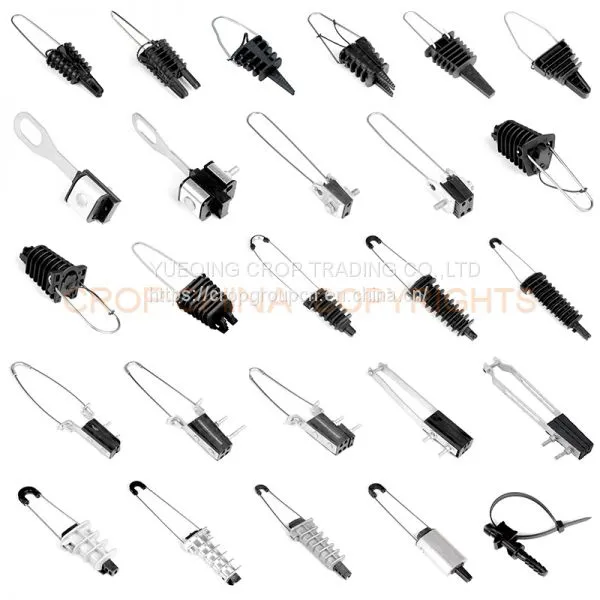

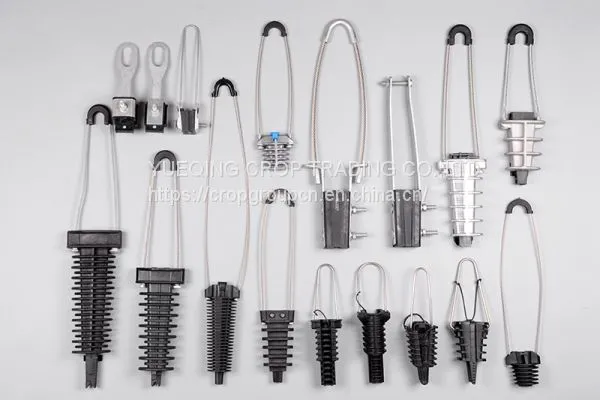

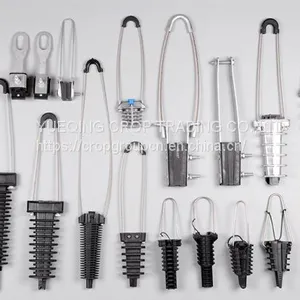

Many Kinds of Tension Clamps
Bracket & Accessories
