PA series 8-shaped cable aluminum alloy Anchor Clamp
Description

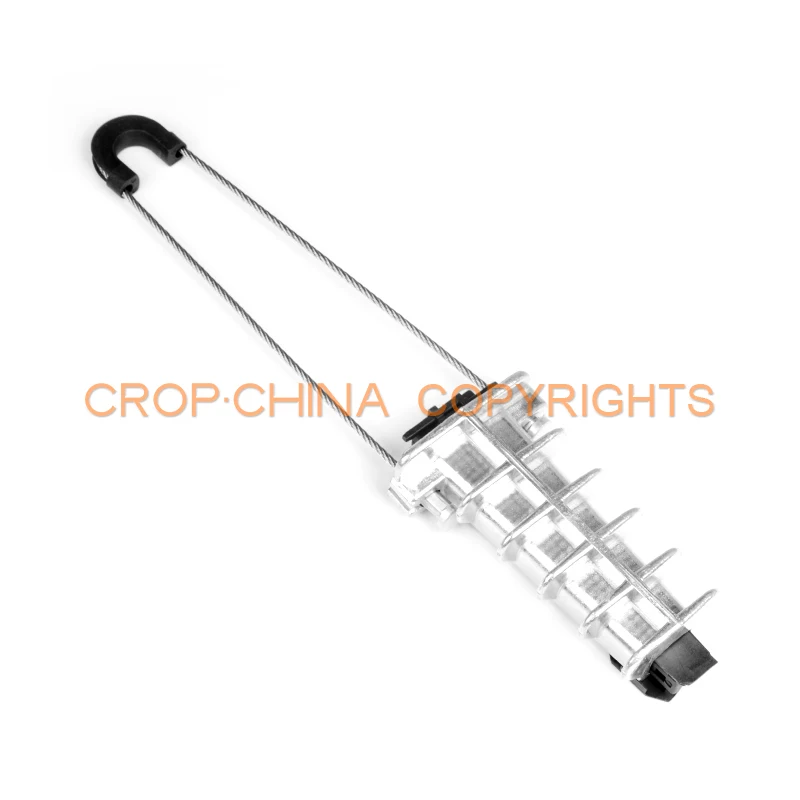

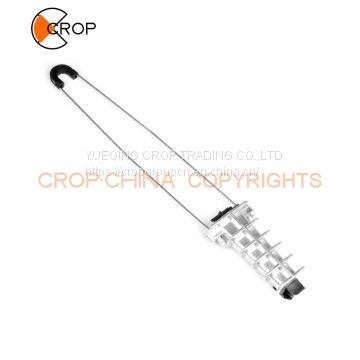

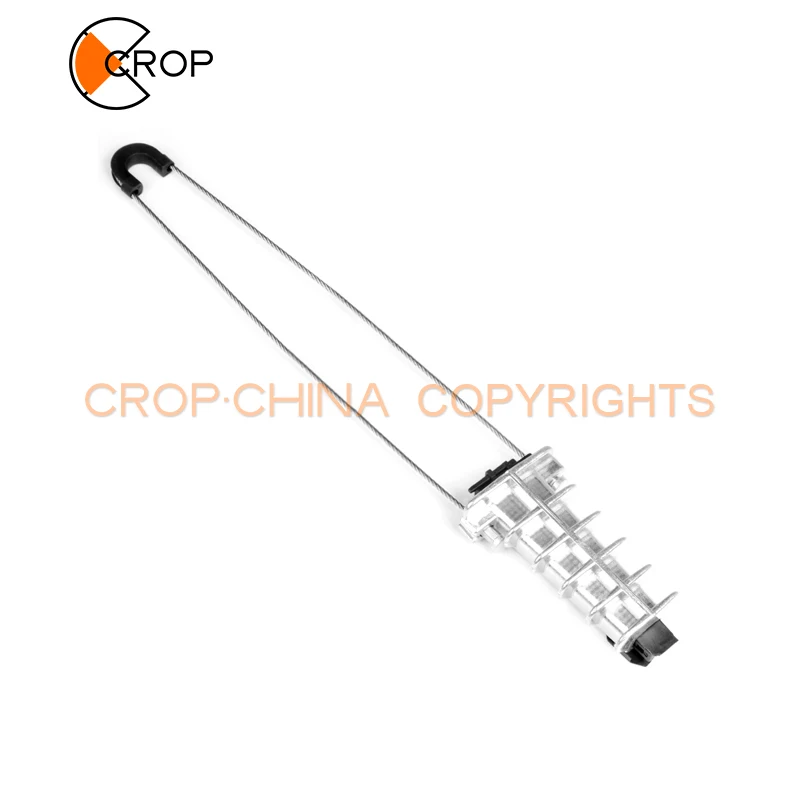

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.
One core Anchor clamps are design to supporting the neutural messenger,the wedge can be self-adjusting.Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Standard: NFC 33-041.
Material
Clamp made of weather and UV resistant polymer
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS)
Features
Tool free installation with wedges sliding inside the body
Easy to open bail permits fixing to brackets and pigtails
Adjustable length of bail in three steps
| Models | 1AN70.95.* |
| Cable range (mm2) | 70-95 |
| Cable diameter(mm) | 14 ~ 16 |
| Core No. | 1 |
| MBL (daN) | 1500 |
*Add "FA" mean steel rope, add "SS" mean stainless steel rope
If you want to know about other products, please contact us...
Website: /
/
FAQ
Q1: Why choose CROP?
*1. CROP is a professional manfacture-Exporter of wide range of accessories used in power line installation and equipment building industries.
*2. CROP has certification, such asCE, ISO, ROHS and so on.
*3. We always follow the principle of the supremacy of customers, providing customers with high-quality products and great service.
Q2: How will you do OEM?
We support customized. If you want to customized,pls supply the Drawing or Photo or Samples.
Q3: What's the MOQ for CROP product?
There is no MOQ, we deal with any quantity of your order.
Q4: Can I have a sample order?
Yes, we can provide you sample for free.
Q5: What's the payment term?
T/T, L/C, Western Union and paypal.
