PA35 PA57 PA69 Anchor Dead End Clamp for Self Support ABC Cable
US$ 0.99 - 7.99
/ Piece
500 Pieces(Min. Order)
- ningbo
- T/T L/C PayPal Other
- 7 days
You May Like
-
2-95 Waterproof Insulation Piercing Connector ABC Cable Connector Low Voltage
-
PG Clamp Parallel Groove Connector Aluminum Wire Clamp for Overhead Line ABC Cable
-
Suspension Cable Connector Helical Preformed Guy Grip Dead End Wire Clamp for Stay Wire Construction
-
Aluminum Alloy Preformed Tension Clamp Dead End Guy Grip for ADSS Cable
-
High Quality Preformed Guy Grip Wire Suspension Clamp for Fiber Optic Cable ADSS Type
-
Manufacturer Overhead Line Cable Fittings Dead End Guy Grip ADSS Preformed Suspension Clamp
Product Details
| Brand Name | CROP | Place of Origin | China | |
| Model Number | PA35 PA57 PA69 | Material | Other, See Description | |
| Type | Other |
Product Description

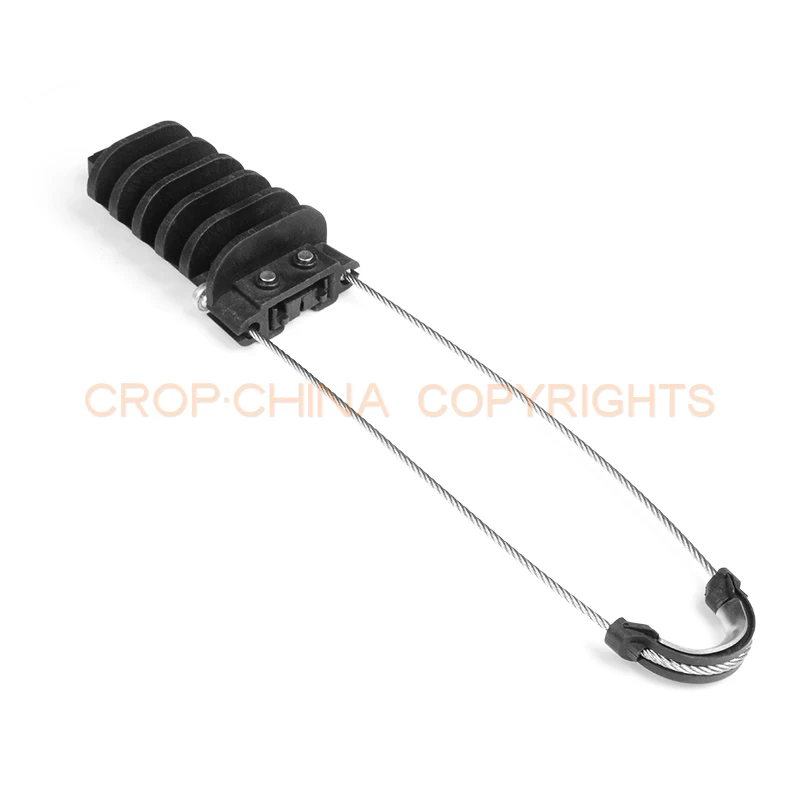

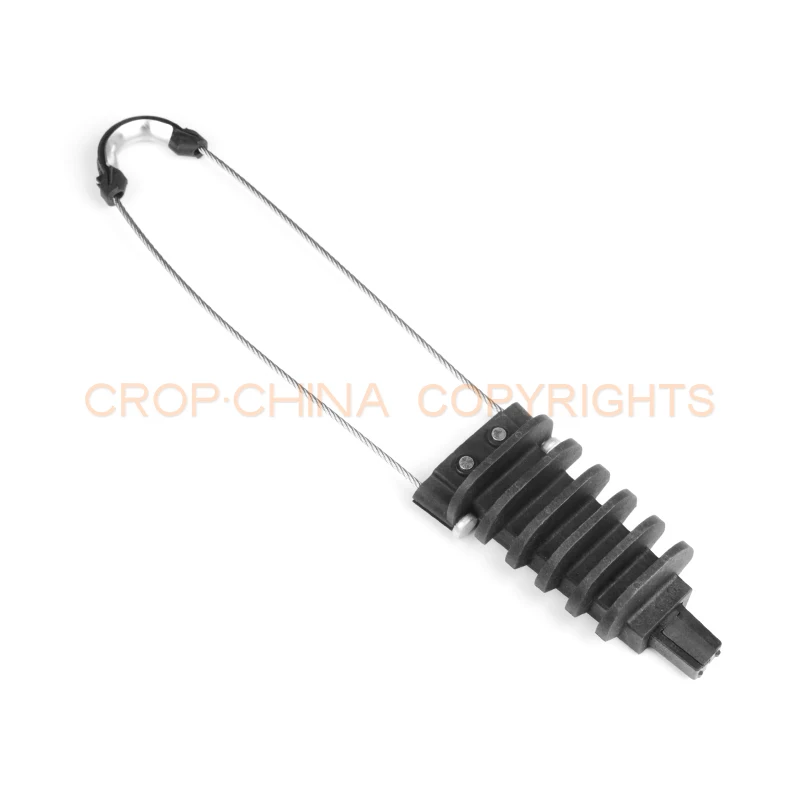

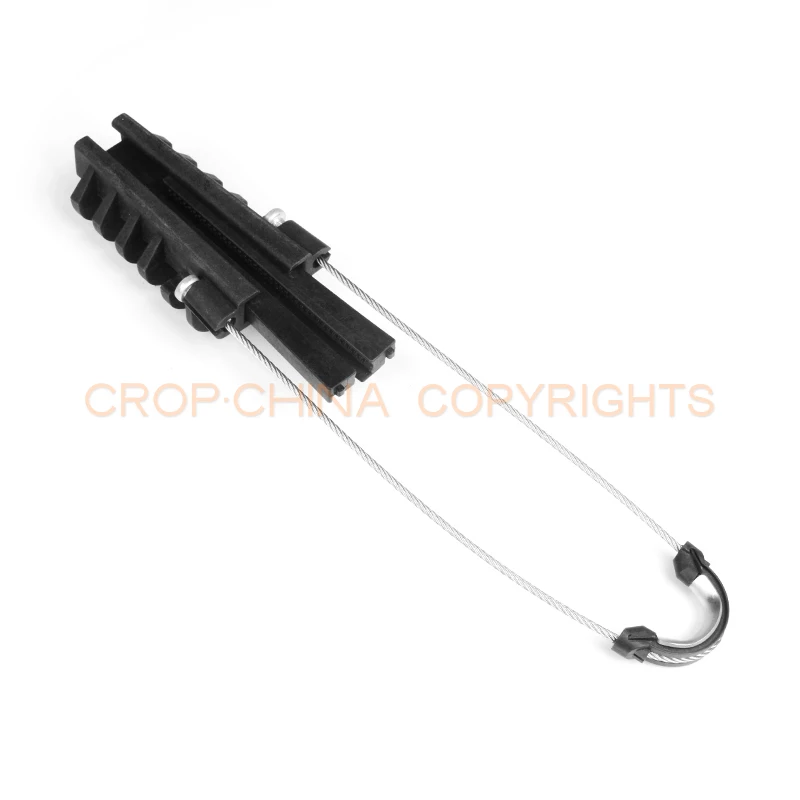

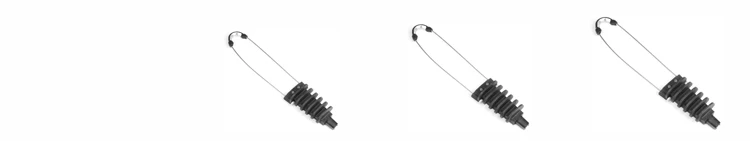

PA35 PA57 PA69 Anchor Dead End Clamp for Self Support ABC Cable
Description
For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.
Material
Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).
Features
A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.
| Models | PA35-S(*) | PA57-S(*) | PA69-S(*) |
| Cable Diameter(mm) | 3~5 | 5~7 | 6~9 |
| L(mm) | 120, 200, 300 | 120, 200, 300 | 120, 200, 300 |
(*)Add L(mm) in models
For messengered Fig-8 cable, AAAC or Steel Fibre glass reinforced resin; Round ADSS
Tensile strength according to the cable
