Cable accessories Electric Waterproof Insulation piercing Connector Puncture clamp
Description
The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned, Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip glavanized steel, 8.8 grade
Washer, Nut: Hot dip glavanized steel
Fuse nut: Zinc alloy
Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer

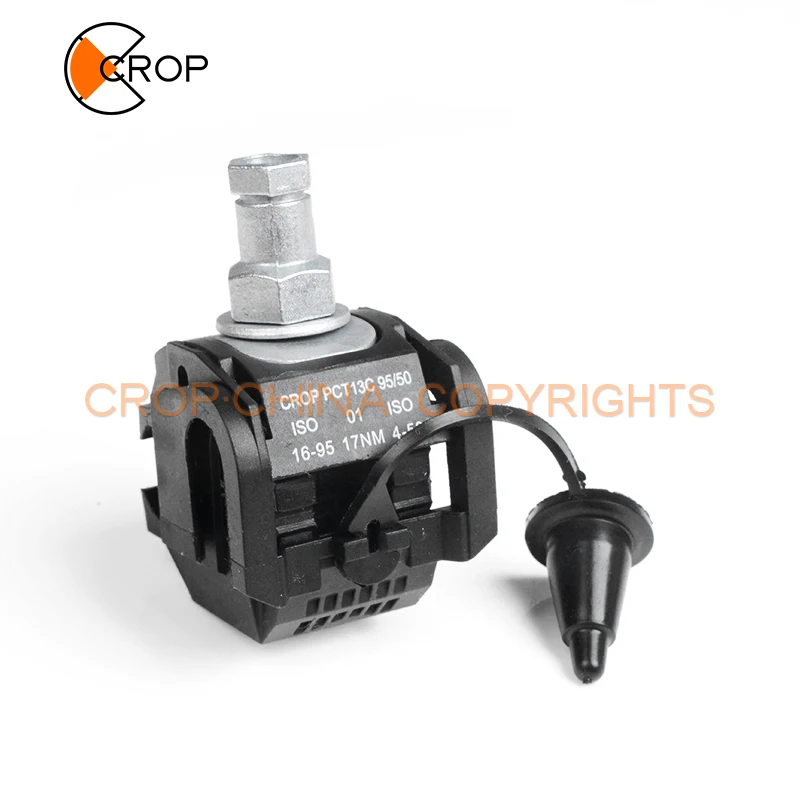

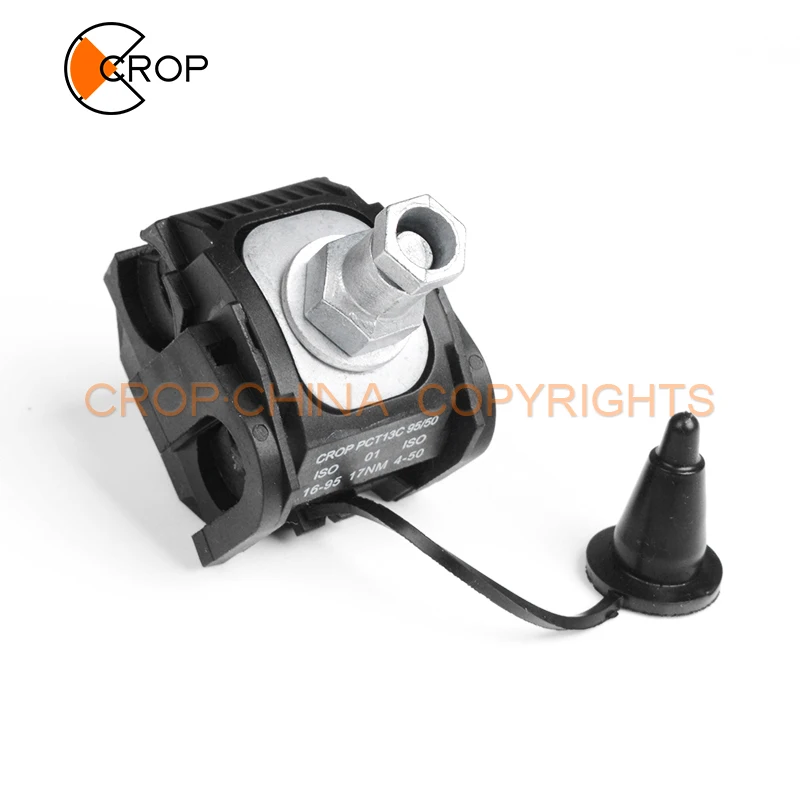

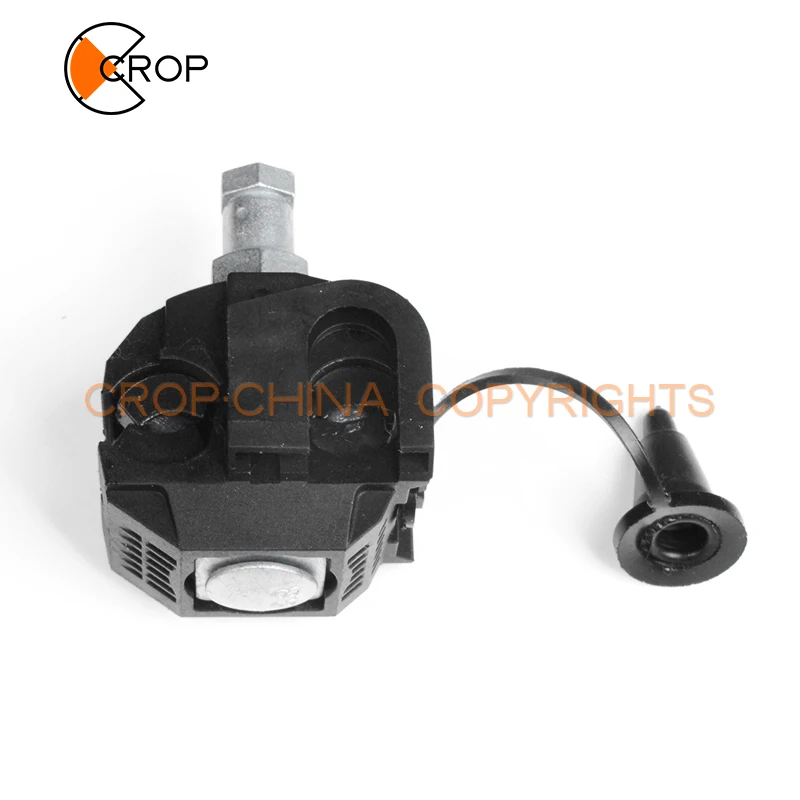

| Models | PCT13C 95/50 | PCT13CB 95/50 |
| Main Line(mm2) | 16-95 | 16-95 |
| Service Line (mm2) | 4-50 | (B) 4-50 |
| Bolt No. | 1 | 1 |
| Torque (Nm) | 17NM | 17NM |
| Remarks | ISO to ISO | ISO to Bare |
Package:
| Pcs/Carton | Gross Weight | Net Weight | Carton Size |
| 120 | 19.5 | 19 | 56.5*29.5*20 |
If you want to know about other products, please contact us...
Website:/
/
FAQ
Q1: Why choose CROP?
*1. CROP is a professional manfacture-Exporter of wide range of accessories used in power line installation and equipment building industries.
*2. CROP has certification, such asCE, ISO, ROHS and so on.
*3. We always follow the principle of the supremacy of customers, providing customers with high-quality products and great service.
Q2: How will you do OEM?
We support customized. If you want to customized,pls supply the Drawing or Photo or Samples.
Q3: What's the MOQ for CROP product?
There is no MOQ, we deal with any quantity of your order.
Q4: Can I have a sample order?
Yes, we can provide you sample for free.
Q5: What's the payment term?
T/T, L/C, Western Union and paypal.
