Low Voltage Electric IPC Insulation Piercing Tap Connector for ABC Cable branch

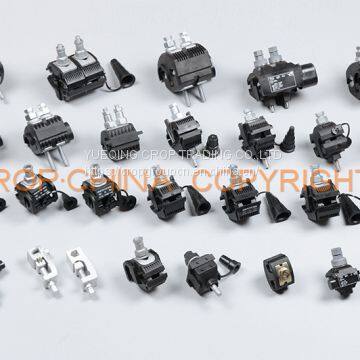

INSULATION PIERCING CONNECTOR
Description
The waterproof insulation piercing connectors are suitable for majority types of LV ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.
Service condition: <1kV, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

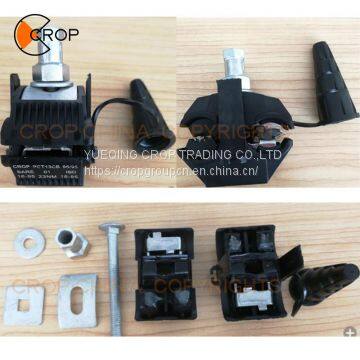

Material
Body: Thermoplastic polyamide 66 with fiberglass
Connecting bridge: Copper tinned, Brass tinned, Al
Sealing parts: Flexible PVC
End cap: Flexible PVC
Grease: Silica gel
Bolt: Hot dip galvanized steel, 8.8 grade
Washer, Nut: Hot dip galvanized steel
Fuse nut: Zinc alloy
Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a water bath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not isolated, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer

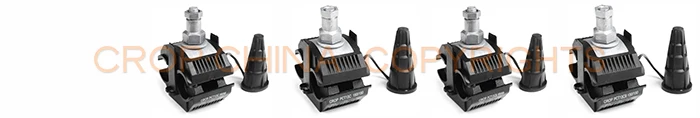

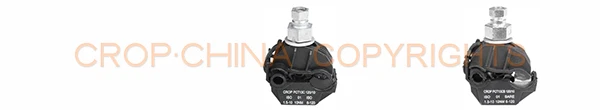

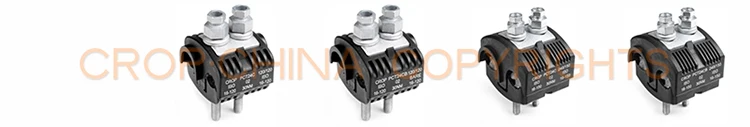

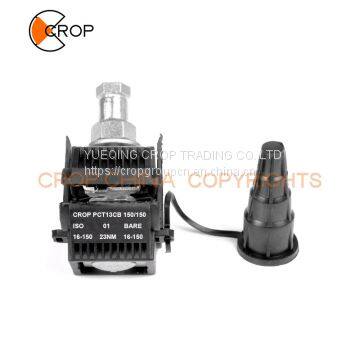

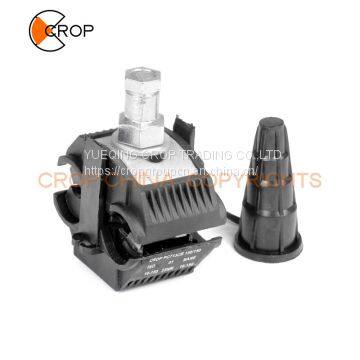

| Models | PCT13C 120/10 | PCT13CB 120/10 |
| Main Line(mm²) | 6-120 | 6-120 |
| Service Line (mm²) | 1.5-10 | (B) 1.5-10 |
| Bolt No. | 1 | 1 |
| Torque (Nm) | 10NM | 10NM |
| Remarks | ISO to ISO | ISO to Bare |
| Models | PCT13C 70/35 | PCT13C 95/50 | PCT13C 120/25 | PCT13C 150/50 | PCT13C 185/35 | PCT13CB 70/35 | PCT13CB 95/50 |
| Main Line(mm²) | 16-70 | 16-95 | 25-120 | 50-150 | 50-185 | 16-70 | 16-95 |
| Service Line (mm²) | 4-35 | 4-50 | 42911 | 4-50 | 6-35 | (B)4-35 | (B)4-50 |
| Bolt No. | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Torque (Nm) | 15NM | 17NM | 17NM | 17NM | 17NM | 15NM | 17NM |
| Remarks | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO | ISO to ISO | ISO to Bare | ISO to Bare |
| Models | PCT13C 95/95 | PCT13C 150/150 | PCT13CB 95/95 | PCT13CB 150/150 |
| Main Line(mm²) | 16-95 | 16-150 | 16-95 | 16-150 |
| Service Line (mm²) | 16-95 | 16-150 | (B)16-95 | (B)16-150 |
| Bolt No. | 1 | 1 | 1 | 1 |
| Torque (Nm) | 17-23NM | 23NM | 23NM | 23NM |
| Remarks | ISO to ISO | ISO to ISO | ISO to Bare | ISO to Bare |
| Models | PCT24C 120/120 | PCT24CB 120/120 | PCT24C 240/150 | PCT24CB 240/150 |
| Main Line(mm²) | 16-120 | 16-120 | 95-240 | 95-240 |
| Service Line (mm²) | 16-120 | (B)16-120 | 16-150 | (B)16-150 |
| Bolt No. | 2 | 2 | 2 | 2 |
| Torque (Nm) | 22NM | 22NM | 30NM | 30NM |
| Remarks | ISO to ISO | ISO to Bare | ISO to ISO | ISO to Bare |
