PA-01 wedge anchor Self-Adjusting Insulated Tension Clamp for aerial ADSS cable
Description

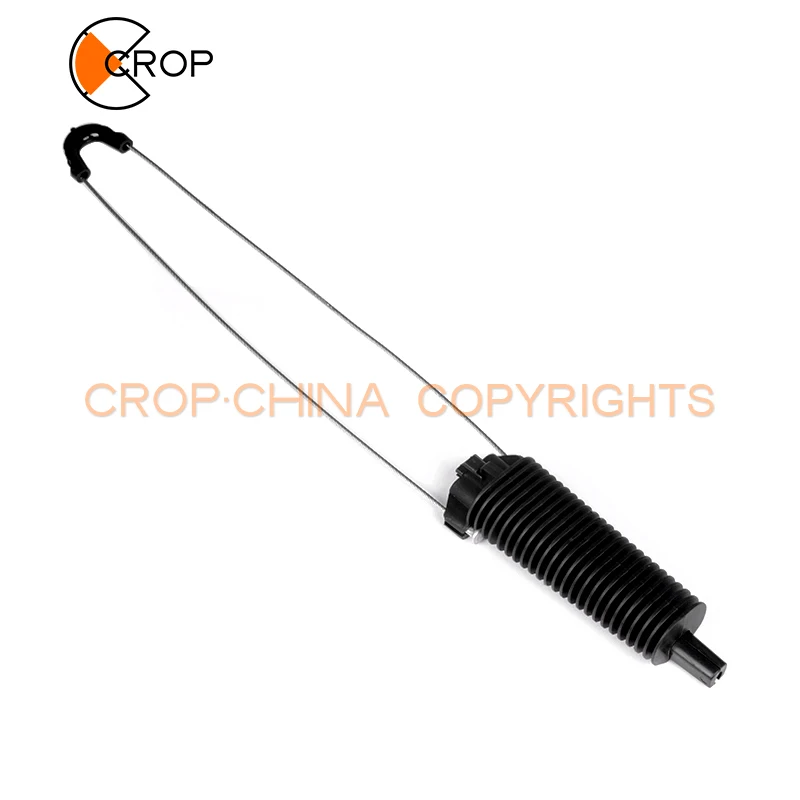

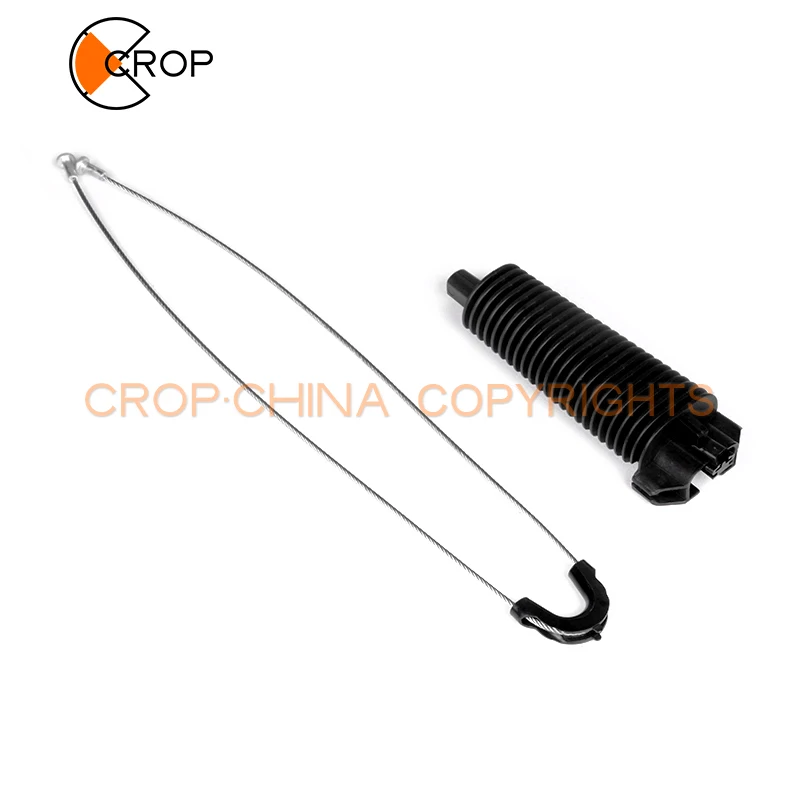

The anchor clamp is designed to anchor insulated main line with 4 conductors to the Pole, or service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.
One core Anchor clamps are design to supporting the neutral messenger, the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp.
Standard: NFC 33-041.
Material

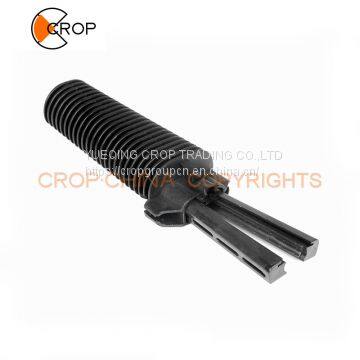

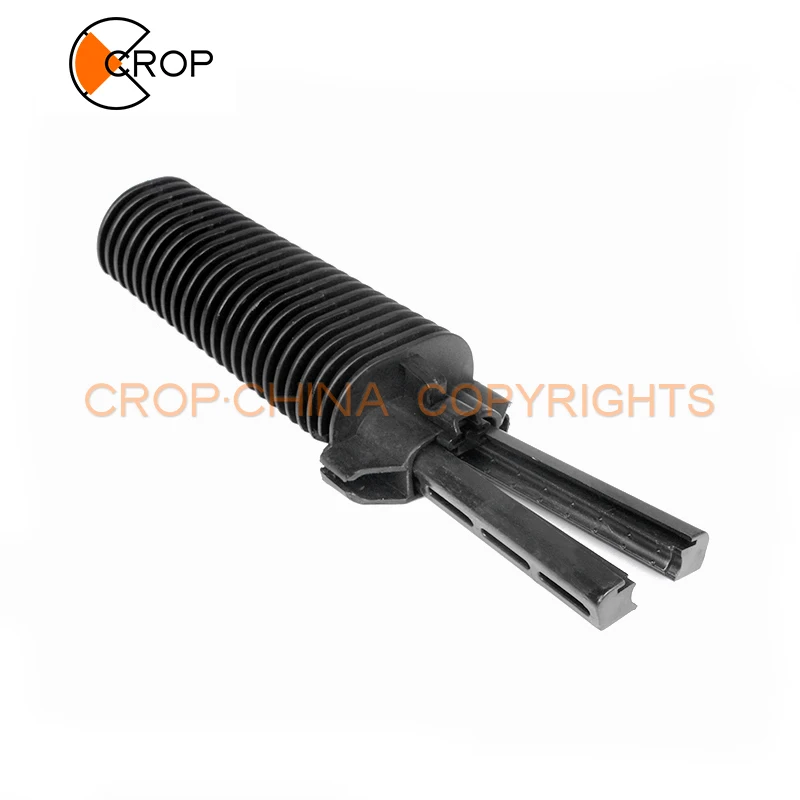

Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).
Features
Tool free installation with wedges sliding inside the body.
Easy to open bail permits fixing to brackets and pigtails.
Adjustable length of bail in three steps.
| Models | PA-01 |
| Cable Diameter (mm) | 8~10 |
| Min Tension (daN) | 500 |
| L(mm) | 400 |
(*)Add "FA" mean steel rope, add "SS" mean stainless steel rope
For messengered Fig-8 cable, AAAC or Steel Fibre glass reinforced resin; Round ADSS
*Z=Zinc Alloy Wedge
Tension Clamp is apply to the termination of the bundle assembled aerial cable or the two ends between poles .It is according to the some of the cable cores, four cores, two cores, installation without stripping the insulation layer, the adoption of the tight structure, tight fixed well, and get the better grip strength .
Many Kinds of Tension Clamps
