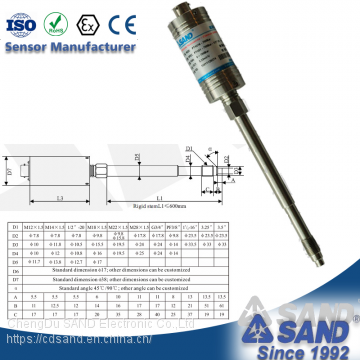

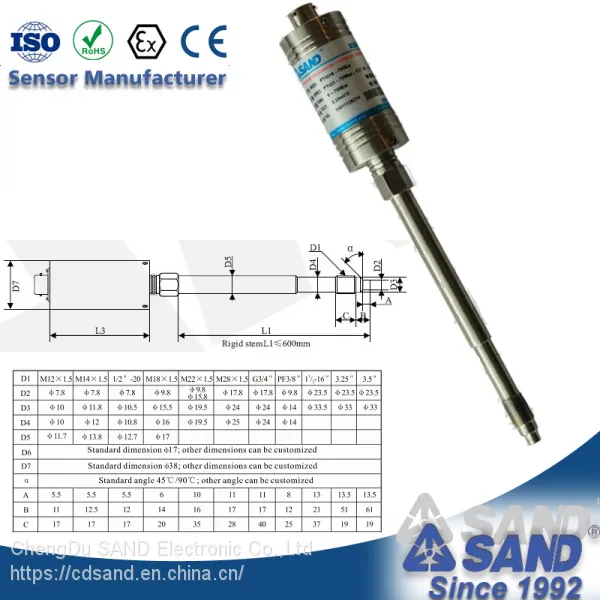

Help Center2.0mv/v 3.33mv/v Pressure Sensors for Non-woven Machines
Related Products
-
SAND PT124-35MPA-M14-150/370US$ 100 - 300MOQ: 1 Piece -
550℃ Ultra High Temperature Pressure SensorUS$ 200 - 400MOQ: 1 Piece
-
PT612-M14 Melt Pressure Transducer With CE CertificationUS$ 140 - 300MOQ: 1 Piece
-
PT131-50MPA-M14-K SAND Pressure TransmitterUS$ 170 - 300MOQ: 1 Piece
-
PTF124B Explosion-proof Type Melt Pressure TransmitteUS$ 240 - 375MOQ: 1 Piece
· 5 Year warranty (First year is free to repair,other 4 year is chargeable)
· OEM service available (Products supplied without any logo,you could put your own logo on it)
· Technical support (We are available to solve any problems you have on sensors and instruments any time)
Introduction
This series high-temperature melt pressure sensor / transmitter are mainly used in conventional for
measurement of high temperature melt pressure. They are widly used in petrochemical industry, chemical fiber textile, plastics and rubber industries, new materials and other industries, with advantage of high accuracy, stable, big output, strong dynamic performance advantages, good generality etc.
Model Description
| Pressure Transducer | Pressure Transmitter | |
| Rigid Stem Type |
PT111，PT1116 | PT111B，PT1116B |
| Flexible Stem type |
PT123，PT1236 PT124，PT1246 PT127，PT1276 |
PT123B，PT1236B PT124B，PT1246B PT127B，PT1276B |

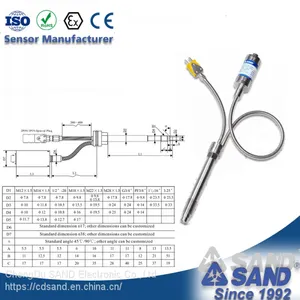

| Pressure and Temperature Dual Ability Type |
PT131，PT1316 | PT131B，PT1316B |
Performance indicators1 A variety of connectors to facilitate the user to select 5PIN or 6PIN;

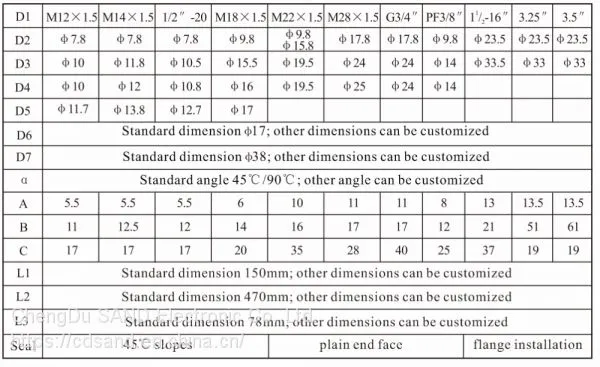

2 1/2 "-20, M14 x 1.5, M22 x 1.5, G3 / 4" A variety of mounting dimensions to facilitate the user to select;
3 Accuracy: ± 0.5% FS, ± 1.0% FS (default);
4 Output signal: Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V; Pressure transmitter: 1 ~ 5V, 0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA;
5 Temperature drift: ≤ 0.3MPa/100 ℃;
6 Probe Max Temperature: 300 ℃ or 400 ℃;
7 corrosion resistant coating to extend the service life of 3 to 5 times; (optional)
8 Thermometric Config:
Thermocouple: E, J, K type, etc.,
Thermal Resistance: Pt100 etc. (Optional)

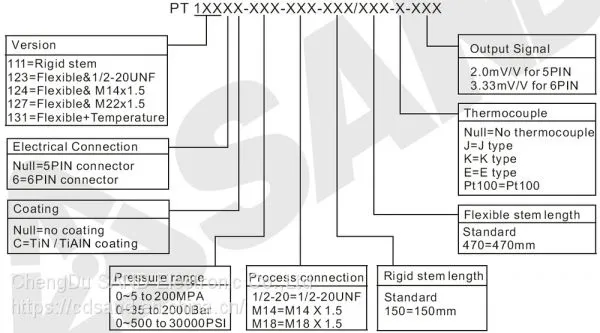

Oder Format
