[High Accuracy Low Tempreture Drift Type]melt pressure transducer PT4516

Introduction
This series pressure transducer/ pressure transmitter is ideal for measurement of melt pressure. We produced them with special materials alloy elastic membrance together with delicated maching and debugging. It has advantage of high accuracy and low temperature drift in practice, Its performance characteristics are the same with world's toppest products.



Model Description

	Pressure Sensor	Pressure Transmitter

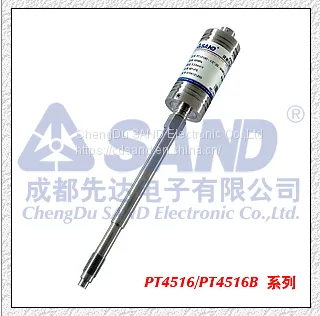

Rigid Stem Type	PT4516	PT4516B

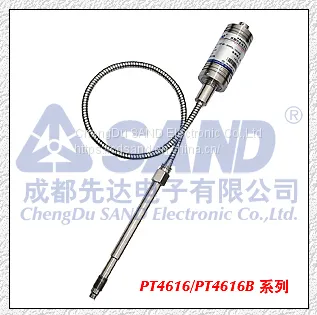

Flexible Stem Type	PT4616	PT4616B
Pressure & Temperature Dual Ability Type	PT4626	PT4626B

Performance indicators
1  High accuracy: ± 0.25% FS, ± 0.5% FS ;
2  Low temperature drift: ≤ 0.15MPa/100 ℃;
3  Output signal:
     Pressure transducer: 3.0mV / V, 3.33mV / V ; Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;
4  Probe max temperature: 300 ℃ or400 ℃;
5  6PIN mating connectors, more reliable and stable;
6  Stainless steel shell, beautiful, rugged and durable;
7  Corrosion resistant coating to extend the service life of 3to 5 times; (optional)
8  Temperature Config:
    Thermocouple: E, J, K type, etc.,
    Thermal resistance: Pt100 ect.
