Introduction
This kind of pressure transmitters are explosion-proof and safe type. It is suitable for combustable and explosive high-risk situations. It is up to the mustard of ExiaIIBt6/ExiaIICT6. The transmitters adopt low-power consumption components which coordinate with security wiring design.
Model Description
| Pressure Transmitters | ||
| Rigid Stem Type |
PTF111B，PTF1116B | |
| Flexible Stem Type |
PTF123B，PTF1236B PTF124B，PTF1234B PTF127B，PTF1276B |
|
|
Pressure and Temperature Dual Ability Type |
PTF131B，PTF1316B | |
Performance indicators
1 Intrinsically safe by "ExiaIIBT6" and "ExiaIICT6" explosion-proof certification;
2 Adopting safe circuit design;
3 Stainless steel shell, beautiful rugged and durable;

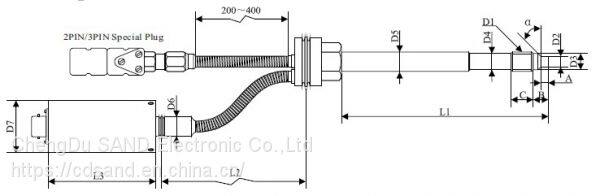

4 1/2 "-20, M14 x 1.5, M18 x 1.5, M20 x 1.5, M22 x 1.5 a variety of mounting dimensions to facilititate the users to select;
5 Accuracy: ± 0.5% FS, ± 1.0% FS (default);
6 Output signal: 0 ~ 5v, 1 ~ 5v, 4 ~ 20mA;
7 Corrosion resistant coating to extend the service life of 3 to 5 times; (optional)
8 Thermometric Config:
Thermocouple: E, J, K type, etc.,
Thermal resistant: Pt100 etc. (Optional)
