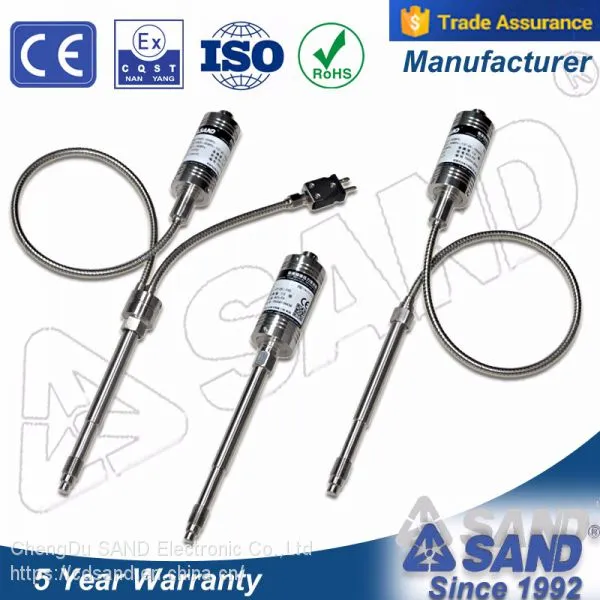

550℃ Ultra high temperature pressure sensor
- 100000 Piece / Pieces per Month
- shenzhen
- T/T L/C PayPal Other
- 10 days
- PT612-M14 Melt Pressure Transducer with CE Certification
- PT131-50MPA-M14-K SAND pressure transmitter
- 0-10V 4-20mA PID pressure controller PS9016-035-205-311
- PTF124B explosion-proof Type Melt Pressure Transmitte
- PTF1316B explosion-proof Type Melt Pressure Transmitte
- RS485 PS9016B PID pressure controller
Product Details
Brand Name: | SAND | Place of Origin: | China | Model Number: | PT3716/PT3816/PT3826 |
Usage: | Pressure Sensor | Theory: | Other, pressure sensor | Output: | Other, pressure sensor |
Product Description
Introduction
This series of products are mainly used for the measurement of high temperature melt pressure. Traditional melt pressure sensor's probe is less than 400 ℃, and this series of sensors adopted special materials and pressure transmitting methods. It has a more scientific construction design. They can also measure very precisely even under 550 ℃ working condition.

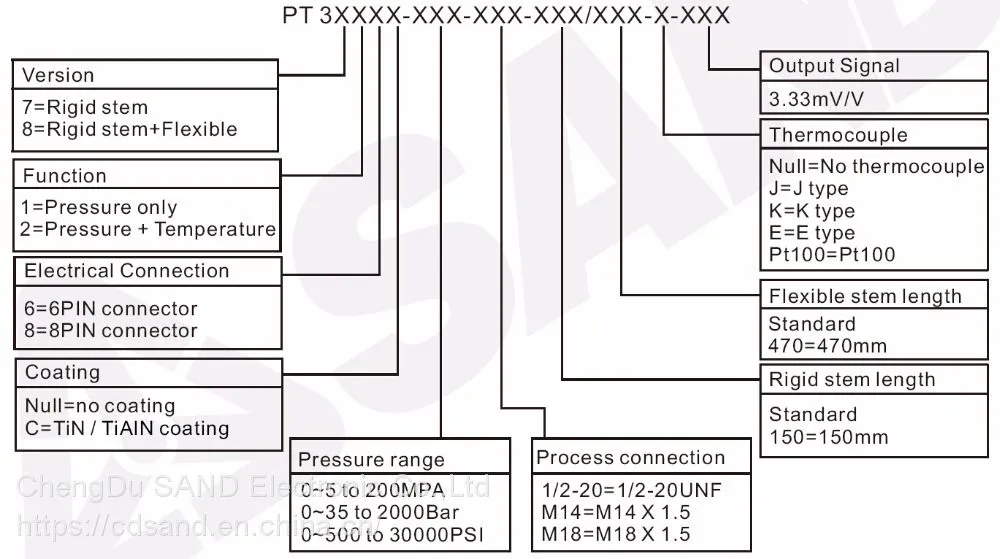

Model Description
PressureTransducer | Pressure Transmitters | |
Rigid Stem Type | PT3716 | PT3716B |
Flexible Stem Type | PT3816 | PT3816B |
Pressure and Temperature Dual Ability Type | PT3826 | PT3826B |
Performance indicators
1 Probe max temperature: 550 ℃;
2 Comply with U.S. FDA standards and the EU ROHS Directive;
3 6 PIN mating connectors, more reliable, more stable;
4 Stainless steel shell, beautiful rugged and durable;
5 Accuracy: ± 0.5% FS, ± 1.0% FS (default);
6 Output signal:
Pressure sensors; 3.33mV / V (default), 3.0mV / V;
Pressure transmitter: 0 ~ 10V, 4 ~ 20mA;
7 Corrosion resistant coating to extend the service life of 3 to 5 times; (optional)
8 Thermometric config:
Thermocouple: E, J, K type, etc.,
Thermal resistance: Pt100 etc. (Optional)
