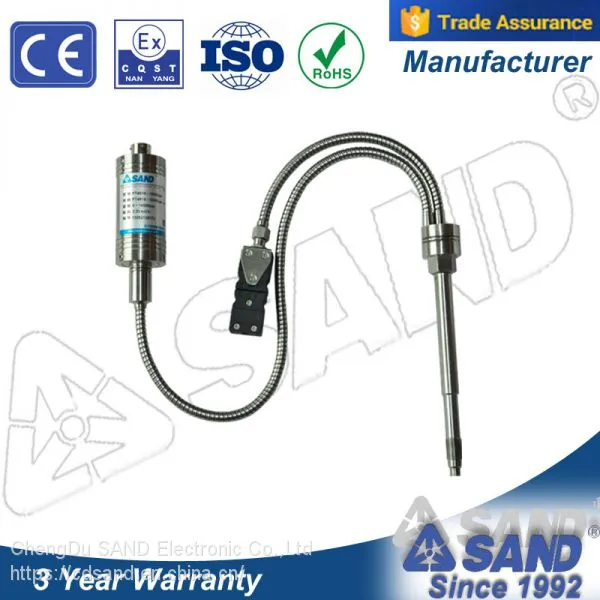

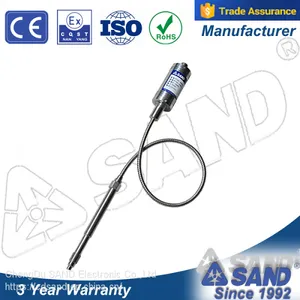

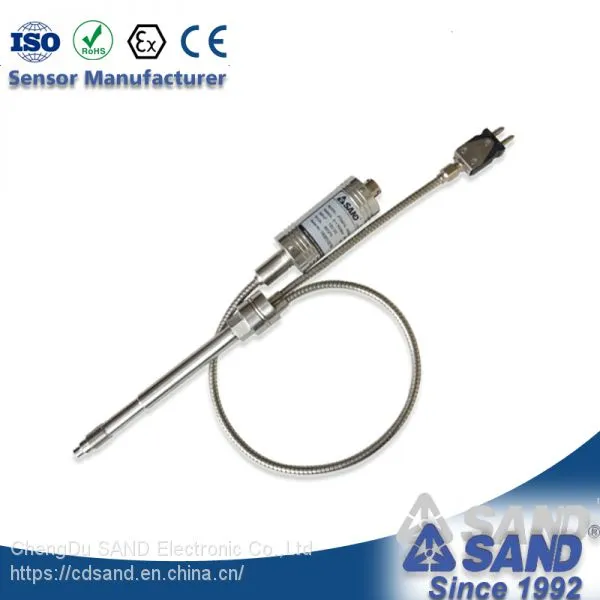

Help CenterPT124B-35mpa Pressure Sensor
Related Products
-
Accuracy 0.5%FS Melt Pressure TransducerUS$ 150 - 400MOQ: 1 Piece -
PT4624 Melt Pressure TransmitterUS$ 200 - 400MOQ: 1 Piece
-
SAND PT4616B-35MPA-1/2-20 Pressure SensorUS$ 180 - 400MOQ: 1 Piece
-
Melt Pressure Transmitter With K Type ThermocoupleUS$ 200 - 500MOQ: 1 Piece
-
0-10V PT4626 Melt Pressure TransmitterUS$ 200 - 400MOQ: 1 Piece
· 5 Year warranty (First year is free to repair,other 4 year is chargeable)
· OEM service available (Products supplied without any logo,you could put your own logo on it)
· Technical support (We are available to solve any problems you have on sensors and instruments any time)
Introduction
This series high-temperature melt pressure sensor / transmitter are mainly used in conventional for
measurement of high temperature melt pressure. They are widly used in petrochemical industry, chemical fiber textile, plastics and rubber industries, new materials and other industries, with advantage of high accuracy, stable, big output, strong dynamic performance advantages, good generality etc.

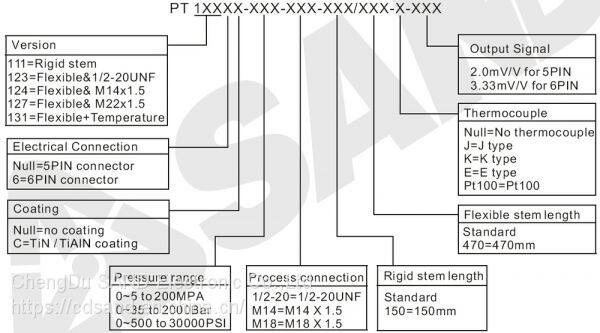

Model Description
| Pressure Transducer | Pressure Transmitter | |
| Rigid Stem Type |
PT111，PT1116 | PT111B，PT1116B |
| Flexible Stem type |
PT123，PT1236 PT124，PT1246 PT127，PT1276 |
PT123B，PT1236B PT124B，PT1246B PT127B，PT1276B |
| Pressure and Temperature Dual Ability Type |
PT131，PT1316 | PT131B，PT1316B |
Performance indicators
1 A variety of connectors to facilitate the user to select 5PIN or 6PIN;
2 1/2 "-20, M14 x 1.5, M22 x 1.5, G3 / 4" A variety of mounting dimensions to facilitate the user to select;
3 Accuracy: ± 0.5% FS, ± 1.0% FS (default);
4 Output signal: Pressure sensors; 2.0mV / V, 3.0mV / V, 3.33mV / V; Pressure transmitter: 1 ~ 5V, 0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA;
5 Temperature drift: ≤ 0.3MPa/100 ℃;
6 Probe Max Temperature: 300 ℃ or 400 ℃;
7 corrosion resistant coating to extend the service life of 3 to 5 times; (optional)
8 Thermometric Config:
Thermocouple: E, J, K type, etc.,
Send Inquiry to This Supplier
