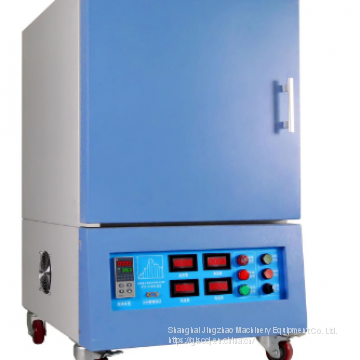

1400 ℃ high temperature furnace

1400℃ high temperature furnace is a new type of electric furnace with high performance and high energy saving, which is developed by our company with international advanced technology. The temperature is controlled automatically in the whole process by a 40-section intelligent program controller.

1400℃ high temperature furnace, high temperature resistant ceramic fiber furnace, intelligent program temperature control

Product features:

1. The furnace adopts Japanese energy-saving technology, which is 30 times more energy-saving than traditional electric furnace;

2. The heating element is high quality silicon carbon rod with large surface load and long service life;

3. Durable vacuum reinforced fiber module with stable double-layer furnace shell structure, equipped with air cooling layer and cooling fan;

4, the top is equipped with a smoke channel, which is convenient for impurities and corrosive gases to discharge, without affecting the service life of the equipment;

5. The heating speed is up to 30℃/min, and 0.5℃/min can be precisely controlled

6. The mechanical life of the button shall not be less than 200,000 times (1200 times/hour)

7. Multi-stage temperature control, programmable, automatic heating, thermal insulation, digital display ammeter;

8, optional no paper recorder, record, storage, display the current or historical temperature curve, can also be transferred to the computer through the U disk.

9. Equipped with intelligent temperature control software to monitor and operate the whole process through the computer;

Series high temperature furnace specification model

Model studio size (mm) D×W×H power

(kw) zui high temperature ℃ rated temperature ℃ heating element voltage heating rate

HY1400 200×150×150 5 1400℃ 1300℃ silicon carbon rod 220V ≤20℃/min

HY1400 300×200×200 7 1400℃ 1300℃ silicon carbon rod 220V ≤20℃/min

HY1400 300×250×250 8 1400℃ 1300℃ silicon carbide 380V ≤20℃/min

HY1400 400×300×300 12 1400℃ 1300℃ silicon carbide 380V ≤20℃/min

HY1400 500×400*400 20 1400℃ 1300℃ silicon carbide 380V ≤20℃/min
